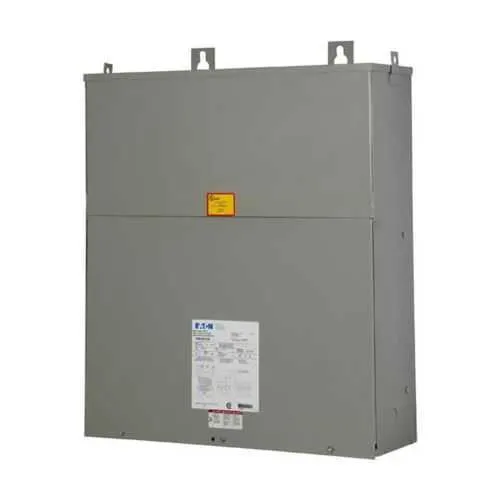

Eaton P60G28T1518CUB Mini-Power Center - UL Listed
Part Number: P60G28T1518CUB
Quick Summary
Eaton P60G28T1518CUB Mini-Power Center delivers compact, reliable 15 kVA three-phase power distribution for industrial control panels. Engineers struggle with space, heat, and regulatory compliance when mounting transformer-based centers in tight environments. UL Listed, CSA Certified, and IEEE/ANSI certified designs provide safety, interoperability, and traceable performance across critical facilities. With a NEMA 3R enclosure, copper windings, and an 18-space configuration, this unit fits rugged spaces while simplifying installation and service. By delivering 600 V to 208Y/120 V distribution, it reduces wiring complexity and downtime, helping you meet code requirements while maintaining efficiency.
Product Information
Extended Description
P60G28T1518CUB Eaton: Eaton Mini-Power center, 15 kVA Mini Power Center 3PH 600V to 208Y/120V Bolt-on breakers, Copper Windings 18 spaces
Product Name
Eaton Mini-Power center
Catalog Number
P60G28T1518CUB
UPC
786680226175
Product Length/Depth
9.4 in
Product Height
26 in
Product Width
28.8 in
Product Weight
320 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NAFTA
Certifications
UL Listed CSA Certified ANSI IEEE Certified
Coil material
Copper
Enclosure
NEMA 3R
Frame
289B
Insulation
180 °C
Mounting
Wall Mount
Tap size
2 at -5% FCBN
Type
Mini-power center
Wiring connection
M60G1H
Frequency rating
60 Hz
kVA
15 kVA
Kva Rating
15 kVA
Phase
Three-phase
Primary voltage
600 V
Secondary Voltage
208Y/120 V
Sound Level
NEMA ST-20
Temperature rise
115 °C rise
Volt ampere rating
15 kVA
Modification 1
NEMA 3R
Weathershield
Not required
Commercial Distribution, Transformers, Volume 2, Tab 2
Eaton's Transformer Flex Center
Eaton Specification Sheet - P60G28T1518CUB
Feature: The P60G28T1518CUB delivers a 15 kVA three-phase transformer with a 600 V primary and 208Y/120 V secondary. Impact: This compact power center reduces panel footprint and simplifies wiring, accelerating installation and reducing field labor costs. Application: machine centers, control panels, and light industrial distributions where space savings directly translate to lower total installed cost. Feature: Copper windings with 180 °C insulation provide robust thermal and electrical performance. Impact: Increased surge tolerance, lower derating risk under startup, and longer service life in demanding environments. Application: harsh manufacturing lines and critical process equipment that require dependable, continuous operation. Feature: NEMA 3R enclosure with 18-space capacity and wall-mount wiring supports versatile installation. Impact: Flexible placement in indoor rooms or protected outdoor spaces, easier retrofits, and simplified service access with bolt-on breakers (M60G1H). Application: panel upgrades in machine shops, warehouses, and control rooms. Feature: Compliance and safety credentials — UL Listed, CSA Certified, ANSI, and IEEE Certified — plus NAFTA alignment and a one-year warranty. Impact: Regulatory assurance, faster approvals, and predictable maintenance planning. Application: projects requiring proven standards compliance for regulated facilities. Feature: Wiring options and tap details — M60G1H connection and tap sizing (2 at -5% FCBN) for straightforward field terminations. Impact: Reduced installation risk, scalable configurations, and easier maintenance. Application: distribution centers and OEMs pursuing modular power distribution in new builds.
Get a Quick Quote for a Eaton P60G28T1518CUB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton P60G28T1518CUB?
Enquire Now
FAQs
The unit is designed for wall mounting within a NEMA 3R enclosure, providing rugged protection in indoor spaces and protected outdoor environments. Its 26 in height, 28.8 in width, and 9.4 in depth support compact installation in panel rooms and equipment spaces while maintaining service access for bolt-on breakers.
Yes. The transformer center is rated for 600 V primary and 208Y/120 V secondary, three-phase operation at 60 Hz, with 15 kVA capacity. It is ideal for feeding low-voltage distribution panels from higher voltage sources in manufacturing lines and control cabinets.
It carries UL Listed, CSA Certified, ANSI, and IEEE Certified approvals. These certifications validate safety, interoperability, and compliance with industry standards, reducing risk during approvals, commissioning, and ongoing maintenance in regulated facilities.
Plan for wall-mount installation with access to M60G1H wiring connections. The unit’s 18-space frame supports bolt-on breakers, and its 600 V to 208Y/120 V configuration requires precise wiring terminations and space for routing conductors along the enclosure, ensuring serviceability and future expansion.
The compact footprint, reduced wiring complexity, and robust copper windings contribute to lower installation time, fewer field wiring errors, and longer service life under inrush and load variations. With standard certifications and a one-year (or 18-month from shipment) warranty, it also minimizes lifecycle risk and maintenance costs.
