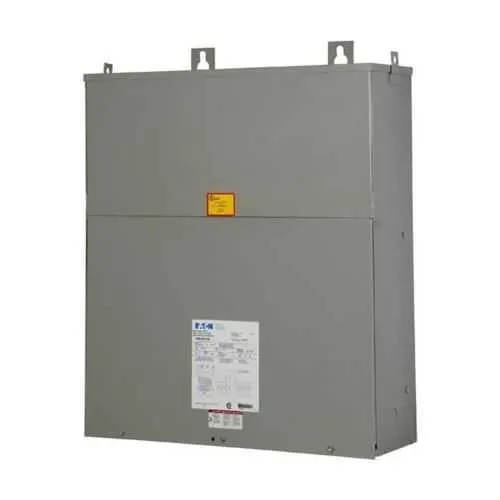

Eaton P60G28T1518SS Mini-Power Center - UL Listed
Part Number: P60G28T1518SS
Quick Summary
Eaton Mini-Power Center P60G28T1518SS offers compact three-phase power distribution for industrial panels. When space is tight and wiring complexity grows, installation and maintenance become costly and error-prone. This unit carries ANSI UL Listed, CSA Certified, and IEEE Certified markings, reinforcing safety, reliability, and regulatory compliance. With a wall-mount NEMA 3RX enclosure and a 15 kVA rating, it delivers robust power management while reducing footprint. Designed for quick integration with 600 V primary and 208Y/120 V secondary systems, it supports streamlined procurement and a lower total cost of ownership.
Product Information
Extended Description
P60G28T1518SS Eaton: 15 kVA Mini Power Center 3PH 600Delta - 208Y/120 SS Encl 18 spaces
Product Name
Eaton Mini-Power center
Catalog Number
P60G28T1518SS
UPC
786680225574
Product Length/Depth
9.4 in
Product Height
36.1 in
Product Width
28.8 in
Product Weight
410 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NAFTA
Certifications
ANSI UL Listed CSA Certified IEEE Certified
Coil material
Aluminum
Enclosure
NEMA 3RX
Frame
289B
Insulation
180 °C
Mounting
Wall Mount
Tap size
2 at -5% FCBN
Type
Mini-power center
Wiring connection
M60G1H
Frequency rating
60 Hz
kVA
15 kVA
Kva Rating
15 kVA
Phase
Three-phase
Primary voltage
600 V
Secondary Voltage
208Y/120 V
Sound Level
NEMA ST-20
Temperature rise
115 °C rise
Volt ampere rating
15 kVA
Modification 1
NEMA 3RX
Weathershield
Not required
Commercial Distribution, Transformers, Volume 2, Tab 2
Eaton's Transformer Flex Center
Eaton Specification Sheet - P60G28T1518SS
The 15 kVA three-phase design delivers ample capacity for mid-size industrial loads while maintaining a compact footprint. Rated at 60 Hz with a 600 V primary and 208Y/120 V secondary, it integrates smoothly with typical plant power rails. Overall dimensions keep the unit lean: 28.8 inches wide, 36.1 inches high, and 9.4 inches deep. This combination reduces wiring runs and cabinet count, accelerating installation and cutting upfront costs. The wall-mount enclosure, built to NEMA 3RX specifications, offers rugged protection in variable environments. Aluminum coil construction paired with 180 °C insulation enhances thermal performance and long-term reliability. With a weathershield not required, the center remains versatile for indoor plant rooms and controlled outdoor areas. The design simplifies serviceability by placing access points within reach for routine maintenance. UL Listed, CSA Certified, and IEEE Certified markings support compliance across procurement, audits, and safety programs. That certification spectrum reduces supplier risk and accelerates approval in regulated facilities. NAFTA compliance further streamlines cross-border sourcing for multinational projects. Together these certifications translate into lower lifecycle risk and smoother project timelines. Wiring flexibility is aided by a M60G1H connection and two taps at -5% FCBN. This enables quick field wiring adjustments and compatibility with common panel feeds. A compact, space-saving layout minimizes retrofits and helps keep maintenance lanes clear. Engineered for straightforward installation, the unit supports standard grounding practices and safe lockout/tagout procedures. Warranty terms—one year from installation or eighteen months from shipment—provide early-stage protection. The transformer center’s robust construction supports longer service intervals and reduced maintenance costs. Owners benefit from predictable performance, steady load handling, and stable secondary voltage under load. In sum, the P60G28T1518SS delivers reliable power distribution with proven Eaton support and broad compatibility.
Get a Quick Quote for a Eaton P60G28T1518SS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton P60G28T1518SS?
Enquire Now
FAQs
Installers should plan for a wall-mounted, floor-supporting enclosure with adequate clearance for front access and wiring. Verify the 600 V feed and 208Y/120 V distribution, and confirm compatibility with 60 Hz systems. Use the M60G1H wiring connection and prepare for 2 taps at -5% FCBN. Ensure proper grounding and lockout/tagout procedures; account for the 410 lb weight and service accessibility.
Rated at 15 kVA, the unit delivers balanced three-phase power with a 600 V primary and 208Y/120 V secondary, suitable for mid-size industrial loads. The 60 Hz frequency matches standard facility grids, while the temperature rise capability of 115 °C supports stable operation under load. Aluminum coil construction and 180 °C insulation enhance durability and long-term performance in demanding environments.
The P60G28T1518SS uses a NEMA 3RX enclosure that provides weather resistance for moderate outdoor and dusty indoor environments. It does not require a separate Weathershield, simplifying installation where protective housings are constrained. Ensure proper mounting clearances and ventilation to maintain optimal ambient conditions for longevity.
Look for ANSI UL Listed, CSA Certified, and IEEE Certified markings on the unit, with NAFTA compliance noted for cross-border procurement. These certifications indicate safety, interoperability, and regulatory alignment with electrical distribution standards, reducing risk during audits and expediting supplier qualification for multinational projects.
Warranty covers one year from installation or eighteen months from shipment, whichever occurs first, offering early protection. The 410 lb center and robust aluminum coil construction support longer service intervals and lower maintenance costs. Its compact footprint reduces space costs and speeds installation, delivering a favorable total cost of ownership for mid-size facilities.
