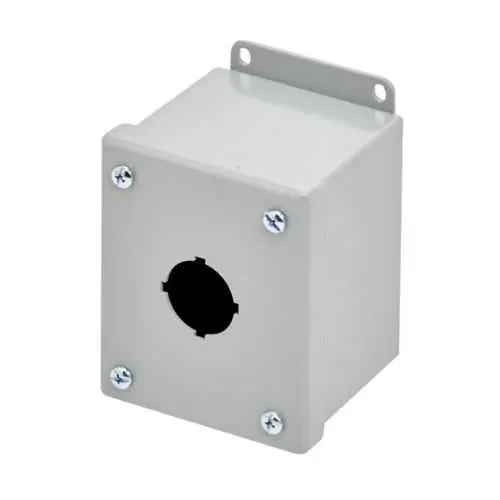

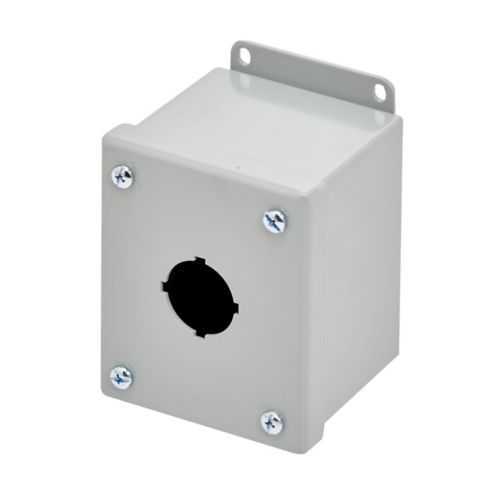

Eaton PB1-4XSS6 Push Button Enclosures - NEMA 4X
Part Number: PB1-4XSS6
Quick Summary
Eaton PB1-4XSS6 push button enclosures protect control circuits in harsh industrial environments. This rugged surface-mounted housing helps keep sensitive electronics safe from dust, moisture, and corrosive washdowns. Maintenance teams frequently battle ingress and gasket degradation in damp facilities, but the PB1-4XSS6's 316 stainless steel body, 16 gauge wall, and oil-resistant gasket deliver long-term durability. With a NEMA 4X rating and a compact, surface-mount footprint, it supports outdoor and washdown-ready installations while reducing downtime and total cost of ownership. The enclosure also pairs easily with standard push-button operators, offering reliable service life with minimal maintenance.
Product Information
Extended Description
PB1-4XSS6 Eaton: Eaton B-Line series push button enclosures, 4" height, 3" length, 3.25" width, NEMA 4X, Screw cover, PB4XSS6 enclosure, Surface mounted, Small single door, External mounting feet, 316 stainless steel, Oil-resistant gasket
Product Name
Eaton B-Line series push button enclosures
Catalog Number
PB1-4XSS6
UPC
782051137019
Product Length/Depth
3 in
Product Height
4 in
Product Width
3.25 in
Product Weight
1.7 lb
Compliances
Not Applicable
Certifications
Not Applicable
Material
316 stainless steel
Wall thickness
16 gauge
Finish color
#4 brushed
Color
Gray
Style
Small single door
Model
PB4XSS6 enclosure
Cover type
Screw
Mounting method
Surface
Mounting hole details
External mounting feet
Special features
Removable cover, recessed pull ring, s.s. screws
NEMA Rating
4X
Country of origin
US
316 stainless steel construction with 16 gauge wall thickness delivers outstanding corrosion resistance in washdown and chemical-exposure environments, reducing replacement costs and downtime; it’s ideal for harsh facilities such as food processing, water treatment, and outdoor control panels. The NEMA 4X rating provides enhanced protection against water, dust, and corrosion, helping meet stringent facility standards and lowering the risk of unexpected outages in outdoor or damp locations. Surface mounting with external feet enables quick, disruption-free installation on existing panels without through-wall work, saving time during initial deployment and future upgrades. A removable screw cover, recessed pull ring, and stainless screws improve serviceability, letting technicians access controls fast and reseal reliably for long-term protection. Compact dimensions—4 in height, 3 in depth, and 3.25 in width—plus a light 1.7 lb weight, create a small-footprint enclosure that fits crowded control stations while maintaining robust protection. An oil-resistant gasket further enhances sealing against lubricants and chemicals common in industrial environments.
Get a Quick Quote for a Eaton PB1-4XSS6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PB1-4XSS6?
Enquire Now
FAQs
PB1-4XSS6 uses surface mounting with external feet, enabling fast installation on existing panels without through-wall work. Its external feet allow straightforward alignment and secure attachment using standard screws, reducing installation time and minimizing frame cuts or structural modifications in new or retrofit applications.
Yes. The enclosure features a 316 stainless steel body, 16 gauge wall thickness, and a NEMA 4X rating, which together provide robust protection against moisture, dust, and corrosion in outdoor or washdown-heavy environments, helping to meet demanding industrial standards.
The enclosure measures 4 inches in height, 3 inches in depth, and 3.25 inches in width, with a product weight of approximately 1.7 pounds. This compact footprint supports small-control-panel needs without sacrificing rugged protection for push-button operators.
Yes. It includes a removable screw cover with a recessed pull ring and stainless steel screws, enabling quick access to internal components for maintenance or replacement. The design facilitates rapid resealing, preserving the enclosure’s protective performance between service intervals.
Typical applications include industrial control panels, outdoor equipment housings, and washdown-environment installations in sectors like manufacturing, water treatment, and food & beverage processing. Its corrosion-resistant construction and NEMA 4X protection make it a reliable choice for harsh environments where uptime and reliability are critical.
