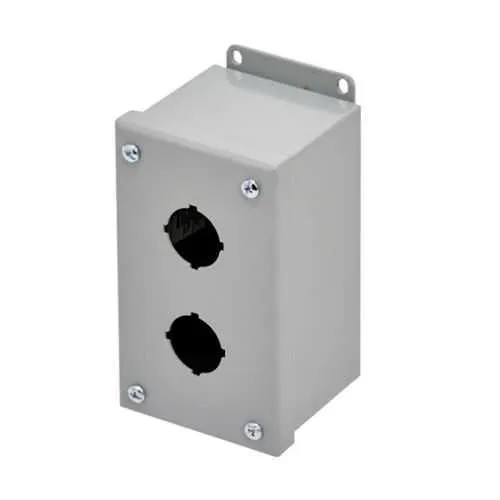

Eaton PB25 Push Button Enclosures for Surface-Mount - NEMA 12
Part Number: PB25
Quick Summary
PB25 push button enclosures safeguard control stations in industrial facilities by housing operator interfaces in a rugged, durable shell. This design helps minimize downtime by resisting dust, oil, and field wear while enabling quick access for maintenance. With a 14 in high, 13 in wide, and 3 in deep carbon steel body, the PB25 features a hinged cover, removable lid, and oil‑resistant gasket to protect sensitive controls. The enclosure carries a NEMA 12 rating, supports surface mounting with external feet, and offers an aesthetically consistent, ANSI 61 gray finish. For OEMs and service teams, this combination enables faster installations, reliable protection, and easier future upgrades without panel redesigns.
Product Information
Extended Description
PB25 Eaton: Eaton B-Line series push button enclosures, 14" height, 3" length, 13" width, NEMA 12, Hinged cover, PB enclosure, Surface mounted, Small single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series push button enclosures
Catalog Number
PB25
UPC
782051700701
Product Length/Depth
3 in
Product Height
14 in
Product Width
13 in
Product Weight
12.7 lb
Compliances
Not Applicable
Certifications
Not Applicable
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
PB enclosure
Cover type
Hinged
Mounting method
Surface
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Removable cover, recessed pull ring, plated screws
NEMA Rating
12
Country of origin
US
Feature → Business Impact → Application: Carbon steel construction with 14 gauge wall thickness delivers rugged protection against impact and environmental exposure, reducing part replacement costs and downtime on the factory floor. This supports long service life in demanding industrial environments and ensures safer operator interfaces. Feature → NEMA Rating 12 protection → Business impact: Dust and oil resistance minimizes contamination risk in manufacturing plants, improving uptime and reducing cleaning cycles. Application: Ideal for control panels and operator interfaces in dusty or oily production lines. Feature → Hinged cover with removable option and recessed pull ring → Business impact: Simplified maintenance and access during routine servicing or diagnostics, lowering labor time and improving changeover efficiency. Application: Quick lid removal for wiring tasks or component upgrades. Feature → Surface mounting with external feet → Business impact: Easy retrofits and flexible installation across wall-mounted panels or equipment housings, reducing site work and enabling modular upgrades. Application: OEM panel assemblies and retrofit projects. Feature → Painted ANSI 61 gray finish and oil‑resistant gasket → Business impact: Corrosion resistance and dielectric integrity extend enclosure life in harsh environments, lowering total cost of ownership. Application: Enclosures exposed to humidity, splashes, or temperature fluctuations.
Get a Quick Quote for a Eaton PB25
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PB25?
Enquire Now
FAQs
The PB25 is surface-mounted with external mounting feet, enabling easy installation on walls or equipment. This reduces field wiring complexity and allows rapid retrofits in existing panels, saving time during upgrades and supporting scalable control layouts.
The PB25 measures 14 inches in height, 13 inches in width, and 3 inches in depth, with a weight of 12.7 pounds. These precise dimensions simplify panel enclosure planning, ensure compatibility with mounting footprints, and facilitate accurate space budgeting in control cabinets.
Yes. The PB25 carries a NEMA 12 rating, providing protection against dust and light oil exposure. This makes it well-suited for factory floors, machinery housings, and control panels where environmental ingress is a concern.
The enclosure uses carbon steel with a 14 gauge wall and a painted ANSI 61 gray finish. This combination offers durability and corrosion resistance while keeping maintenance straightforward, aided by the removable cover for quick access.
The PB25’s hinged, removable cover, oil-resistant gasket, and external feet enable rapid servicing, simple upgrades, and quick field wiring access. These features reduce labor time, extend component life, and lower total cost of ownership for automated systems and OEM panel builds.
