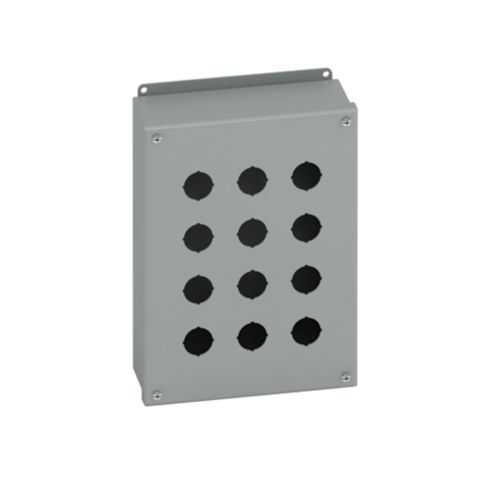

Eaton PB9-4XS Push Button Enclosures - NEMA 4X
Part Number: PB9-4XS
Quick Summary
The Eaton PB9-4XS push button enclosures protect control stations in harsh industrial environments while keeping operator interfaces accessible. Too often, corrosion, washdown exposure, or difficult maintenance drives downtime and escalating service costs. Key features like a 304 stainless steel body, 14 gauge wall, and NEMA 4X protection help organizations meet demanding reliability and safety standards. With surface mounting and external feet, installation is faster and more scalable across multi-line panels. The enclosure's hinged, screw cover and removable lid simplify field wiring, inspection, and part replacement without compromising enclosure integrity. Designed for surface mounting with external feet and a recessed pull ring, it adapts to compact or retrofit installations while maintaining rugged, washdown-ready protection.
Product Information
Extended Description
PB9-4XS Eaton: Eaton B-Line series push button enclosures, 9.5" height, 3" length, 8.5" width, NEMA 4X, Screw cover, PB4XS enclosure, Surface mounted, Small single door, External mounting feet, 304 stainless steel, Oil-resistant gasket
Product Name
Eaton B-Line series push button enclosures
Catalog Number
PB9-4XS
UPC
782051136975
Product Length/Depth
3 in
Product Height
9.5 in
Product Width
8.5 in
Product Weight
7.2 lb
Compliances
Not Applicable
Certifications
Not Applicable
Material
304 stainless steel
Wall thickness
14 gauge
Finish color
#4 brushed
Color
Gray
Style
Small single door
Model
PB4XS enclosure
Cover type
Screw
Mounting method
Surface
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Removable cover,recessed pull ring,stainlessscrews
NEMA Rating
4X
Country of origin
US
304 stainless steel construction with a 14-gauge wall delivers exceptional corrosion resistance and robust protection in washdown areas. In maintenance-heavy environments, this design reduces replacement cycles and downtime, lowering total ownership costs for food and beverage processing, chemical plants, and outdoor control panels. NEMA 4X protection provides reliable ingress resistance against water, dust, and corrosive exposure in outdoor or harsh indoor settings. The oil-resistant gasket complements the metal enclosure to maintain integrity during frequent washdowns and chemical contact. Surface mounting with external feet accelerates installation and simplifies multi-panel or retrofit layouts. This approach also supports easier alignment, leveling, and secure mounting in tight spaces. Removable cover, recessed pull ring, and stainless screws enable fast maintenance without compromising protection. Operators can access wiring and components quickly for inspections, testing, or replacement while keeping the enclosure sealed between service events. Compact dimensions—9.5 in tall, 8.5 in wide, 3 in deep—and a light 7.2 lb weight support efficient relocation and reconfiguration across facilities.
Get a Quick Quote for a Eaton PB9-4XS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PB9-4XS?
Enquire Now
FAQs
The PB9-4XS is surface-mounted with external mounting feet, enabling quick, secure installation on wall surfaces or panel backs. This setup simplifies alignment across multi-panel configurations, reduces installation time, and allows easy retrofitting in tight spaces. The external feet also facilitate leveling and compatibility with a range of mounting surface thicknesses, which is particularly valuable in retrofit projects or crowded electrical rooms.
Performance in washdown environments is enhanced by the 304 stainless steel construction and a 14-gauge wall, delivering superior corrosion resistance and structural integrity. The oil-resistant gasket further protects against moisture ingress, while the hinged screw cover and removable lid provide reliable access for maintenance without compromising enclosure protection. These features together reduce maintenance cycles and extend service life in harsh chemical and washdown applications.
Yes. The PB9-4XS is designed for outdoor and harsh indoor settings thanks to its NEMA 4X protection and corrosion-resistant 304 stainless steel body. This makes it well-suited for outdoor control panels, hazardous plant areas, and facilities with frequent washdowns or chemical exposure, while maintaining a robust, accessible operator interface.
Maintenance considerations include monitoring the integrity of the oil-resistant gasket to ensure sealing performance after repeated washdowns, inspecting the removable lid and hinge for smooth operation, and using the recessed pull ring for easy access during inspections. The stainless screws resist corrosion, supporting longer service intervals and reducing maintenance labor in tough environments.
The PB9-4XS measures 9.5 in high, 8.5 in wide, and 3 in deep, with a weight of about 7.2 lb. These compact, lightweight dimensions simplify installation in space-constrained panels and facilitate reconfiguration across multiple lines or retrofit projects. The size and weight also ease handling during field mounting and reduce the need for heavy lifting equipment on site.
