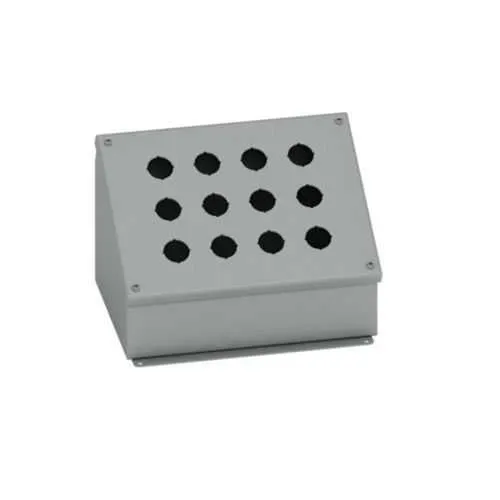

Eaton PBC16 Push Button Enclosures Series - NEMA 12
Part Number: PBC16
Quick Summary
Eaton PBC16 Push Button Enclosures provide rugged housing for control panels and operator interfaces in industrial settings. Many enclosures today fail to seal against dust, oil, and incidental moisture, driving maintenance costs and downtime. NEMA 12 protection, a carbon steel body, and an oil‑resistant gasket deliver dependable dust and splash resistance for harsh environments. Originating in the US, these enclosures are designed for surface mounting with external mounting feet and a hinged, removable cover that simplifies installation and routine service. They integrate seamlessly with Eaton's B-Line series, offering consistent mounting footprints and interchangeability across your control infrastructure. For engineers and procurement teams, this combination reduces spare parts diversity while improving panel reliability in manufacturing and process environments.
Product Information
Extended Description
PBC16 Eaton: Eaton B-Line series push button enclosures, 10.75" height, 8.62" length, 11.75" width, NEMA 12, Hinged cover, PBC enclosure, Surface mounted, Small single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series push button enclosures
Catalog Number
PBC16
UPC
782051701548
Product Length/Depth
8.62 in
Product Height
10.75 in
Product Width
11.75 in
Product Weight
12 lb
Compliances
Not Applicable
Certifications
Not Applicable
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
PBC enclosure
Cover type
Hinged
Mounting method
Surface
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Removable cover, recessed pull ring, plated screws
NEMA Rating
12
Country of origin
US
NEMA 12 rated carbon steel enclosure with 14 gauge wall thickness provides robust protection against dust and light splashes, reducing component exposure and maintenance costs in busy production lines. This translates to fewer unscheduled downtime events and longer service intervals for critical control hardware, while maintaining safe operation in challenging environments. The PBC16 is designed for surface mounting with external mounting feet, enabling fast installation and straightforward retrofits into existing enclosures or control panels. A hinged, removable cover with a recessed pull ring and plated screws simplifies access during setup, diagnostics, and routine maintenance, which lowers labor time and supports quicker commissioning. The oil‑resistant gasket enhances chemical resistance in oily or solvent‑exposed areas, extending gasket life and maintaining enclosure integrity without frequent gasket replacement. Compatibility with the Eaton B-Line series footprint ensures consistent mounting patterns and easier upgrades across multiple enclosures in a facility, reducing design complexity and inventory costs. The painted ANSI 61 gray finish provides durable corrosion resistance and a clean, code‑compliant appearance suitable for industrial environments, while the small single‑door model maintains a compact footprint for tight panel spaces. Overall, the PBC16 delivers reliable protection, faster installation, and lower total cost of ownership in control‑panel applications across manufacturing and process industries.
Get a Quick Quote for a Eaton PBC16
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PBC16?
Enquire Now
FAQs
The PBC16 is designed to protect push-button and indicator switch assemblies within control panels and operator interfaces in industrial settings. Its NEMA 12 rating, carbon steel construction, and oil‑resistant gasket help guard against dust, splash, and oil exposure, making it suitable for manufacturing lines, packaging machines, and process equipment where reliable enclosure protection is essential.
Installation is straightforward: mount the enclosure via surface mounting on a prepared surface using the external feet provided. The hinged, removable cover allows access during wiring and commissioning, and the recessed pull ring plus plated screws simplify door handling. Ensure a proper seal with the oil‑resistant gasket before wiring to maintain NEMA 12 protection.
Yes. The PBC16 uses external mounting feet for surface installation and maintains a NEMA 12 protection rating, which protects against dust and light splashes. It is built from carbon steel with a 14 gauge wall and includes an oil‑resistant gasket to withstand oily environments, making it a robust choice for machine control panels.
The PBC16 carries a NEMA 12 rating, indicating dust and splash protection. It is manufactured in the United States and features a carbon steel body with an oil‑resistant gasket, finished in painted ANSI 61 gray. While CE and SIL certifications are not indicated for this model, the enclosure meets established NEMA protection standards suitable for many industrial applications.
Choosing the PBC16 can reduce maintenance labor and downtime due to its durable protection and serviceability features. The hinged removable cover, external feet for quick mounting, and compatibility with the B-Line footprint streamline installation and future upgrades. The oil‑resistant gasket and robust carbon steel construction also lower replacement costs, delivering improved panel reliability over the product lifecycle.
