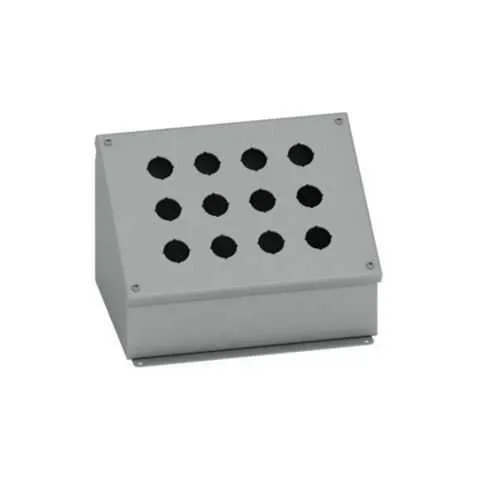

Eaton PBC20 Push Button Enclosures - NEMA 12 Rating
Part Number: PBC20
Quick Summary
Eaton PBC20 Push Button Enclosures provide rugged, surface-mounted housing for control circuits in industrial panels. When space is tight and maintenance access is critical, a compact yet robust enclosure reduces downtime and streamlines service. This PBC20 carries a NEMA 12 rating and is built from fourteen gauge carbon steel with an oil resistant gasket, a hinged cover, and external mounting feet, delivering dependable protection in harsh environments. As part of Eaton's B-Line series, it integrates seamlessly with surface-mounted installations and other enclosures in electrical infrastructure projects, helping simplify installation, inventory, and overall total cost of ownership.
Product Information
Extended Description
PBC20 Eaton: Eaton B-Line series push button enclosures, 10.75" height, 14" length, 8.62" width, NEMA 12, Hinged cover, PBC enclosure, Surface mounted, Small single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series push button enclosures
Catalog Number
PBC20
UPC
782051701586
Product Length/Depth
14 in
Product Height
10.75 in
Product Width
8.62 in
Product Weight
13.7 lb
Compliances
Not Applicable
Certifications
Not Applicable
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
PBC enclosure
Cover type
Hinged
Mounting method
Surface
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Removable cover, recessed pull ring, plated screws
NEMA Rating
12
Country of origin
US
Robust construction offers durable protection in demanding environments, supporting longer service life and reduced replacement cycles. The fourteen gauge carbon steel body provides structural integrity while the oil resistant gasket maintains a reliable seal against dust and oils, minimizing ingress and downstream maintenance costs. NEMA twelve rating delivers appropriate protection for dusty and oily environments, enabling installers to deploy the enclosure in manufacturing floors, machine rooms, and process areas with confidence. Hinged cover and removable cover options accelerate maintenance routines, enabling faster component access and lower downtime penalties during preventive service or fault remediation. Surface mounting with external feet simplifies installation in retrofit projects or new builds, reducing mounting time and allowing alignment with existing panel footprints. Removable features and plated screws enhance serviceability and corrosion resistance, improving long term reliability. Finished in ANSI sixty one gray and painted for consistent aesthetics, the enclosure blends with common electrical infrastructure while offering durable protection.
Get a Quick Quote for a Eaton PBC20
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PBC20?
Enquire Now
FAQs
The PBC20 supports surface mounting with external feet, enabling straightforward installation on walls or panels. This mounting approach simplifies alignment with adjacent enclosures and minimizes required support hardware, helping technicians complete installations quickly and with fewer components.
The enclosure uses fourteen gauge carbon steel with an oil resistant gasket and a hinged cover. It is rated for NEMA twelve protection, providing reliable dust and oil ingress control in industrial environments, while the painted ANSI sixty one gray finish offers durable, weather resistant aesthetics.
Yes. The PBC20 is designed for control panels and push button stations in manufacturing settings. Its compact dimensions, durable construction, hinged access, and external mounting feet enable quick panel integration while delivering robust protection for sensitive control components.
Maintenance is facilitated by a hinged cover and a removable cover option, along with a recessed pull ring and plated screws. These features enable fast component access, easier gasket inspection, and simpler replacement tasks, reducing service time and improving line uptime.
The PBC20 aligns with US manufacturing standards for industrial enclosures, with a NEMA twelve rating for protection against dust and oil. Its exterior mounting design, materials, and finish are selected to satisfy typical US electrical infrastructure projects and ensure reliable field performance.
