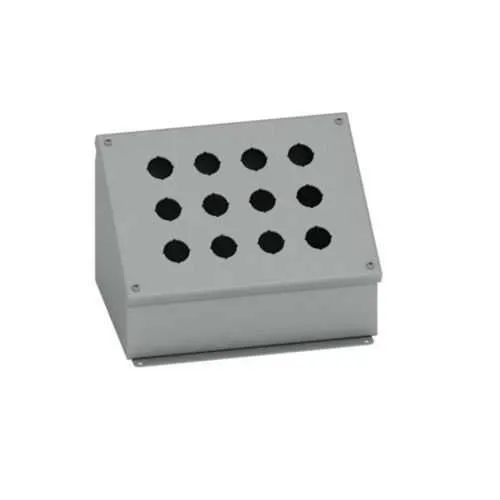

Eaton PBC4 Push Button Enclosures - NEMA 12 Rating
Part Number: PBC4
Quick Summary
Eaton PBC4 Push Button Enclosures protect control stations in harsh industrial settings, keeping operator interfaces clean and panels safe. Operators and integrators often wrestle with mounting flexibility, environmental exposure, and serviceability in compact control housings. The PBC4 carries a NEMA 12 rating for dust and moisture protection and is US-made, with durable carbon steel construction to withstand daily use. This combination supports faster panel builds and lower maintenance costs, while compatible hardware and hinge design simplify field servicing and overall lifecycle costs.
Product Information
Extended Description
PBC4 Eaton: Eaton B-Line series push button enclosures, 6.25" height, 6.37" length, 7.25" width, NEMA 12, Hinged cover, PBC enclosure, Surface mounted, Small single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series push button enclosures
Catalog Number
PBC4
UPC
782051701647
Product Length/Depth
6.37 in
Product Height
6.25 in
Product Width
7.25 in
Product Weight
5.8 lb
Compliances
Not Applicable
Certifications
Not Applicable
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
PBC enclosure
Cover type
Hinged
Mounting method
Surface
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Removable cover, recessed pull ring, plated screws
NEMA Rating
12
Country of origin
US
The PBC4 enclosure uses a carbon steel construction with a 14 gauge wall, delivering robust protection in demanding environments. This translates to fewer panel failures and longer service intervals, reducing downtime in manufacturing lines and improving overall equipment effectiveness. Its NEMA 12 rating guards against dust, dirt, and light oil exposure, making it suitable for machine control panels in workshops and production floors. The surface mounting method with external feet enables quick installation on existing frames, speeding up deployment and minimizing on-site labor costs. A hinged, removable cover and recessed pull ring simplify access for routine maintenance, while plated screws resist corrosion and extend enclosure life. Compatibility with standard push button operators and a compact 6.25 x 7.25 inch footprint provides flexibility for panel builders and OEMs. In short, it blends reliability with ease of installation for steady ROI.
Get a Quick Quote for a Eaton PBC4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PBC4?
Enquire Now
FAQs
The PBC4 is designed for surface mounting with external mounting feet, enabling fast, secure installation on existing frames or panels. This approach minimizes fabrication time, reduces field wiring complexity, and supports flexible placement in tight control rooms or machine bays. The hinged cover simplifies access without sacrificing enclosure integrity during operation.
The PBC4 enclosure measures 6.25 inches in height, 6.37 inches in depth, and 7.25 inches in width, with an approximate weight of 5.8 pounds. It is constructed from carbon steel with a 14-gauge wall and a painted ANSI 61 gray finish, providing a compact yet sturdy housing for push button operators.
Yes. The PBC4 carries a NEMA 12 rating, which offers protection against dust, dirt, and light oil exposure. Its oil-resistant gasket and robust construction help maintain interior cleanliness and prevent contaminants from affecting control components, improving reliability in harsh production settings.
Key features include a hinged cover with a recessed pull ring for easy opening, removable cover, and plated screws for corrosion resistance. These design elements streamline routine inspection and quick replacement of push button operators, minimizing downtime and enhancing panel serviceability on the factory floor.
The PBC4 aligns with NEMA Rating 12 for enclosure protection and is manufactured in the United States. While it is not listed with CE or SIL certifications in the provided data, its NEMA rating and US-origin manufacturing support reinforced protection and supply chain reliability for US-based installations and OEM projects.
