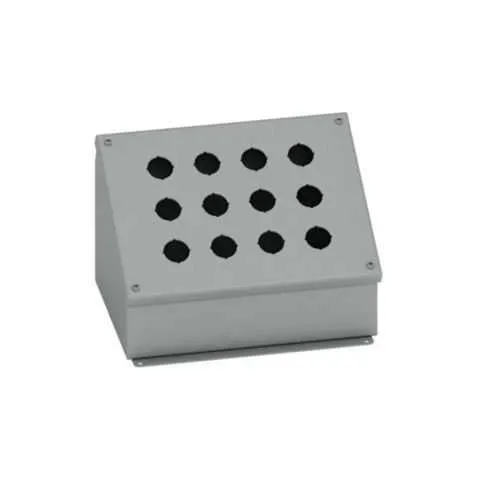

Eaton PBC9 Push Button Enclosures - NEMA 12, Carbon Steel
Part Number: PBC9
Quick Summary
Eaton PBC9 Push Button Enclosures protect control stations in industrial automation environments. Design teams often confront tight spaces and exposure to dust, oil, or splash that can compromise panel integrity. The enclosure delivers a NEMA 12 level of protection, a 14 gauge carbon steel body, and a hinged cover for reliable protection and fast service. With surface mounting and external mounting feet, it adapts to existing layouts while minimizing installation complexity. This combination supports safer, longer-lasting control cabinets and reduces maintenance downtime, while aligning with B-Line series compatibility to streamline procurement and integration in modern factories.
Product Information
Extended Description
PBC9 Eaton: Eaton B-Line series push button enclosures, 9.5" height, 7.88" length, 8.5" width, NEMA 12, Hinged cover, PBC enclosure, Surface mounted, Small single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series push button enclosures
Catalog Number
PBC9
UPC
782051131901
Product Length/Depth
7.88 in
Product Height
9.5 in
Product Width
8.5 in
Product Weight
8.7 lb
Compliances
Not Applicable
Certifications
Not Applicable
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
PBC enclosure
Cover type
Hinged
Mounting method
Surface
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Removable cover, recessed pull ring, plated screws
NEMA Rating
12
Country of origin
US
Feature: NEMA 12 protection provides dust, splash, and oil resistance. Business impact: reduces contamination risk and extends service life in harsh environments. Application: machine control panels and process automation equipment where splash or dust exposure is common. Feature: 14 gauge carbon steel with 14 gauge wall thickness. Business impact: increases mechanical strength and vandal resistance, lowering replacement costs. Application: rugged automation enclosures in manufacturing lines and outdoor-adjacent areas. Feature: Hinged removable cover with recessed pull ring and plated screws. Business impact: simplifies maintenance, enables quick component access, and preserves enclosure integrity. Application: routine wiring changes, button replacements, and routine inspections. Feature: Surface mounting with external mounting feet. Business impact: enables quick installation on existing frames with minimal fabrication. Application: retrofit projects and new line starts where fast deployment matters. Feature: Small single door, 9.5 in height by 7.88 in depth by 8.5 in width; weight 8.7 lb. Business impact: compact footprint with manageable weight for on-site handling and installation. Application: control stations with limited enclosure space while preserving accessibility for operators and technicians. Feature: Painted ANSI 61 gray finish on carbon steel. Business impact: corrosion resistance and consistent aesthetics across panels. Application: indoor industrial environments requiring durable, uniform appearance.
Get a Quick Quote for a Eaton PBC9
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PBC9?
Enquire Now
FAQs
The PBC9 is designed for surface mounting with external mounting feet, enabling quick installation on existing frames or walls without complex fabrication. This configuration supports fast deployment in new lines and retrofit projects, reducing on-site labor and downtime.
The enclosure measures 9.5 inches in height, 7.88 inches in depth, and 8.5 inches in width, with an approximate weight of 8.7 pounds. These compact dimensions fit tight control panels while still providing access for maintenance.
Yes. It features a 14 gauge carbon steel body with a painted finish and a hinged, removable cover, paired with a NEMA 12 rating for dust, splash, and oil protection, making it well-suited for demanding manufacturing and process settings.
The PBC9 provides NEMA 12 protection and US-origin construction, aligning with common U.S. procurement and safety considerations for indoor industrial enclosures. While CE/SIL certifications are model-dependent, the enclosure is designed to meet typical industry protection and durability requirements for control stations.
Its hinged removable cover, recessed pull ring, and plated screws enable faster access during maintenance, reducing downtime. The rugged carbon steel body and oil-resistant gasket help extend service life, lowering replacement and maintenance costs over multiple production cycles.
