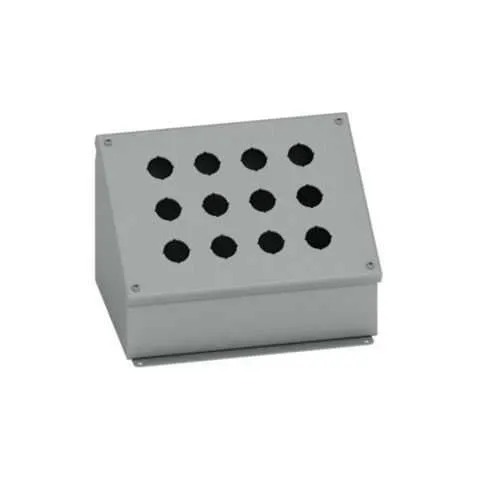

Eaton PBCS12 Push Button Enclosures - NEMA 12 rating
Part Number: PBCS12
Quick Summary
PBCS12 Push Button Enclosures are rugged, surface-mounted housings designed for reliable control-panel protection. In fast-paced automation projects, engineers need a compact enclosure that fits tight footprints while resisting dust and spills to avoid rework. This Eaton B-Line design delivers a NEMA 12-rated enclosure with carbon steel construction and an oil-resistant gasket, offering durability in demanding environments. By choosing external mounting feet and a hinged cover, installation and service access are simplified, while the ANSI 61 gray painted finish reduces corrosion potential. This combination supports dependable uptime and predictable lifecycle costs for electrical infrastructure.
Product Information
Extended Description
PBCS12 Eaton: Eaton B-Line series push button enclosures, 6.25" height, 6.37" length, 16.25" width, NEMA 12, Hinged cover, PBCS enclosure, Surface mounted, Small single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series push button enclosures
Catalog Number
PBCS12
UPC
782051701685
Product Length/Depth
6.37 in
Product Height
6.25 in
Product Width
16.25 in
Product Weight
10.7 lb
Compliances
Not Applicable
Certifications
Not Applicable
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
PBCS enclosure
Cover type
Hinged
Mounting method
Surface
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Removable cover, recessed pull ring, plated screws
NEMA Rating
12
Country of origin
US
Feature: Surface mounting with external mounting feet enables quick, secure installation on flat panels. Business Impact: Reduces installation time and simplifies retrofits, lowering labor costs while maintaining robust protection. Application: Control cabinets and machine panels in automation lines benefit from fast, reliable mounting without specialized hardware. Feature: Carbon steel construction with 14 gauge wall thickness delivers rigidity and long-term durability. Business Impact: Withstands daily abuse from vibration, accidental impacts, and tool contact, reducing maintenance events and replacements. Application: Industrial environments where mechanical robustness and longevity are critical. Feature: NEMA 12 rating with oil-resistant gasket provides dust resistance and splash protection. Business Impact: Keeps sensitive components clean and dry, extending service intervals and uptime. Application: Indoor control panels in milling, packaging, and assembly lines. Feature: Hinged cover, removable cover, recessed pull ring, and plated screws streamline access for maintenance and component upgrades. Business Impact: Minimizes downtime during servicing and enables faster changes to push-button operators. Application: Routine panel work and operator interface updates in process automation. Feature: ANSI 61 gray painted finish and standard dimensions (6.25 in height, 6.37 in depth, 16.25 in width) provide a consistent fit and corrosion resistance. Business Impact: Improves lifecycle predictability and retrofit compatibility across existing installations. Application: New builds and upgrades across electrical infrastructure projects.
Get a Quick Quote for a Eaton PBCS12
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PBCS12?
Enquire Now
FAQs
Installation is straightforward on flat panels using the external mounting feet included with the enclosure. The surface-mount design, hinged cover, and removable features allow quick alignment and secure fastening, minimizing field labor and promoting fast commissioning of control stations in automation lines.
PBCS12 features a 6.25 in height, 6.37 in depth, and 16.25 in width body, with a 14 gauge carbon steel wall. It is finished in ANSI 61 gray paint and weighs approximately 10.7 lb, providing a sturdy yet manageable enclosure for panel applications.
Yes. The enclosure carries a NEMA 12 rating, offering dust protection and protection against light splashes. While not IP-rated, it is designed for indoor control-panel environments where dust and non-splash exposures are common, supporting reliable operation in manufacturing and automation settings.
PBCS12 lists a NEMA 12 rating and US origin. There are no CE, IP, SIL, or other certifications specified in the provided data. This makes it well-suited for parts of U.S.-based industrial environments where NEMA 12 protection is the primary requirement.
The removable cover, recessed pull ring, and plated screws simplify maintenance and component swaps, reducing downtime. Its durable carbon steel construction and oil-resistant gasket minimize replacement frequency, contributing to lower lifecycle costs and higher uptime in standard automation and electrical-infrastructure projects.
