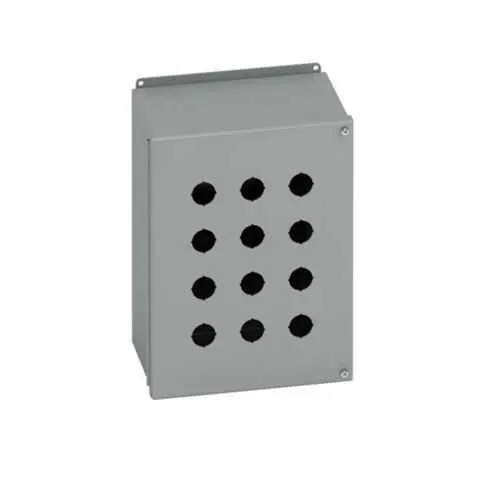

Eaton PBP16 Push Button Enclosures - NEMA 12
Part Number: PBP16
Quick Summary
Push Button Enclosures from Eaton PBP16 provide rugged, ready-to-mount housings for control stations in industrial environments. If you’re wrestling with dust, oil, and equipment downtime, this enclosure protects sensitive circuitry with a tight-sealing gasket and sturdy carbon steel construction. Designed for durable field use, it carries a NEMA 12 rating and a robust hinged, recessed pull ring design, with surface mounting and external feet for quick, reliable installation in US facilities. This solution integrates seamlessly with standard control panels, offering a cost-effective option for reliable, long-term operation in manufacturing and process industries.
Product Information
Extended Description
PBP16 Eaton: Eaton B-Line series push button enclosures, 13.5" height, 6" length, 12.5" width, NEMA 12, Hinged cover, PBP enclosure, Surface mounted, Small single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series push button enclosures
Catalog Number
PBP16
UPC
782051703061
Product Length/Depth
6 in
Product Height
13.5 in
Product Width
12.5 in
Product Weight
17.9 lb
Compliances
Not Applicable
Certifications
Not Applicable
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
PBP enclosure
Cover type
Hinged
Mounting method
Surface
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Removable cover, recessed pull ring, plated screws
NEMA Rating
12
Country of origin
US
Rugged carbon steel construction with 14 gauge walls provides structural integrity that resists dents and wear in busy plant environments. This translates to lower replacement costs and reduced downtime for panel assemblies in harsh factory settings. The enclosure is compatible with standard control panels and push-button arrays, supporting reliable integration within the Eaton B-Line series and other modular control solutions. NEMA 12 protection, coupled with an oil-resistant gasket and a hinged cover, minimizes dust and oil ingress, boosting equipment reliability and simplifying maintenance routines on packaging lines and process equipment. The removable cover, recessed pull ring, and plated screws enable faster servicing and labeling during routine inspections, while preserving seal integrity. Surface mounting with external feet offers installation flexibility across walls and cabinets, reducing field labor and alignment concerns in retrofits. The ANSI 61 gray painted finish keeps a professional appearance and provides a durable, repaintable surface suitable for high-traffic industrial environments. By combining these features, the PBP16 delivers a cost-effective, scalable solution for control stations that need to perform reliably under demanding conditions.
Get a Quick Quote for a Eaton PBP16
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PBP16?
Enquire Now
FAQs
The PBP16 is designed for surface mounting with external mounting feet and a hinged cover. This setup allows reliable installation on walls or control panels, simplifies alignment with adjacent devices, and reduces field wiring time while maintaining easy service access for wiring and labeling.
Yes. The enclosure achieves NEMA 12 protection with an oil-resistant gasket and a robust carbon steel body, helping minimize dust and oil ingress. The hinged door and removable cover further facilitate maintenance without compromising sealing integrity in harsh factory settings.
The enclosure measures 13.5 inches in height, 12.5 inches in width, and 6 inches in depth, with an approximate weight of 17.9 pounds. These dimensions provide ample space for push-button arrays while remaining compact for standard panel installations and service access.
PBP16 is built from carbon steel with 14 gauge walls and finished in ANSI 61 gray paint. This combination offers strong mechanical protection, a professional appearance, and a repaint-friendly surface suitable for demanding industrial environments.
This enclosure is manufactured in the United States and carries a NEMA 12 rating for dust and oil protection. With a hinged cover, surface mounting, and external feet, it aligns with common US control-panel practices and supports seamless integration with B-Line series components.
