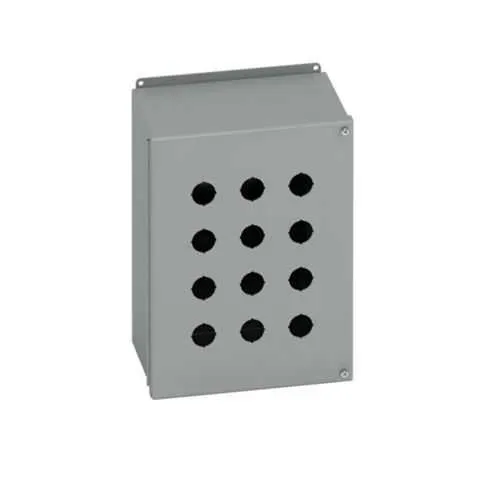

Eaton PBP25 Push Button Enclosure - NEMA 12 Rating
Part Number: PBP25
Quick Summary
Eaton PBP25 Push Button Enclosure protects control stations in industrial panels and equipment. In the field, contractors often battle tight spaces and frequent maintenance, so a surface-mounted design with a hinged cover helps minimize downtime. This enclosure delivers NEMA 12 protection, carbon steel construction with a 14 gauge wall, and an oil-resistant gasket for reliable performance in demanding environments. The ANSI 61 gray finish, external mounting feet, and removable cover support fast installation and swift servicing, while a compact footprint fits typical control layouts and reduces total cost of ownership.
Product Information
Extended Description
PBP25 Eaton: Eaton B-Line series push button enclosures, 16" height, 6" length, 15" width, NEMA 12, Hinged cover, PBP enclosure, Surface mounted, Small single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series push button enclosures
Catalog Number
PBP25
UPC
782051702026
Product Length/Depth
6 in
Product Height
16 in
Product Width
15 in
Product Weight
23.4 lb
Compliances
Not Applicable
Certifications
Not Applicable
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
PBP enclosure
Cover type
Hinged
Mounting method
Surface
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Removable cover, recessed pull ring, plated screws
NEMA Rating
12
Country of origin
US
Feature → Business Impact → Application: NEMA 12 protection and carbon steel construction provide rugged protection against dust, debris, and moisture, reducing field failure risks and maintenance costs in manufacturing cells and machine bays. Application: industrial control panels in high-dust environments. Feature → Business Impact → Application: 14 gauge wall thickness and 16" height by 15" width by 6" depth give a sturdy enclosure that accommodates standard push button operators, improving component compatibility and reducing retrofit time in existing lines. Application: retrofit projects and new line builds. Feature → Business Impact → Application: Hinged cover with a removable cover and recessed pull ring enables quick access to internal components, cutting maintenance downtime and simplifying inspection routines. Application: routine wiring changes and button upgrades. Feature → Business Impact → Application: External mounting feet and surface mounting method simplify installation on walls or equipment frames, enabling fast deployment across multiple lines. Application: temporary stations or modular control enclosures. Feature → Business Impact → Application: Oil-resistant gasket seals against washdowns and fluids, ensuring long life in process environments and minimizing gasket replacement costs. Application: chemical, oil, or coolant handling areas. Feature → Business Impact → Application: ANSI 61 gray painted finish and easy-to-clean surfaces support compliance with visual control standards and reduce cleaning cycles. Application: automotive, packaging, and food-and-beverage equipment lines.
Get a Quick Quote for a Eaton PBP25
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PBP25?
Enquire Now
FAQs
The PBP25 supports surface mounting with external mounting feet and a hinged cover for easy access. It also features a removable cover for quick component changes and recessed pull ring access, making maintenance and button changes faster in confined panel spaces.
The enclosure is built from carbon steel with 14 gauge walls and a painted ANSI 61 gray finish. It includes an oil-resistant gasket and carries a NEMA 12 protection rating, providing reliable dust and moisture resistance in industrial settings.
Yes, to a degree. The NEMA 12 rating and oil-resistant gasket offer protection against dust, light splashes, and moderate moisture typical of many industrial environments. For harsher washdown environments, verify your exact exposure and consider additional sealing or enclosure options.
Maintenance is streamlined by the removable cover, recessed pull ring, hinged closure, and accessible hinges, which provide quick internal access. External mounting feet and surface mounting also speed initial installation and any subsequent reconfigurations or upgrades.
Official documentation is available via Eaton’s resources: Pushbutton-enclosure-operator.pdf and the Eaton Specification Sheet - PBP25. These datasheets provide detailed dimensions, materials, gasket details, and installation guidance.
