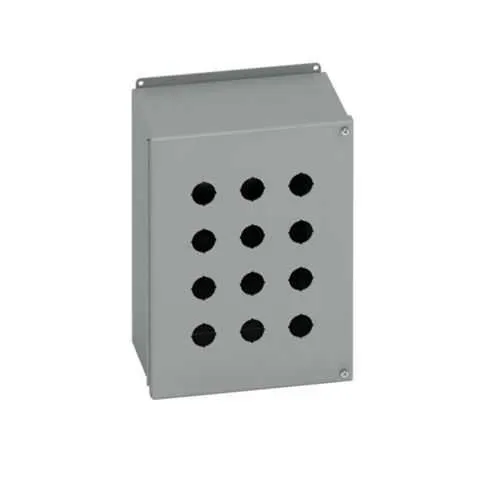

Eaton PBP30 Push Button Enclosures - NEMA 12 Rating
Part Number: PBP30
Quick Summary
Push Button Enclosures like Eaton PBP30 protect control circuits and provide safe operator access in electrical panels. Maintenance teams often face downtime from damaged housings and compromised seals, so a robust enclosure is essential. Built to NEMA 12 protection with carbon steel construction and an oil-resistant gasket, the PBP30 delivers reliable ingress protection in dusty or oily environments. With surface mounting and external feet, installation is straightforward on existing panels, helping OEMs and integrators cut install time while maintaining OSHA-friendly access. In addition, its hinged cover and removable pull ring support serviceability and long-term lifecycle savings.
Product Information
Extended Description
PBP30 Eaton: Eaton B-Line series push button enclosures, 18.5" height, 6" length, 15" width, NEMA 12, Hinged cover, PBP enclosure, Surface mounted, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series push button enclosures
Catalog Number
PBP30
UPC
782051702040
Product Length/Depth
6 in
Product Height
18.5 in
Product Width
15 in
Product Weight
26.2 lb
Compliances
Not Applicable
Certifications
Not Applicable
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
PBP enclosure
Cover type
Hinged
Mounting method
Surface
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Removable cover, recessed pull ring, plated screws
NEMA Rating
12
Country of origin
US
Feature → Business Impact → Application: The PBP30 uses a carbon steel enclosure with 14 gauge wall thickness, delivering durable, impact-resistant housing that reduces panel damage in harsh environments; this translates to lower replacement costs and less downtime in manufacturing lines. Application: Ideal for assembly lines and packaging equipment where operators require quick, safe access to control devices while panels endure dust, oil, and incidental contact. Feature → Business Impact → Application: External mounting feet enable surface installation on existing panels without custom chassis, accelerating projects and enabling scalable deployments across multiple lines. Application: OEMs can standardize on a single enclosure family for multiple SKUs, improving inventory control and installation consistency. Feature → Business Impact → Application: Hinged closure and removable cover facilitate fast maintenance and component swaps, reducing maintenance window time and extending lifecycle in high-rotation control panels. Application: Food processing, logistics, and material handling environments where frequent access to controls is required. Feature → Business Impact → Application: Oil-resistant gasket and ANSI 61 gray finish provide chemical and corrosion resistance, supporting longer service intervals and lower replacement costs in challenging environments. Application: Industrial automation cabinets and switchgear housings in dusty or oily facilities.
Get a Quick Quote for a Eaton PBP30
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PBP30?
Enquire Now
FAQs
To install the PBP30, mount the enclosure surface-facing the panel, align it with external feet for level placement, and secure with appropriate fasteners. Ensure the hinged cover clears adjacent components and connect internal wiring per your control schematic. The external feet simplify retrofits by eliminating the need for new mounting plates, saving time during integration.
PBP30 measures 18.5 inches in height, 15 inches in width, and 6 inches in depth. It uses surface mounting with external mounting feet, enabling quick installation on existing panels without modifying the frame. The enclosure features a hinged cover and a removable cover for fast maintenance access.
Yes. The PBP30 carries a NEMA 12 rating, providing protection against dust and oil ingress. Constructed from carbon steel with a 14 gauge wall and an oil-resistant gasket, it maintains enclosure integrity in harsh environments common to manufacturing, packaging, and material handling facilities.
The PBP30 is rated to NEMA 12 and is US-origin, reflecting its construction standards and manufacturing provenance. There are no additional certifications listed beyond these specifications, making it a straightforward choice for environments prioritizing NEMA protection and robust construction.
The hinged, removable cover enables rapid access for maintenance or replacement of internal components, reducing downtime. An oil-resistant gasket maintains sealing performance over time, while the exterior ANSI 61 gray finish resists corrosion. Combined, these features lower maintenance costs and extend service life in demanding industrial environments.
