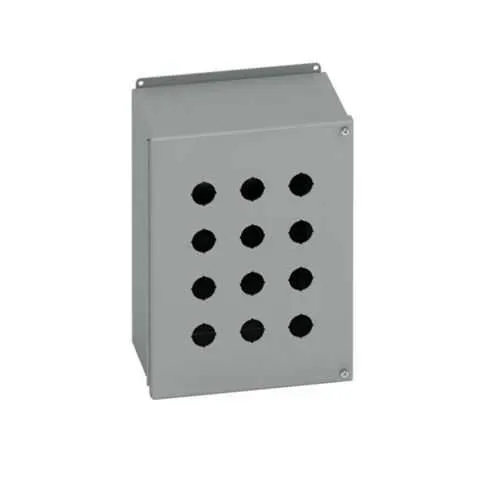

Eaton PBP36 Push Button Enclosures - NEMA 12
Part Number: PBP36
Quick Summary
Push Button Enclosures by Eaton PBP36 provide a durable, accessible control housing for electrical panels and industrial automation systems. Engineers often face tight spaces, moisture exposure, and the risk of non-compliance during enclosure upgrades; this model addresses those pain points with a robust, field-ready design. Highlights include a NEMA 12 rating for dust and splash protection and solid carbon steel construction with a 14 gauge wall, finished in ANSI 61 gray paint. With surface mounting and external feet, installation is flexible and maintenance-friendly, reducing downtime while meeting reliability and service-life targets. This enclosure also supports compatible B-Line configurations, aligning with broader enclosure and electrical infrastructure strategies.
Product Information
Extended Description
PBP36 Eaton: Eaton B-Line series push button enclosures, 18.5" height, 6" length, 17.5" width, NEMA 12, Hinged cover, PBP enclosure, Surface mounted, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series push button enclosures
Catalog Number
PBP36
UPC
782051702064
Product Length/Depth
6 in
Product Height
18.5 in
Product Width
17.5 in
Product Weight
29.7 lb
Compliances
Not Applicable
Certifications
Not Applicable
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
PBP enclosure
Cover type
Hinged
Mounting method
Surface
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Removable cover, recessed pull ring, plated screws
NEMA Rating
12
Country of origin
US
Feature: NEMA 12 protection provides dust and water ingress resistance in general industrial environments. Benefit: Shields control components from contaminants, lowering maintenance costs and extending service intervals. Application: suitable for machine controls and process panels in manufacturing facilities. Feature: Carbon steel construction with 14 gauge wall and ANSI 61 gray-painted finish. Benefit: Delivers robust mechanical protection against impact and corrosion in harsh shop floors, improving panel longevity. Application: panel housings in steel-heavy environments where durability matters. Feature: Hinged, removable cover with recessed pull ring and plated screws. Benefit: Quick, trouble-free access for commissioning, troubleshooting, and routine maintenance, minimizing downtime. Application: operator interface enclosures and control stations. Feature: Surface mounting with external mounting feet. Benefit: Flexible mounting options and faster retrofits into existing panels or new installations, reducing project lead times. Application: surface-mounted control panels in workshop or plant environments. Feature: External mounting feet and generous dimensions (18.5 in H, 17.5 in W, 6 in D) with 29.7 lb weight. Benefit: Easy placement in constrained spaces and stable mounting for high-traffic environments, supporting safer operation. Application: multi-enclosure layouts and space-planning in electrical infrastructure projects. Feature: Oil-resistant gasket and weather-tolerant finish. Benefit: Enhances sealing performance in environments with lubricants or mild exposure, reducing ingress risk and extending service life. Application: enclosures in production lines with oil or coolant exposure.
Get a Quick Quote for a Eaton PBP36
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PBP36?
Enquire Now
FAQs
The PBP36 supports surface mounting with external mounting feet, offering flexible installation in tight spaces and easy integration with existing panel footprints. This mounting method simplifies retrofits and enables rapid deployment in new installations, reducing project timelines and labor costs.
A NEMA 12 rating indicates protection against dust and non-corrosive liquids in general industrial environments. For the PBP36, this means reliable enclosure integrity on factory floors and workstations, helping prevent contamination of internal components and extending device life in typical plant settings.
Yes. The PBP36 is designed as a medium single-door enclosure with a hinged cover and external mounting options, supporting straightforward integration of push-button interfaces and compatible accessories. Its recessed pull ring and plated screws also simplify field modifications and routine maintenance.
Plan for surface mounting on a stable surface with the external feet, ensuring enough space for cable routing and access to the hinged cover. Consider the 18.5 in H x 17.5 in W x 6 in D footprint and 29.7 lb weight for space planning and handling during assembly and service turns.
The PBP36 offers durable carbon steel construction, a protective NEMA 12 rating, and quick-access features that reduce maintenance time. These factors translate to lower downtime, longer service life in demanding environments, and faster ROI through improved reliability and easier retrofits in industrial control panels.
