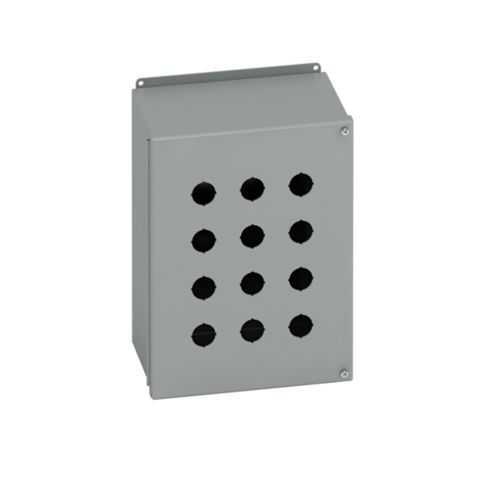

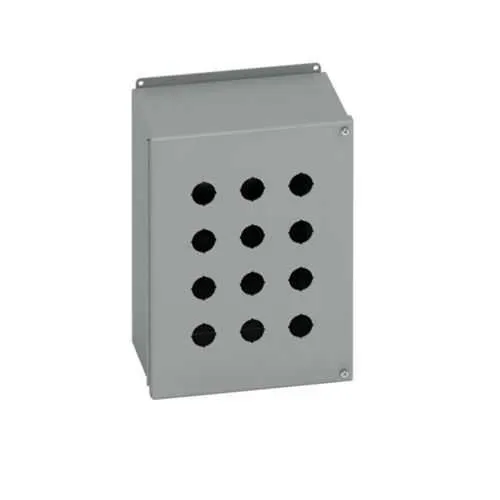

Eaton PBP9 Push Button Enclosure - NEMA 12
Part Number: PBP9
Quick Summary
Eaton PBP9 push button enclosure protects control panels in harsh industrial environments. Operators and maintenance teams often face dust, moisture, and mounting constraints that slow commissioning. With a NEMA 12 rating, carbon steel body, and a durable ANSI 61 gray finish, this medium enclosure delivers dependable protection and long service life. Its surface mounting with external feet simplifies installation and reduces panel footprint, while the hinged cover enables quick access for wiring and maintenance. Designed for B-Line series compatibility, the PBP9 supports efficient panel layouts and scalable control infrastructure, helping project teams meet tight schedules and budget targets.
Product Information
Extended Description
PBP9 Eaton: Eaton B-Line series push button enclosures, 11" height, 6" length, 10" width, NEMA 12, Hinged cover, PBP enclosure, Surface mounted, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series push button enclosures
Catalog Number
PBP9
UPC
782051702149
Product Length/Depth
6 in
Product Height
11 in
Product Width
10 in
Product Weight
13.1 lb
Compliances
Not Applicable
Certifications
Not Applicable
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
PBP enclosure
Cover type
Hinged
Mounting method
Surface
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Removable cover, recessed pull ring, plated screws
NEMA Rating
12
Country of origin
US
The PBP9 uses a compact footprint of 11 inches in height, 10 inches in width, and 6 inches in depth, providing a balanced enclosure suitable for crowded control panels. This, combined with a hinged cover, surface mounting capability, and external mounting feet, speeds installation and minimizes site modification requirements, enabling faster commissioning and reliable field service. In practice, the enclosure aligns with standard panel cores and reduces overall footprint while maintaining accessibility for wiring and testing. Carbon steel construction with a 14-gauge wall and ANSI 61 gray painted finish delivers durable protection in factory floors and general-purpose environments, offering long service life at a reasonable total cost of ownership. The NEMA 12 rating and gasketed closure provide resistance to dust and light splashes, supporting uptime in dusty or splashing areas without requiring specialty enclosures. Mounting versatility supports wall or equipment-mounted configurations, reducing integration time when adding protective housings to existing lines. Removable cover, recessed pull ring, and plated screws simplify maintenance access and documentation, helping technicians execute wiring changes quickly and safely while preserving enclosure integrity over time.
Get a Quick Quote for a Eaton PBP9
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PBP9?
Enquire Now
FAQs
The PBP9 supports surface mounting with external mounting feet, allowing wall- or cabinet-side installation. This configuration minimizes required space and accelerates mounting, wiring, and future maintenance. The hinged cover provides quick access for wiring while maintaining enclosure integrity, making it well-suited for retrofit projects or new-build control panels in constrained spaces.
Yes. The PBP9 carries a NEMA 12 rating, which protects against dust and light splashes in typical industrial settings. Its carbon steel construction with a painted finish adds durability, while the oil-resistant gasket enhances sealing. This combination supports reliable operation in factories, machine rooms, and material handling areas without requiring specialized enclosures.
The enclosure measures 11 inches in height, 10 inches in width, and 6 inches in depth. It has a typical weight of 13.1 pounds. These dimensions reflect a compact yet sturdy enclosure suitable for mid-sized control panels and equipment housings, supporting efficient layout planning and component placement.
Yes. The PBP9 features a hinged, removable cover with a recessed pull ring and plated screws. These design features facilitate fast lid removal for wiring changes, inspections, and maintenance, while maintaining enclosure integrity during normal operation and reducing downtime during servicing.
PBP9 is part of Eaton’s B-Line series and is designed for surface mounting with external feet, supporting straightforward integration with existing enclosures and panel layouts. When planning installations, consider matching hinge arrangements, external feet spacing, and gasket compatibility to preserve NEMA 12 protection and ensure consistent field maintenance across multiple enclosures.
