Eaton PBX10 Push Button Enclosures - NEMA 12 Rated
Part Number: PBX10
Quick Summary
Eaton PBX10 push button enclosures protect control stations in rugged industrial cabinets. A common challenge is keeping sensitive electronics safe from dust, moisture, and accidental contact while still enabling fast maintenance. This PBX10 delivers NEMA 12 protection in a carbon steel body with an oil-resistant gasket and a hinged cover, designed for surface mounting with external feet. Built for reliability in heavy equipment and automation panels, it supports a medium single-door configuration and removable features for service access. By combining sturdy construction with practical mounting options, it reduces downtime and extends component life, helping procurement teams balance safety, compliance, and total cost of ownership.
Product Information
Extended Description

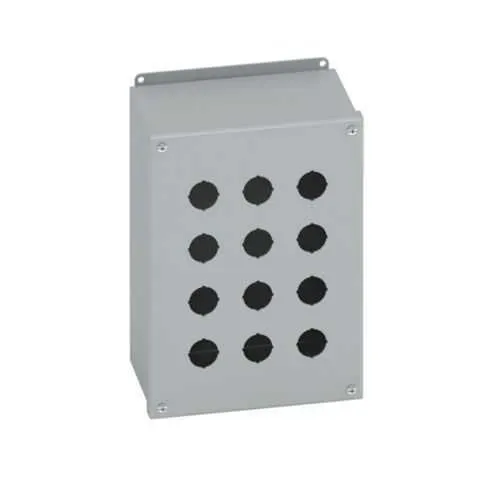

PBX10 Eaton: Eaton B-Line series push button enclosures, 14" height, 4.75" length, 6.25" width, NEMA 12, Hinged cover, PBX enclosure, Surface mounted, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series push button enclosures
Catalog Number
PBX10
UPC
782051090116
Product Length/Depth
4.75 in
Product Height
14 in
Product Width
6.25 in
Product Weight
9 lb
Compliances
Not Applicable
Certifications
Not Applicable
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
PBX enclosure
Cover type
Hinged
Mounting method
Surface
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Removable cover, recessed pull ring, plated screws
NEMA Rating
12
Country of origin
US
Carbon steel construction with a 14 gauge wall thickness delivers a rugged enclosure capable of withstanding industrial abuse. This translates to longer service life and lower replacement costs for automation panels in factory floors. Applications include machine control panels, operator interfaces, and remote mounting locations where reliable protection is essential. Oil-resistant gasket and NEMA 12 rating provide dependable environmental protection. The gasket maintains a seal against oils and grime, while NEMA 12 guards against dust and non-hazardous liquids, enabling compliant operation in production lines. Hinged removable cover and recessed pull ring simplify maintenance; technicians can access wiring quickly without tools, reducing downtime during upgrades and repairs. Surface mounting with external feet and a medium single door design support flexible installations in tight spaces, improving mounting stability and installation speed in retrofits. Removable cover, plated screws, and standard ANSI 61 gray finish offer practical serviceability and consistent appearance across installations, reducing variance in multi-site deployments.
