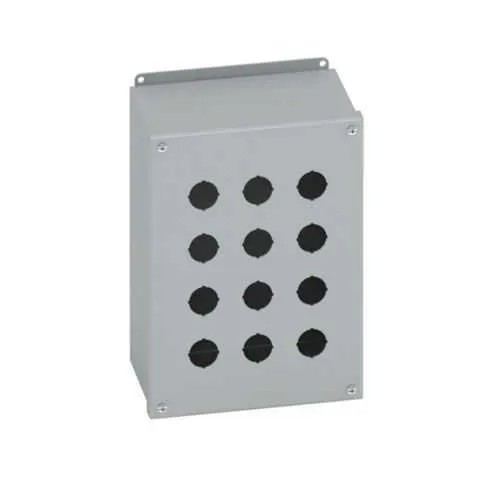

Eaton PBX25 Push Button Enclosures - Hinged Cover, NEMA 12
Part Number: PBX25
Quick Summary
Eaton PBX25 Push Button Enclosures protect control circuits in industrial panels and electrical enclosures. Engineers rely on rugged housings that endure harsh environments while preserving quick access for maintenance. This medium single-door enclosure is designed for surface installations with external mounting feet, supporting reliable use in control rooms, conveyors, and automation cabinets. A common challenge is balancing protection with serviceability; the PBX25 addresses this by offering a hinged cover, removable lid, and recessed pull ring for fast, tool-free access. Built from carbon steel with a 14 gauge wall and ANSI 61 gray finish, it aligns with durability expectations and vendor support. It carries a NEMA 12 rating for dust and light oil protection and is manufactured in the US, ensuring traceability and a reliable supply chain. When you specify Eaton, you gain consistent compatibility with B-Line accessories and labor-saving installation.
Product Information
Extended Description
PBX25 Eaton: Eaton B-Line series push button enclosures, 14" height, 4.75" length, 13" width, NEMA 12, Hinged cover, PBX enclosure, Surface mounted, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series push button enclosures
Catalog Number
PBX25
UPC
782051702262
Product Length/Depth
4.75 in
Product Height
14 in
Product Width
13 in
Product Weight
14.6 lb
Compliances
Not Applicable
Certifications
Not Applicable
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
PBX enclosure
Cover type
Hinged
Mounting method
Surface
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Removable cover, recessed pull ring, plated screws
NEMA Rating
12
Country of origin
US
Surface mounting with external feet provides flexible installation in tight panels, enabling quick relocation if line layouts change. This approach reduces field work and engineering time while maintaining structural integrity. Hinged and removable covers, along with a recessed pull ring, streamline maintenance cycles; technicians can access components without removing the entire enclosure, cutting downtime and boosting equipment availability. The carbon steel body with a 14 gauge wall and ANSI 61 gray painted finish delivers robust protection in typical plant environments, while an oil-resistant gasket adds an extra barrier against minor exposure. A NEMA 12 rating addresses dust and light oil ingress, aligning with common industrial protection needs for control panels in manufacturing. External mounting feet and surface-mount compatibility simplify retrofits, while plated screws and removable cover support quick upgrades and long-term serviceability.
Get a Quick Quote for a Eaton PBX25
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PBX25?
Enquire Now
FAQs
PBX25 is designed for surface mounting with external mounting feet, enabling secure installation on flat panels and machine frames. It supports external feet mounting to simplify alignment and upgrade workflows.
The enclosure measures 14 in high, 13 in wide, and 4.75 in deep, with a weight of 14.6 lb. It uses a 14-gauge carbon steel shell with ANSI 61 gray paint.
Yes. PBX25 carries a NEMA 12 rating, providing protection against dust and light oil exposure, making it appropriate for typical factory floors and automation cabinets.
Download the Pushbutton-enclosure-operator.pdf catalog and the Eaton Specification Sheet PBX25 for detailed dimensions, materials, and installation guidelines.
Removable cover, recessed pull ring, and plated screws enable quick access and service. The external feet, hinged cover, and compatibility with B-Line accessories simplify retrofits and long-term maintenance.
