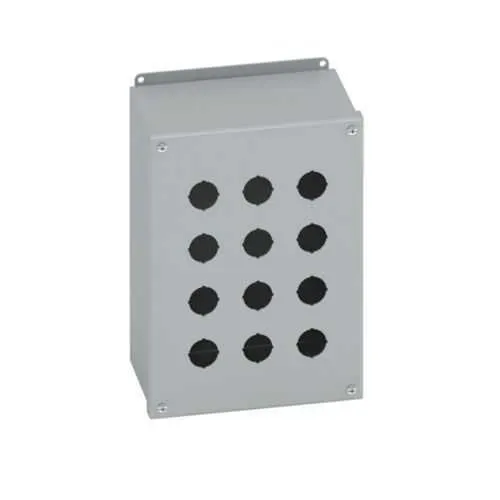

Eaton PBX36 Push Button Enclosures - NEMA 12, Surface Mount
Part Number: PBX36
Quick Summary
PBX36 Push Button Enclosures by Eaton protect control electronics in industrial panels, delivering rugged protection and organized operator interfaces. Installers often struggle with mounting flexibility, weather sealing, and space constraints, especially in tight machine rooms; this enclosure design addresses those challenges with surface mounting, external feet, and a hinged cover for rapid access. The unit carries a NEMA 12 rating and features a carbon steel body with a 14 gauge wall and an oil-resistant gasket, finished in ANSI 61 gray paint to resist wear in busy environments. Removable cover and recessed pull ring streamline maintenance, while the combination of robust construction and clean aesthetics supports efficient panel builds and durable operator interfaces. These qualities translate to lower downtime and faster commissioning for modern control panels.
Product Information
Extended Description
PBX36 Eaton: Eaton B-Line series push button enclosures, 16.25" height, 4.75" length, 15.25" width, NEMA 12, Hinged cover, PBX enclosure, Surface mounted, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series push button enclosures
Catalog Number
PBX36
UPC
782051702309
Product Length/Depth
4.75 in
Product Height
16.25 in
Product Width
15.25 in
Product Weight
18.2 lb
Compliances
Not Applicable
Certifications
Not Applicable
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
PBX enclosure
Cover type
Hinged
Mounting method
Surface
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Removable cover, recessed pull ring, plated screws
NEMA Rating
12
Country of origin
US
Carbon steel construction with 14 gauge wall thickness delivers rugged protection for electrical components in manufacturing environments, reducing the risk of damage from mechanical stress and incidental contact. This translates to fewer field failures and lower maintenance costs, especially for mid-size control panels that demand reliable protection without oversized enclosures. The oil-resistant gasket enhances sealing performance against lubricants and incidental liquids, improving reliability in machinery bays and equipment rooms where exposure to oils is common. A hinged, removable cover simplifies component access during commissioning and routine service, accelerating maintenance tasks and minimizing downtime. External mounting feet support straightforward surface installation on flat surfaces or existing frames, enabling quick retrofits and modular expansion without reworking surrounding infrastructure. The ANSI 61 gray finish and painted carbon steel body provide a durable, industry-ready appearance that aligns with standard panel aesthetics while withstanding daily wear. Overall, PBX36 supports compliant, efficient panel assembly with predictable service life and reduced lifecycle costs.
Get a Quick Quote for a Eaton PBX36
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PBX36?
Enquire Now
FAQs
PBX36 is designed for surface mounting with external mounting feet, enabling straightforward installation on flat panels or machine frames. Its dimensions—16.25 in high, 15.25 in wide, and 4.75 in deep—provide a predictable footprint for panel layouts. For retrofit projects, align mounting feet with existing drilled patterns and use appropriate hardware to secure the enclosure to a rigid surface, ensuring a reliable seal with the hinged cover closed.
PBX36 uses carbon steel construction with a 14 gauge wall, finished with paint in ANSI 61 gray. The exterior is designed to resist wear in busy industrial environments, while the oil-resistant gasket helps maintain sealing integrity against lubricants and minor exposure to contaminants. This combination supports durable, low-maintenance operation in mid-sized control panel installations.
PBX36 is rated NEMA 12, which protects against dust and light liquid exposure in indoor or controlled environments. It is not specified for washdown or outdoor exposure with higher ingress protection. For harsh washdown or weather-exposed areas, consider enclosures with higher IP ratings and explicit outdoor suitability to ensure reliable performance.
PBX36 carries a NEMA 12 rating and is produced in the US. The product data lists ‘Not Applicable’ for other certifications, so users should plan for NEMA 12 compliance in related documentation and ensure integration with their internal standards where applicable.
The removable cover with a recessed pull ring and plated screws enables quick access during routine maintenance, minimizing downtime. An oil-resistant gasket maintains sealing integrity, reducing leak-related interruptions. External mounting feet accelerate installation and future rework, supporting modular upgrades and longer service life for machine control panels.
