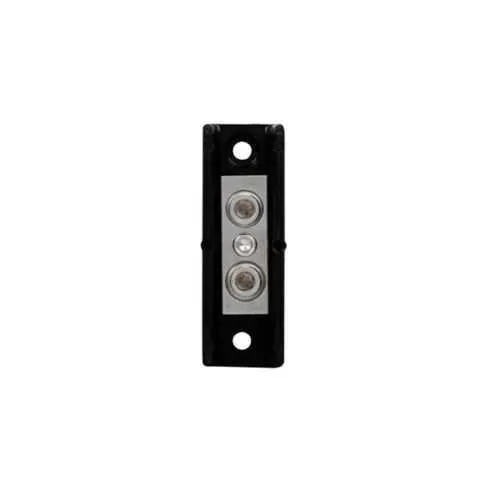

Eaton PDB204-1 Power Distribution Block - IP-20 Finger-safe
Part Number: PDB204-1
Quick Summary
The Eaton PDB204-1 power distribution block provides compact, reliable panel power distribution for control cabinets. Engineers often struggle with finger-safe access, space constraints, and achieving high fault protection in tight panel layouts. Key specs include IP-20 finger-safe protection and an SCCR of 200 kAIC, enabling safe, high-energy installations. Designed for panel mounting in industrial environments, it supports fast wiring, robust protection, and scalable current handling, delivering tangible business value through safer installations and reduced downtime. As part of the Eaton Bussmann series, it also aligns with RoHS practices and helps streamline procurement for automation projects while maintaining reliability across motor drives and PLC panels.
Product Information
Extended Description
PDB204-1 Eaton: Eaton Bussmann series PDB power distribution block, IP-20 Finger-safe, 600 Vac, 600 Vdc, 175 A, Single-pole, SCCR: 200 kAIC, Panel, Tin-plated aluminum connectors
Product Name
Eaton Bussmann series PDB power distribution block
Catalog Number
PDB204-1
UPC
051712637732
EAN
5027590253888
Product Length/Depth
2.87 in
Product Height
1.65 in
Product Width
1.5 in
Product Weight
0.17 lb
Warranty
Not Applicable
Compliances
Contact factory RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
175A
Short-circuit rating
SCCR: 200 kAIC
Voltage rating
600 Vac, 600 Vdc
Material
Tin plated aluminum connectors
Number Of Poles
Single-pole
Type
Power distribution block
Mounting
Panel
Special features
IP-20 Finger-safe
Feature IP-20 finger-safe enclosure → Benefit enhances operator safety and reduces risk of incidental contact in live panels, supporting safer maintenance routines and lower PPE requirements; Application ideal for panel assemblies and control cabinet interiors. Feature 175 A current rating with 600 Vac/600 Vdc capability → Benefit enables reliable feeding of motors and drives, supporting higher load profiles without hot spots; Application suitable for machine control panels and automated conveyors. Feature SCCR of 200 kAIC → Benefit provides enhanced fault protection for high-energy systems, reducing the need for downstream protective devices and simplifying compliance reviews; Application valuable in power sections of motor drives and line controllers. Feature Tin-plated aluminum connectors → Benefit offers corrosion resistance and long-term reliability, lowering maintenance frequency and improving connection integrity; Application across harsh industrial environments. Feature Single-pole design with panel mounting → Benefit minimizes wiring complexity and enclosure footprint, enabling denser layouts and easier retrofits; Application in compact control panels and retrofit projects. Feature Compact dimensions (2.87 in x 1.5 in x 1.65 in) and light weight (0.17 lb) → Benefit reduces enclosure size impact while preserving current rating; Application supports space-constrained panels and modular automation architectures.
Get a Quick Quote for a Eaton PDB204-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PDB204-1?
Enquire Now
FAQs
When installing the PDB204-1, ensure panel mounting fits the single-pole form factor and that the enclosure provides IP-20 finger-safe access. Use the tin-plated aluminum connectors for reliable terminations and verify alignment with the panel wiring diagram. Tighten terminations to the manufacturer’s torque specification to maintain SCCR integrity and minimize loose connections that could cause heating.
The PDB204-1 is rated for 175 A with voltage support of 600 Vac/600 Vdc and an SCCR of 200 kAIC, enabling safe operation in high-energy panels and drives. Its robust connectors and compact footprint simplify wiring in motor drive and machine control applications, reducing bus bar length and improving fault discrimination while maintaining compliance with industrial safety standards.
The PDB204-1 is RoHS compliant, supporting sustainability goals and regulatory expectations in electronics assembly. Certifications are typically confirmed by the manufacturer; for Eaton, procurement can request specific certification documents as needed. This helps ensure machinery packages meet environmental and safety requirements for global deployments.
The device measures 2.87 in in length, 1.5 in in width, and 1.65 in in height, with a weight of 0.17 lb. This compact form factor minimizes enclosure footprint, enabling denser panel layouts and easier retrofits. Its panel-mount design also simplifies installation and reduces wiring obstruction in crowded control cabinets.
The PDB204-1 is well-suited for automation panels, control cabinets, motor drive power feeds, and machine control enclosures across manufacturing, packaging, and process industries. Its IP-20 protection, high SCCR, and high-current capability make it a strong fit for space-constrained panels that require safe, reliable power distribution for drives and controllers.
