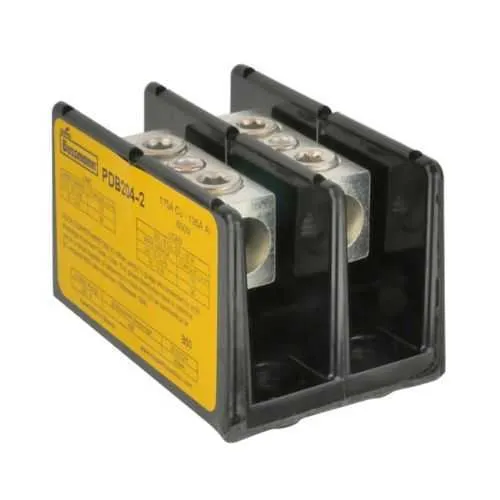

Eaton PDB204-2 Power Distribution Block - SCCR 200 kAIC
Part Number: PDB204-2
Quick Summary
Eaton PDB204-2 power distribution block is a compact panel-ready solution that distributes 600 V systems safely at up to 175 A. In tight control panels, wiring complexity and fault-current risk create reliability and safety challenges; this block simplifies connections while maintaining essential protection. RoHS compliant with a 200 kAIC short-circuit rating, certifications are provided by the manufacturer as applicable. The tin-plated aluminum connectors and panel-mount footprint deliver robust, corrosion-resistant performance in demanding environments, supporting reliable panel integration. Secondary benefits include streamlined wiring, reduced installation time, and improved maintenance workflows, making it a practical choice for industrial automation projects and electrical distribution upgrades.
Product Information
Extended Description
PDB204-2 Eaton: Eaton Bussmann series PDB power distribution block, 600 V, 175 A, Two-pole, SCCR: 200 kAIC, Panel, Tin-plated aluminum connectors
Product Name
Eaton Bussmann series PDB power distribution block
Catalog Number
PDB204-2
UPC
051712001700
Product Length/Depth
2.88 in
Product Height
1.75 in
Product Width
2.14 in
Product Weight
0.3 lb
Compliances
Contact factory RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
175A
Short-circuit rating
SCCR: 200 kAIC
Voltage rating
600 V
Material
Tin plated aluminum connectors
Number Of Poles
Two-pole
Number of terminals
2
Operating Temperature
-20° to 120°C
Type
Power distribution block
Mounting
Panel
Mounting method
Panel
Feature: 600 V electrical rating. Business impact: Enables safe operation across common industrial control voltages while maintaining high fault tolerance. Application: Panel-mounted power distribution in machine controls and process automation. Feature: 175 A amperage rating. Business impact: Supports high-current loads with minimized heat and voltage drop. Application: Main distribution for compact control panels in manufacturing environments. Feature: 200 kAIC SCCR. Business impact: Improves safety margins for short-circuit events and reduces protection coordination risk. Application: Heavy-duty packaging, conveying, and automation lines. Feature: Two-pole, two terminals. Business impact: Simplifies wiring topology, saving time during panel build and troubleshooting. Application: Clean, compact distribution for dual-leg feeds. Feature: Tin-plated aluminum connectors. Business impact: Enhances corrosion resistance and long-term reliability in harsh environments. Application: Outdoor or workshop suites with exposure to contaminants. Feature: Panel mounting. Business impact: Reduces enclosure footprint and simplifies installation with standard panel hardware. Application: Control panels and electrical cabinets. Feature: RoHS compliant. Business impact: Supports compliance with environmental and procurement standards. Application: Modern industrial facilities seeking sustainable components. Feature: Operating temperature -20° to 120°C. Business impact: Maintains performance across typical factory climates and heated environments. Application: Automotive, food & beverage, and general industrial automation. Feature: Compact dimensions 2.88 in L × 2.14 in W × 1.75 in H. Business impact: Saves panel space and simplifies integration in dense electrical layouts. Application: Space-constrained control panels and equipment cabinets.
Get a Quick Quote for a Eaton PDB204-2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PDB204-2?
Enquire Now
FAQs
The PDB204-2 is a two-pole, panel-mounted distribution block rated at 600 V and 175 A, with SCCR of 200 kAIC. It uses tin-plated aluminum connectors, supports RoHS compliance, and is designed for panel mounting in industrial control applications.
Yes. The PDB204-2 is explicitly designed for panel mounting with a compact footprint (2.88 in L × 2.14 in W × 1.75 in H) and two terminals, making it ideal for space-constrained control panels and electrical cabinets.
SCCR, or short-circuit current rating, at 200 kAIC indicates the maximum fault current the block can safely withstand without damage. This is critical for selecting a block that aligns with the system’s fault current and protection scheme in industrial environments.
The part is RoHS compliant and operates from -20°C to 120°C, with tin-plated aluminum connectors providing corrosion resistance. Certifications are listed as manufacturer-specific, so confirm with Eaton for any additional accreditations.
You can view the Eaton Specification Sheet for PDB204-2 on Eaton’s site via the provided asset link in the product data, which includes detailed electrical ratings, dimensions, and mounting instructions.
