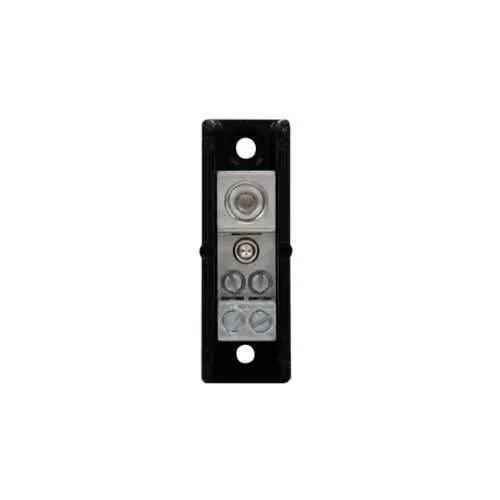

Eaton PDB220-1 Power Distribution Block - IP-20 Finger-safe
Part Number: PDB220-1
Quick Summary
The PDB220-1 power distribution block from Eaton is a compact, high-performance solution for safely routing power within panels and control cabinets. Engineers often struggle with limited space and finger-access risks in tight automation layouts, but this block combines a small footprint with rugged electrical performance to simplify installs. With IP-20 finger-safe protection and RoHS compliance, it aligns with common safety and regulatory expectations while delivering reliable current handling. The device also supports a broad voltage window (600 Vac and 600 Vdc) and robust SCCR ratings, making it suitable for mixed AC/DC panel networks. In practice, this translates to faster panel assembly, cleaner wiring, and reduced downtime in production lines.
Product Information
Extended Description
PDB220-1 Eaton: Eaton Bussmann series PDB power distribution block, IP-20 Finger-safe, 600 Vac, 600 Vdc, 175 A, Single-pole, SCCR: 200 kA (12 To 4 AWG), 100 kA (14 To 4 AWG), Panel, Tin-plated aluminum connectors
Product Name
Eaton Bussmann series PDB power distribution block
Catalog Number
PDB220-1
UPC
051712637725
Product Length/Depth
2.85 in
Product Height
1.68 in
Product Width
1.6 in
Product Weight
0.19 lb
Warranty
Not Applicable
Compliances
Contact factory RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
175A
Short-circuit rating
SCCR: 200 kAIC (#12-4 AWG), 100 kAIC (#14-4 AWG)
Voltage rating
600 Vac, 600 Vdc
Material
Tin plated aluminum connectors
Number Of Poles
Single-pole
Type
Power distribution block
Mounting
Panel
Special features
IP-20 Finger-safe
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - PDB220-1
Feature: 175 A amperage rating → Business impact: enables safe, single-block distribution for moderate to high-load panels without overdesign → Application: servo drives and motor starters in compact control cabinets. Feature: 600 Vac and 600 Vdc voltage rating → Business impact: supports both AC and DC control circuits within a single block, reducing part variety → Application: mixed-voltage automation panels and machine controls. Feature: SCCR up to 200 kAIC (#12-4 AWG) and 100 kAIC (#14-4 AWG) → Business impact: higher fault-current resilience, improving panel safety margins and reducing risk during faults → Application: high-energy drives and power rails in manufacturing lines. Feature: IP-20 finger-safe construction → Business impact: safer wiring and servicing, minimizing operator hazard during maintenance → Application: front-panel or DIN-rail style panel assemblies where finger protection is required. Feature: Tin-plated aluminum connectors → Business impact: corrosion resistance and reliable, long-term connections in harsh environments → Application: outdoor or semi-enclosed industrial enclosures. Feature: Panel mounting, single-pole design → Business impact: simple integration with minimal footprint, lowering installation time and panel complexity → Application: quick-turn installations in lean manufacturing setups and retrofit projects. In addition, compatible with standard Bussmann catalog practices and RoHS compliance supports streamlined procurement and regulatory alignment for panel builders, integrators, and OEMs.
Get a Quick Quote for a Eaton PDB220-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PDB220-1?
Enquire Now
FAQs
To install the PDB220-1, mount the unit on the panel as a panel-mount distribution block and connect conductors using compatible wire sizes (#12-4 AWG up to the listed SCCR). Ensure the IP-20 finger-safe covering remains in place and secure the block to the panel to maintain safety and enclosure integrity. Follow standard lockout/tagout procedures during wiring and verify connections are snug to minimize resistance and heat.
The PDB220-1 is rated for 175 A with a voltage rating of 600 Vac and 600 Vdc. Its short-circuit current rating (SCCR) is 200 kAIC for #12-4 AWG wires and 100 kAIC for #14-4 AWG wires, allowing high fault-current protection in panel systems while accommodating typical control electronics and motor-drive applications.
Yes. The PDB220-1 is RoHS compliant, reducing exposure to restricted substances in manufacturing and end-use environments. It is designed for panel mounting, offering a compact, safe, and tool-friendly solution for integrated power distribution within control panels and electrical cabinets.
The PDB220-1 measures 2.85 in in length (depth), 1.68 in in height, and 1.6 in in width, with a weight of approximately 0.19 lb. It is a single-pole power distribution block intended for panel mounting, using tin-plated aluminum connectors for durable, corrosion-resistant connections.
The product documentation indicates a Not Applicable warranty status. For ongoing support, refer to Eaton’s technical resources and the specific product catalog or contact Eaton support to confirm any limited warranties, service options, or replacement guidance applicable to your installation scenario.
