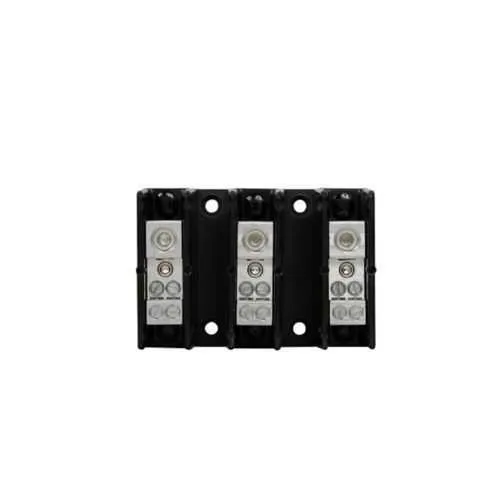

Eaton PDB220-3 Power distribution block - IP-20 Finger-safe
Part Number: PDB220-3
Quick Summary
The Eaton PDB220-3 power distribution block is a compact panel-mount device that safely distributes power up to 175 A in industrial control panels. Engineers often grapple with safe, accessible distribution within tight control enclosures, and the IP-20 finger-safe design alongside straightforward panel mounting addresses that challenge. While CE or SIL certifications aren’t listed, the RoHS compliance, IP rating, and SCCR ratings—200 kAIC (#12-4 AWG) and 100 kAIC (#14-4 AWG)—provide critical safety and reliability context. This block complements standard panel hardware and adds a reliable, scalable option for power management and distribution applications, supporting efficient installations and easier maintenance.
Product Information
Extended Description
PDB220-3 Eaton: Eaton Bussmann series PDB power distribution block, IP-20 Finger-safe, 600 Vac, 600 Vdc, 175 A, Three-pole, SCCR: 200 kA (12 To 4 AWG), 100 kA (14 To 4 AWG), Panel, Tin-plated aluminum connectors
Product Name
Eaton Bussmann series PDB power distribution block
Catalog Number
PDB220-3
UPC
051712637787
Product Length/Depth
2.9 in
Product Height
2.12 in
Product Width
4.25 in
Product Weight
0.84 lb
Warranty
Not Applicable
Compliances
Contact factory RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
175A
Short-circuit rating
SCCR: 200 kAIC (#12-4 AWG), 100 kAIC (#14-4 AWG)
Voltage rating
600 Vac, 600 Vdc
Material
Tin plated aluminum connectors
Number Of Poles
Three-pole
Type
Power distribution block
Mounting
Panel
Special features
IP-20 Finger-safe
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - PDB220-3
Three-pole construction with a 175 A rating enables centralized distribution from a single source, reducing wiring complexity and improving fault isolation in control panels. This translates to higher system uptime and simpler protection coordination for panel-mounted power circuits, especially in compact cabinets used for drives and automation controllers. IP-20 finger-safe protection paired with RoHS compliance enhances operator safety and environmental responsibility. Tin-plated aluminum connectors resist corrosion in harsh industrial environments, lowering maintenance frequency and improving long-term reliability in outdoor or damp enclosures. SCCR ratings of 200 kAIC for #12-4 AWG and 100 kAIC for #14-4 AWG provide robust short-circuit margins that reduce upstream device requirements, simplifying panel fabrication and commissioning. Voltage rating of 600 Vac and 600 Vdc enables mixed AC/DC panel configurations, reducing the need for multiple blocks and simplifying inventory. With a panel-mount footprint and tin-plated connectors, installation is straightforward, and future expansion can be planned without changing the distribution block. Compact form factor—2.9 in deep, 2.12 in high, and 4.25 in wide—along with a lightweight 0.84 lb weight aids cabinet fill calculations and commissioning speed, enabling repeatable, scalable deployments across multiple enclosures.
