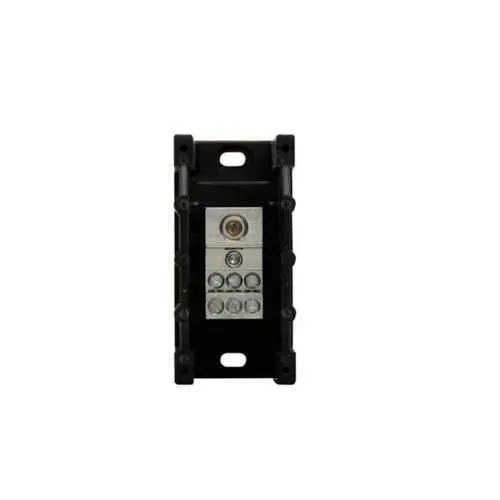

Eaton PDB321-1 Power Distribution Block - IP-20 Finger-safe
Part Number: PDB321-1
Quick Summary
The Eaton PDB321-1 power distribution block provides reliable, panel-mounted power distribution for industrial control panels. Engineers often wrestle with compact, high-current blocks that must fit tight spaces while maintaining finger-safe operation. With an IP-20 finger-safe design, an SCCR of 200 kAIC, and a voltage rating of 600 Vac / 600 Vdc, it meets rigorous safety and performance requirements. Its tin-plated aluminum connectors and a compact 5.25 in L x 3.5 in H footprint simplify integration into existing enclosures, reducing wiring time and paneI real estate. Suitable for panel-mount power distribution in automation, it aligns with RoHS-compliant materials and Eaton Bussmann series components for scalable, dependable control systems.
Product Information
Extended Description
PDB321-1 Eaton: Eaton Bussmann series PDB power distribution block, IP-20 Finger-safe, 600 Vac, 600 Vdc, 175 A, Single-pole, SCCR: 200 kA, Panel, Tin-plated aluminum connectors
Product Name
Eaton Bussmann series PDB power distribution block
Catalog Number
PDB321-1
UPC
051712637848
Product Length/Depth
5.25 in
Product Height
3.5 in
Product Width
2.5 in
Product Weight
0.57 lb
Warranty
Not Applicable
Compliances
Contact factory RoHS Compliant
Amperage Rating
175A
Short-circuit rating
SCCR: 200 kAIC
Voltage rating
600 Vac, 600 Vdc
Material
Tin plated aluminum connectors
Number Of Poles
Single-pole
Type
Power distribution block
Mounting
Panel
Special features
IP-20 Finger-safe
Feature IP-20 Finger-safe protection → Business Impact Safer operator interfaces and reduced risk of accidental contact in busy panels, contributing to lower safety incidents and compliant maintenance procedures. Application Panel-mounted distribution blocks in automation environments with restricted access require finger-safe design for uptime and safety. Feature 175 A amperage rating → Business Impact Supports high-current loads without overheating, enabling reliable feeder distribution for machinery and packaging lines. Application Ideal for machine builders and process lines that demand robust current handling in compact form factors. Feature 600 Vac / 600 Vdc voltage rating → Business Impact Provides versatile AC and DC distribution in mixed-supply systems, reducing the need for multiple blocks and simplifying panel design. Application Control panels with mixed supply requirements in manufacturing and material handling. Feature SCCR 200 kAIC and single-pole construction → Business Impact High short-circuit withstand capability minimizes fault propagation and protects downstream equipment. Application Suitable for critical control circuits in automation cabins and power racks where fault tolerance matters. Feature Tin-plated aluminum connectors → Business Impact Durable, corrosion-resistant connections that extend life and reduce maintenance costs. Application Harsh-environment panels and long-life installations in manufacturing plants. Feature Panel mounting with compact footprint (5.25 in L × 3.5 in H × 2.5 in W) → Business Impact Saves panel space and supports easier retrofit or expansion projects. Application Retrofit projects or new line builds where space is at a premium. Feature RoHS compliant materials → Business Impact Supports regulatory compliance and sustainability programs, mitigating end-of-life disposal risk. Application Global manufacturing environments with RoHS specifications and responsible sourcing requirements.
Get a Quick Quote for a Eaton PDB321-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PDB321-1?
Enquire Now
FAQs
To install the PDB321-1, align the block with your panel mounting area and secure it to the panel as a panel-mount device. Connect conductors to the tin-plated aluminum connectors, ensuring proper conductor sizing for up to 175 A. Verify IP-20 finger-safe access is maintained and route wiring to minimize stress on terminations. After installation, perform a continuity check and inspect for secure fasteners and clean electrical contacts to ensure reliable operation.
The PDB321-1 is rated for 175 A, with a voltage rating of 600 Vac / 600 Vdc and a short-circuit rating (SCCR) of 200 kAIC. It features IP-20 finger-safe protection and a single-pole configuration using tin-plated aluminum connectors. These specifications provide robust high-current distribution capability while maintaining safety and compatibility with both AC and DC control circuits in industrial panels.
Yes. With a 175 A rating and a 200 kAIC SCCR, the PDB321-1 is designed for demanding automation environments. Its panel-mount form factor and durable tin-plated aluminum connectors support reliable, long-term service in machine builders and process lines, while the IP-20 finger-safe design reduces operator risk during routine maintenance or fault isolation.
The PDB321-1 features IP-20 finger-safe protection and RoHS-compliant materials. Its high SCCR rating and 600 Vac/600 Vdc operation meet typical industrial safety and performance requirements. For additional RoHS or component-level certifications, users should consult the factory guidance, especially for specific regional compliance needs.
The block uses tin-plated aluminum connectors, promoting corrosion resistance and durable terminations that reduce maintenance intervals. Its RoHS-compliant materials support environmentally responsible lifecycle management. The compact, lightweight design simplifies handling and reduces shipping costs, contributing to lower total cost of ownership over the device's service life in automation projects.
