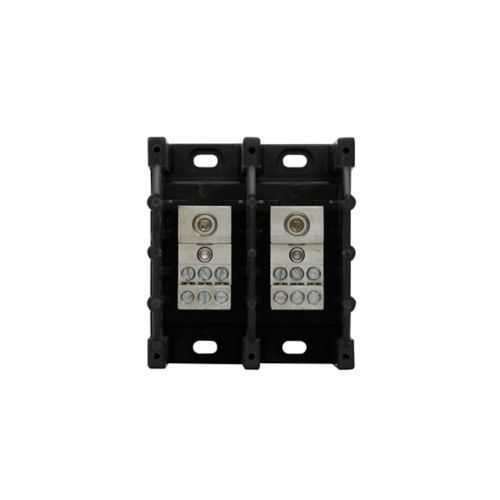

Eaton PDB321-2 Power distribution block - IP-20
Part Number: PDB321-2
Quick Summary
PDB321-2 power distribution block from Eaton delivers compact, panel-mount distribution for control cabinets. Engineers often struggle with safe, high-current distribution in tight panel spaces, leading to wiring errors and downtime; this block addresses space, safety, and fault tolerance. It offers IP-20 finger-safe protection, a high SCCR of 200 kAIC, and supports both 600 Vac and 600 Vdc at 175 A. With tin-plated aluminum connectors and RoHS compliance, it delivers durable performance in harsh industrial environments, helping maintain uptime while simplifying sourcing and installation. By combining rugged construction with easy panel integration, it provides real business value for machine builders and maintenance teams.
Product Information
Extended Description
PDB321-2 Eaton: Eaton Bussmann series PDB power distribution block, IP-20 Finger-safe, 600 Vac, 600 Vdc, 175 A, Two-pole, SCCR: 200 kA, Panel, Tin-plated aluminum connectors
Product Name
Eaton Bussmann series PDB power distribution block
Catalog Number
PDB321-2
UPC
051712637855
Product Length/Depth
3.95 in
Product Height
3.2 in
Product Width
3.62 in
Product Weight
0.95 lb
Warranty
Not Applicable
Compliances
Contact factory RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
175A
Short-circuit rating
SCCR: 200 kAIC
Voltage rating
600 Vac, 600 Vdc
Material
Tin plated aluminum connectors
Number Of Poles
Two-pole
Type
Power distribution block
Mounting
Panel
Special features
IP-20 Finger-safe
PDB321-2~POWER DISTRIBUTION BLOCK
PDB321-2~POWER DISTRIBUTION BLOCK
Bussmann series Fuseology
Eaton Specification Sheet - PDB321-2
Feature: 175 A amperage rating coupled with a two-pole design. Business Impact: Enables safe, reliable distribution of high-current circuits within compact panels, reducing wire size complexity and improving fault response. Application: Control panels in automated machinery and process lines. Feature: IP-20 Finger-safe housing. Business Impact: Enhances operator safety and minimizes accidental contact during maintenance, lowering risk and downtime. Application: Panel installation in manufacturing cells and machine enclosures. Feature: 600 Vac / 600 Vdc voltage rating. Business Impact: Supports mixed-AC and DC power distribution without multiple blocks, reducing footprint and inventory. Application: Inverter sections, DC feeders, and AC control circuits. Feature: SCCR 200 kAIC. Business Impact: Increases system protection against short-circuit events, enabling higher-capacity cabinets and safer, compliant installations. Application: Machine controls with stringent safety standards. Feature: Tin-plated aluminum connectors. Business Impact: Improves corrosion resistance and longevity in challenging environments, lowering maintenance costs. Application: Outdoor or damp industrial environments where connectors face exposure. Feature: Panel mounting and RoHS compliance. Business Impact: Simplifies installation and regulatory compliance, accelerating project timelines and reducing compliance risk. Application: OEM cabinet builds and service-redeployable control panels.
Get a Quick Quote for a Eaton PDB321-2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PDB321-2?
Enquire Now
FAQs
The PDB321-2 is designed for panel mounting with IP-20 finger-safe protection. When installing, ensure a suitable panel cutout accommodates its 3.95 in length, 3.2 in height, and 3.62 in width, and secure the unit to a sturdy panel to maintain alignment with tin-plated aluminum connectors for reliable electrical contact and long-term durability.
Yes. The block is rated for 600 Vac and 600 Vdc, with a 175 A amperage rating and SCCR of 200 kAIC. This makes it versatile for mixed AC and DC distributions within the same control cabinet, reducing the need for multiple block types.
The PDB321-2 is RoHS compliant and features IP-20 finger-safe protection. While specific third-party certifications may vary by region, Eaton provides RoHS compliance and the IP-20 safety rating as standard features, supporting safe operation in typical industrial environments.
This two-pole distribution block is ideal for control panels in machine builders and automation cabinets that require reliable high-current distribution, panel mounting, and safe operation in both AC and DC circuits. Its compact footprint and robust SCCR support broader deployment in process and machine automation.
The block’s tin-plated aluminum connectors provide corrosion resistance, reducing maintenance intervals in harsh environments. The panel-mount design simplifies installation, lowers commissioning time, and the high SCCR minimizes risk of damage during faults, contributing to lower lifecycle costs and improved uptime for automated systems.
