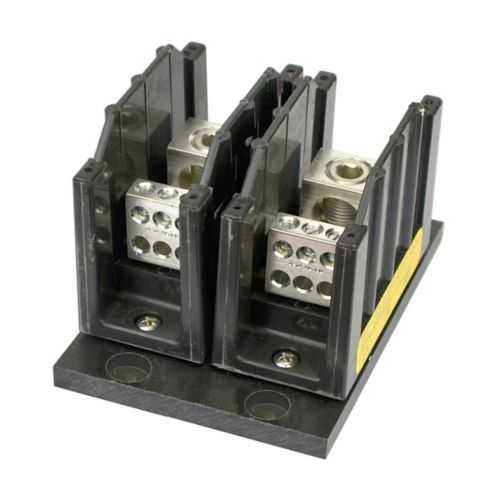

Eaton PDB323-2 Power Distribution Block - 200 kAIC
Part Number: PDB323-2
Quick Summary
Power Distribution Block PDB323-2 from Eaton safely distributes power in industrial control panels. Engineers often struggle with compact footprint requirements, high short-circuit ratings, and the need for reliable panel integration. This unit delivers 600 V, 310 A with SCCR up to 200 kAIC, and is RoHS compliant, with tin-plated aluminum connectors for robust, corrosion-resistant performance. The panel-mount design simplifies installation and reduces wiring complexity, supporting faster commissioning and easier maintenance. For procurement teams, this translates to a predictable, compliant power distribution solution that fits tight spaces without sacrificing safety or reliability.
Product Information
Extended Description
PDB323-2 Eaton: Eaton Bussmann series PDB power distribution block, 600 V, 310 A, Two-pole, SCCR: 200 kAIC, Panel, Tin-plated aluminum connectors
Product Name
Eaton Bussmann series PDB power distribution block
Catalog Number
PDB323-2
UPC
051712001731
Product Length/Depth
4 in
Product Height
3.325 in
Product Width
3.96 in
Product Weight
1.2 lb
Compliances
Contact factory RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
310A
Short-circuit rating
SCCR: 200 kAIC
Voltage rating
600 V
Material
Tin plated aluminum connectors
Number Of Poles
Two-pole
Number of terminals
7
Operating Temperature
-20° to 120°C
Type
Power distribution block
Mounting
Panel
Mounting method
Panel
Feature: 600 V, 310 A electrical rating in a two-pole design with SCCR 200 kAIC. Business Impact: Enables high-current distribution in a compact footprint, reducing enclosure size and part count. Application: Ideal for control panels and motor starter assemblies where space is at a premium and safety margins must be preserved. Feature: Tin-plated aluminum connectors providing corrosion resistance across (-20° to 120°C) operating conditions. Business Impact: Extends service life in harsh environments and lowers maintenance frequency. Application: Suitable for manufacturing floors, chemical plants, and outdoor enclosures where temperature swings occur. Feature: Panel mounting with seven terminals and a four-inch depth. Business Impact: Simplifies retrofit projects by matching common panel layouts and minimizing rework. Application: Panel builders upgrading legacy blocks or integrating new feeders in existing racks. Feature: RoHS compliant with manufacturer certifications. Business Impact: Supports regulatory compliance and supplier reliability for global deployments, reducing risk in audits and product recalls. Application: Electronics supply chains and system integrators needing traceable, compliant components. Feature: Durable construction with tin-plated aluminum connectors and a two-pole configuration. Business Impact: Improves electrical continuity and reduces contact resistance under load, contributing to overall system reliability. Application: Machine builders and automation integrators seeking robust, long-life power distribution in demanding environments.
Get a Quick Quote for a Eaton PDB323-2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PDB323-2?
Enquire Now
FAQs
The PDB323-2 is ideal for panel-mounted power distribution in control cabinets, machine panels, and automation racks. With a 600 V rating, 310 A capacity, and 200 kAIC SCCR, it supports high-current feeder distributions while keeping wiring organized. Its compact 4 in depth and seven-terminal layout simplify retrofits and new panel designs alike, reducing footprint and installation time on busy production floors.
Key specs include a 600 V voltage rating, 310 A amperage rating, SCCR of 200 kAIC, two-pole configuration, and seven terminals. The unit uses tin-plated aluminum connectors and operates from -20°C to 120°C, making it suitable for a wide range of industrial environments while maintaining reliable electrical performance.
Install the PDB323-2 as a panel-mounted block within the enclosure, ensuring proper clearance for the seven terminals and adequate cooling. The device has a 4 in depth and a 3.96 in width with a 3.325 in height, enabling a tidy fit in many standard panel cutouts. Verify conductor sizing and torque requirements per Eaton specifications and use tin-plated aluminum connectors for best contact integrity.
Compliances indicate RoHS compliance, with certifications explicitly labeled as 'Contact Manufacturer' for formal certifications. For high-stakes regulatory needs (CE, UL, IP), consult Eaton’s technical documentation or your distributor to confirm current certification status and any regional approvals required for your application.
Yes. The PDB323-2 consolidates high-current distribution into a compact, panel-ready block, reducing enclosure footprint and wiring complexity. With a robust SCCR and corrosion-resistant tin-plated connectors, it lowers maintenance, minimizes downtime, and simplifies compliance documentation. Its RoHS compliance further mitigates environmental risk, contributing to lower lifecycle costs in multi-site deployments.
