Eaton PDB323-3 Power Distribution Block - IP-20 Finger-safe
Part Number: PDB323-3
Quick Summary
The Eaton PDB323-3 power distribution block is a panel-mounted solution that provides safe, reliable power distribution for industrial control panels. Engineers often wrestle with space constraints, wiring complexity, and insufficient SCCR when expanding feeder connections, risking downtime and safety gaps. This device delivers IP-20 finger-safe protection, a 600 Vac/600 Vdc rating, and a short-circuit current rating up to 200 kAIC (with appropriate conductor sizes), helping meet stringent safety and reliability requirements. By streamlining wiring and enhancing fault protection, it supports scalable automation architectures while aligning with Eaton Bussmann-series components for consistent performance and easier maintenance across the panel stack.
Product Information
Extended Description

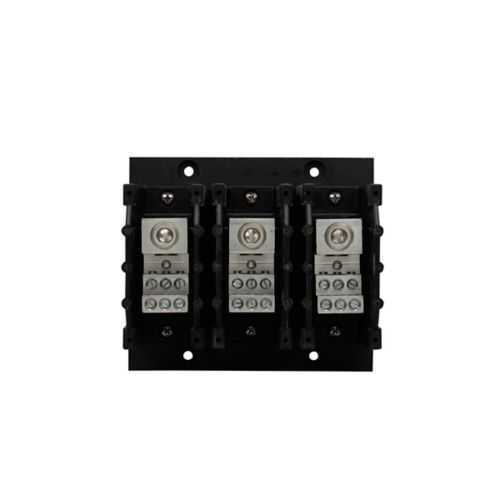

PDB323-3 Eaton: Eaton Bussmann series PDB power distribution block, IP-20 Finger-safe, 600 Vac, 600 Vdc, 310 A, Three-pole, SCCR: 200 kA (8 To 4 AWG), 100 kA (12 To 4 AWG), Panel, Tin-plated aluminum connectors
Product Name
Eaton Bussmann series PDB power distribution block
Catalog Number
PDB323-3
UPC
051712637817
Product Length/Depth
6.5 in
Product Height
3.74 in
Product Width
5.5 in
Product Weight
2.7 lb
Warranty
Not Applicable
Compliances
Contact factory RoHS Compliant
Amperage Rating
310A
Short-circuit rating
SCCR: 200 kAIC (#6-2 AWG), 100 kAIC (#14-2 AWG)
Voltage rating
600 Vac, 600 Vdc
Material
Tin plated aluminum connectors
Number Of Poles
Three-pole
Type
Power distribution block
Mounting
Panel
Special features
IP-20 Finger-safe
