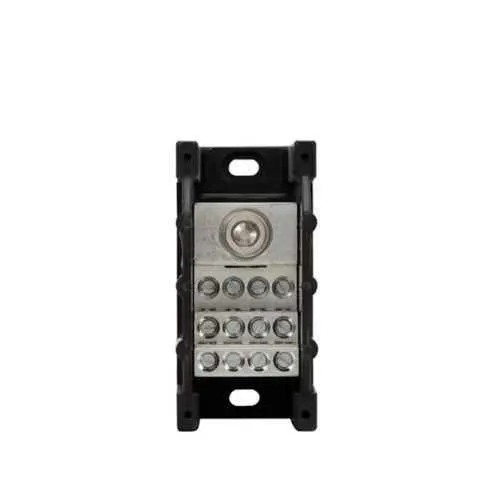

Eaton PDB370-1 Power Distribution Block - IP-20 Finger-safe
Part Number: PDB370-1
Quick Summary
Eaton PDB370-1 power distribution block provides safe, single-pole power distribution for industrial panels. Engineers often contend with finger-safe enclosures and the challenge of meeting high SCCR in compact control cabinets. It delivers IP-20 finger-safe protection, RoHS compliance, and a short-circuit rating up to 200 kAIC, supporting demanding electrical architectures. With a panel-mount footprint and tin-plated aluminum connectors, wiring is quicker and more reliable, reducing install time and field maintenance. This combination translates to lower total cost of ownership while maintaining safety, compliance, and performance in machinery and process automation.
Product Information
Extended Description
PDB370-1 Eaton: Eaton Bussmann series PDB power distribution block, IP-20 Finger-safe, 600 Vac, 600 Vdc, 310 A, Single-pole, SCCR: 200 kA (8 To 4 AWG), 100 kA (14 To 4 AWG), Panel, Tin-plated aluminum connectors
Product Name
Eaton Bussmann series PDB power distribution block
Catalog Number
PDB370-1
UPC
051712637763
Product Length/Depth
4 in
Product Height
3.22 in
Product Width
1.75 in
Product Weight
0.75 lb
Warranty
Not Applicable
Compliances
Contact factory RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
310A
Short-circuit rating
SCCR: 200 kAIC (#6-2 AWG), 100 kAIC (#14-2 AWG)
Voltage rating
600 Vac, 600 Vdc
Material
Tin plated aluminum connectors
Number Of Poles
Single-pole
Type
Power distribution block
Mounting
Panel
Special features
IP-20 Finger-safe
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - PDB370-1
The IP-20 Finger-safe enclosure mitigates personal injury risk while enabling safer panel wiring in compact spaces, improving operator safety and regulatory compliance in panel design. The 600 Vac / 600 Vdc voltage rating supports versatile power distribution across DC controls and AC systems, enabling designers to consolidate power rails without rework. The SCCR up to 200 kAIC (#6-2 AWG) and 100 kAIC (#14-2 AWG) delivers robust short-circuit protection for high-current machinery, reducing the need for downstream protection devices and improving system reliability. Tin-plated aluminum connectors resist corrosion and maintain low contact resistance in harsh environments, extending service intervals and cutting maintenance costs. With a 310 A amperage rating in a compact footprint, the PDB370-1 optimizes panel real estate, freeing space for control components and reducing enclosure costs. The panel-mount design (4 in x 3.22 in x 1.75 in) simplifies installation and wiring harness integration, while RoHS compliance supports regulatory acceptance in global markets. Overall, the PDB370-1 is a practical, high-performance solution for panel-mounted power distribution in industrial automation, machine builders, and OEM equipment requiring dependable current sharing and quick, clean wiring.
Get a Quick Quote for a Eaton PDB370-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PDB370-1?
Enquire Now
FAQs
The PDB370-1 supports heavy-gauge and smaller wiring options, with SCCR ratings specified for #6-2 AWG and #14-2 AWG conductors. This makes it suitable for both main power feeds and smaller control circuits in a single device, reducing connector diversity in the panel.
The PDB370-1 offers an SCCR of up to 200 kAIC for #6-2 AWG conductors and 100 kAIC for #14-2 AWG conductors, providing strong short-circuit resilience for high-current applications and helping to simplify the protection scheme in industrial panels.
Yes, the PDB370-1 is RoHS compliant. This means lead and certain other hazardous substances are restricted in the product, easing regulatory compliance for European Union and global markets and aligning with sustainable design practices in modern machinery.
The unit is panel-mountable with overall dimensions of 4 in length by 3.22 in height by 1.75 in width, enabling compact integration in control panels. Its slim footprint simplifies wiring routing and reduces enclosure footprint, supporting easier retrofits and scalable panel design.
Ideal for industrial control panels, machine wiring, and power distribution within automation systems, the PDB370-1 delivers high current capacity, robust SCCR, IP-20 finger-safe protection, and easy wiring through tin-plated aluminum connectors, making it a reliable choice for OEMs and panel builders seeking safe, efficient power distribution.
