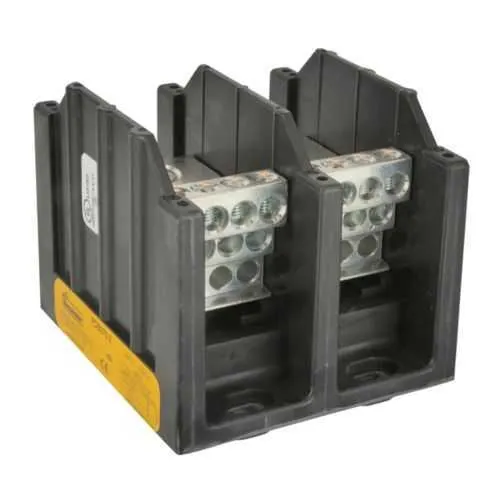

Eaton PDB370-2 Power Distribution Block - SCCR 200 kAIC
Part Number: PDB370-2
Quick Summary
The Eaton Bussmann PDB370-2 power distribution block provides panel-level power distribution for industrial equipment. Engineers often struggle with compact, high-current blocks that fit tight panel spaces while maintaining safety margins. Key safety and compliance anchors include RoHS compliance, a 600 V rating, SCCR of 200 kAIC, and a two-pole design. Mounted in a panel, it uses tin-plated aluminum connectors to deliver reliable current paths while resisting corrosion in harsh environments. The compact footprint—4 inches long by 3.96 inches wide by 3.325 inches high—and panel-mount design help optimize enclosure space and simplify installation. Backed by Eaton datasheets, this block supports control panels, industrial machinery, and other panel-fed systems with standard terminals and straightforward wiring.
Product Information
Extended Description
PDB370-2 Eaton: Eaton Bussmann series PDB power distribution block, 600 V, 310 A, Two-pole, SCCR: 200 kAIC, Panel, Tin-plated aluminum connectors, Operating temp -20° to 120°C
Product Name
Eaton Bussmann series PDB power distribution block
Catalog Number
PDB370-2
UPC
051712001748
Product Length/Depth
4 in
Product Height
3.325 in
Product Width
3.96 in
Product Weight
1.2 lb
Compliances
RoHS Compliant Contact factory
Certifications
Contact Manufacturer
Amperage Rating
310A
Short-circuit rating
SCCR: 200 kAIC
Voltage rating
600 V
Material
Tin plated aluminum connectors
Number Of Poles
Two-pole
Number of terminals
13
Operating Temperature
-20° to 120°C
Type
Power distribution block
Mounting
Panel
Mounting method
Panel
Feature: 600 V voltage rating with 310 A amperage and SCCR of 200 kAIC enables safe handling of demanding, high-current loads. Business impact: This reduces the need for supplementary blocks and simplifies wiring topology, improving panel density and serviceability. Application: Ideal for motor drives, feeders, and distribution points in OEM panels and industrial cabinets. Feature: Two-pole configuration with 13 terminals and tin-plated aluminum connectors. Business impact: Provides flexible current routing, strong contact integrity, and resistance to corrosion in harsh environments. Application: Fits compact panel footprints while allowing clean, scalable terminations for fast field wiring. Feature: Panel mounting with a compact footprint. Business impact: Saves enclosure space, simplifies retrofits, and accelerates installation schedules. Application: Control cabinets, machine enclosures, and other panel-fed systems in process and manufacturing environments. Feature: Operating temperature range from -20°C to 120°C. Business impact: Delivers reliable performance across ambient conditions, reducing spec-fit risk during design reviews. Application: Outdoor installations, high-heat production lines, and equipment exposed to thermal cycling. Feature: RoHS-compliant construction and tin-plated aluminum connectors. Business impact: Supports regulatory compliance and long-term reliability with low-maintenance materials. Application: Automotive, machinery, and industrial systems requiring durable, compliant power distribution.
Get a Quick Quote for a Eaton PDB370-2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PDB370-2?
Enquire Now
FAQs
PDB370-2 is designed for panel mounting with a fixed footprint of 4 in L, 3.96 in W, and 3.325 in H. Use standard panel cutouts and mounting screws to secure the unit in place; ensure proper clearance for connectors and wiring.
The block supports 600 V, 310 A, and an SCCR rating of 200 kAIC. It is a two-pole device with 13 terminals and tin-plated aluminum connectors, suitable for high-current distribution in panels.
Yes, the PDB370-2 is RoHS compliant and rated for -20°C to 120°C. Its tin-plated aluminum connectors and panel-mount design help resist corrosion and maintain reliable connections in industrial environments.
Absolutely. With a 310 A rating and 200 kAIC SCCR, two-pole configuration, and 13 terminals, the PDB370-2 is well-suited for motor drives, feeders, and other high-current panel applications.
The unit measures 4 in L × 3.96 in W × 3.325 in H and weighs about 1.2 lb, making it a compact choice for space-constrained control panels and retrofits.
