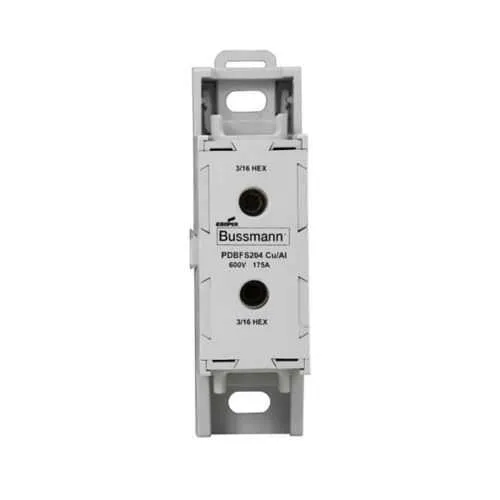

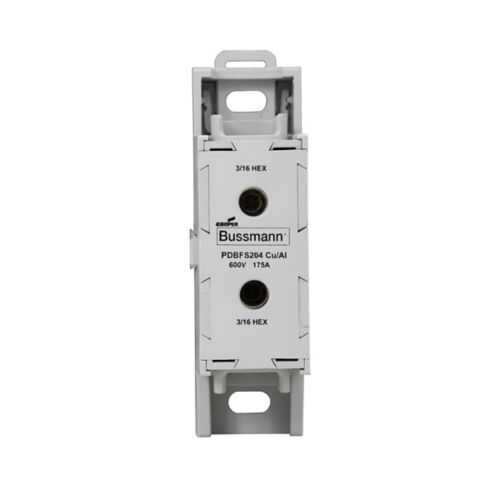

Eaton PDBFS204 Power Distribution Block - IP-20 Finger-safe
Part Number: PDBFS204
Quick Summary
The Eaton PDBFS204 power distribution block provides safe, compact power routing for DIN-rail panels in industrial control enclosures. Engineers often struggle with dense wiring, finger-safety concerns, and meeting high fault-current ratings in limited panel space. With IP-20 finger-safe protection, RoHS compliance, and a 200 kAIC SCCR, this block supports safe operation and regulatory readiness across automation lines. Its DIN rail and panel mounting options, along with tin-plated aluminum connectors, deliver flexible installation and long-term reliability while minimizing maintenance downtime. Designed for 175 A at 600 Vac or 600 Vdc, it scales across diverse control architectures while reducing total cost of ownership in modern facilities.
Product Information
Extended Description
PDBFS204 Eaton: Eaton Bussmann series PDBFS power distribution block, IP-20 Finger-safe, 600 Vac, 600 Vdc, 175 A, SCCR: 200 kA, DIN rail, panel, Tin-plated aluminum connectors
Product Name
Eaton Bussmann series PDBFS power distribution block
Catalog Number
PDBFS204
UPC
051712659802
Product Length/Depth
2.15 in
Product Height
3.7 in
Product Width
0.99 in
Product Weight
0.19 lb
Warranty
Not Applicable
Compliances
Contact factory RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
175A
Short-circuit rating
SCCR: 200 kAIC
Voltage rating
600 Vac, 600 Vdc
Material
Tin plated aluminum connectors
Type
Power distribution block
Mounting
DIN rail, panel
Special features
IP-20 Finger-safe
Bussmann series finger-safe, high SCCR power distribution plocks product profile no. 3137
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - PDBFS204
Bussmann series UL Listed finger-safe power distribution blocks data sheet no. 10536
High-current, high-SCCR capability translates to safer fault handling and reduced risk of cascading failures in motor drives and power distribution networks. This is critical for machine control panels where space is at a premium and uptime is non-negotiable. The IP-20 finger-safe design minimizes operator exposure during wiring and maintenance, increasing productivity and lowering safety incidents in busy enclosures. With a 175 A rating and dual voltage capability (600 Vac and 600 Vdc), the PDBFS204 supports mixed AC/DC loads within a single block, simplifying panel design and reducing part counts. Tin-plated aluminum connectors deliver corrosion resistance in harsh manufacturing environments, contributing to dependable connections and longer service life. DIN rail and panel mounting versatility enables fast, tool-efficient installations in new builds or retrofits, while the compact footprint and light weight (0.19 lb) save valuable panel space and facilitate scalable expansion. RoHS compliance ensures global deployment without regulatory hesitation, making this block suitable for multinational projects and standardization across facilities.
Get a Quick Quote for a Eaton PDBFS204
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PDBFS204?
Enquire Now
FAQs
Mounting is straightforward: attach the PDBFS204 to a standard DIN rail or panel as part of a control cabinet installation. Confirm compatibility by ensuring the rail length and available space permit the 2.15 in depth, 0.99 in width, and 3.7 in height footprint, and verify the panel thickness and mounting provisions meet your enclosure design. The unit’s tin-plated aluminum connectors simplify secure terminal connections and reduce torque requirements during installation.
The PDBFS204 is rated for 175 A, with voltage ratings of 600 Vac and 600 Vdc. It provides a short-circuit rating (SCCR) of 200 kAIC, supporting robust protection in high-current distributions. These specs enable reliable distribution for mixed AC/DC loads in industrial control panels and motors, while maintaining safety margins during faults.
Yes. With dual voltage support (600 Vac/600 Vdc) and a high SCCR, the PDBFS204 accommodates mixed AC/DC feeds common in automation equipment, machine controls, and drives. Its flexible mounting and finger-safe design make it ideal for compact control cabinets where space, safety, and reliability are critical.
The PDBFS204 carries RoHS compliance for global manufacturing and deployment. It features IP-20 finger-safe protection for safe wiring and maintenance. While specific listing bodies aren’t published in the data, the RoHS status and IP rating address key regulatory expectations for industrial components, with performance validated by the documented SCCR and voltage ratings.
Maintenance is minimized thanks to corrosion-resistant tin-plated aluminum connectors and a stable, vibration-tolerant DIN rail/panel mounting. The high current rating reduces the need for additional blocks, lowering wiring complexity and lifecycle costs. The compact footprint saves panel space, enabling denser machine architectures and faster retrofits, which translates to reduced downtime and a favorable return on investment over the equipment lifecycle.
