Eaton PDBFS220 Power distribution block - IP-20 Finger-safe
Part Number: PDBFS220
Quick Summary
Power distribution block is a compact Eaton PDBFS220 designed for safe DIN-rail installation in control panels. In crowded cabinets, wiring complexity and safety risks slow commissioning and complicate maintenance. This block delivers IP-20 finger-safe protection, supports up to 600 Vac and 600 Vdc, and offers SCCR of 200 kAIC (12-4 AWG) and 100 kAIC (14-4 AWG). DIN rail or panel mounting, tin-plated aluminum connectors, and RoHS-compliant design streamline installation, improve reliability, and support compliant, safer automation deployments in modern manufacturing environments. This combination helps reduce downtime, enhances safety, and aligns with industrial reliability targets for OEMs and end users alike.
Product Information
Extended Description
PDBFS220 Eaton: Eaton Bussmann series PDBFS power distribution block, IP-20 Finger-safe, 600 Vac, 600 Vdc, 175 A, SCCR: 200 kA (12 To 4 AWG), 100 kA (14 To 4 AWG), DIN rail, panel, Tin-plated aluminum connectors
Product Name
Eaton Bussmann series PDBFS power distribution block
Catalog Number
PDBFS220
UPC
051712659826
Product Length/Depth
3.7 in
Product Height
2.15 in
Product Width
0.99 in
Product Weight
0.21 lb
Warranty
Not Applicable
Compliances
Contact factory RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
175A
Short-circuit rating
SCCR: 200 kAIC (#12-4 AWG), 100 kAIC (#14-4 AWG)
Voltage rating
600 Vac, 600 Vdc
Material
Tin plated aluminum connectors
Type
Power distribution block
Mounting
DIN rail, panel
Special features
IP-20 Finger-safe

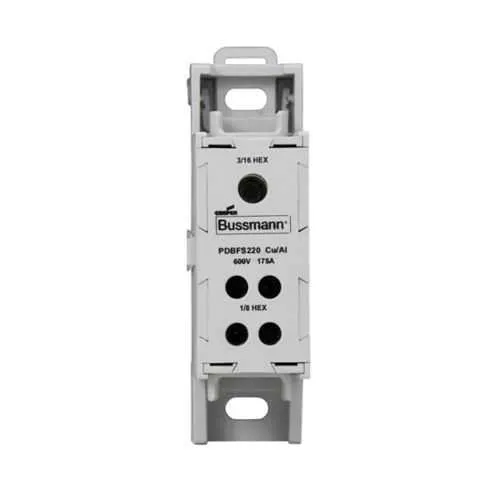

PDBFS220~PDB FINGER SAFE ASSEMBLY
PDBFS220~PDB FINGER SAFE ASSEMBLY
Bussmann series Fuseology
Eaton Specification Sheet - PDBFS220
Bussmann series UL Listed finger-safe power distribution blocks data sheet no. 10536
Feature: IP-20 finger-safe enclosure. Business Impact: Reduces operator risk and simplifies safety compliance in dense control panels, enabling faster startup and safer maintenance. Application: Ideal for high-density automation cabinets in machine builders and system integrators. Feature: 175 A amperage rating with 600 Vac and 600 Vdc voltage ratings. Business Impact: Supports demanding loads from drives and controllers while maintaining safe distribution. Application: Suitable for servo drives, motor starters, and feeder wiring in industrial automation. Feature: SCCR up to 200 kAIC (12-4 AWG) and 100 kAIC (14-4 AWG). Business Impact: Meets stringent short-circuit safety requirements, reducing fault propagation risk. Application: Critical in high-power panels for OEM equipment and process lines. Feature: Tin-plated aluminum connectors. Business Impact: Improves corrosion resistance and long-term reliability in challenging environments. Application: Harsh plant floors and polluted environments where connections must endure. Feature: DIN rail and panel mounting compatibility. Business Impact: Accelerates installation, minimizes space needs, and supports retrofit projects. Application: Standardized in most control panels and OEM housings, improving install efficiency. Feature: RoHS compliant construction. Business Impact: Ensures regulatory compliance across global markets, simplifying procurement and lifecycle support. Application: Meets contemporary environmental standards for industrial equipment.
