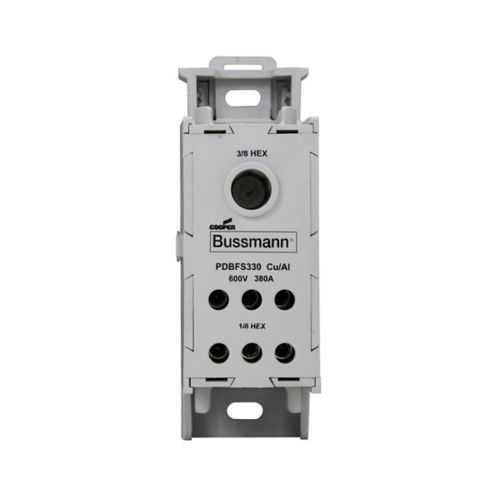

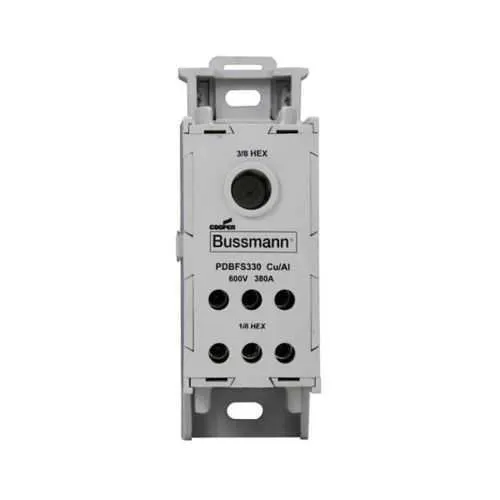

Eaton PDBFS330 Power Distribution Block - IP-20 Finger-safe
Part Number: PDBFS330
Quick Summary
Eaton PDBFS330 power distribution block provides panel-level power distribution for control cabinets and industrial machinery. Designers often struggle with finger-safe high-current blocks that fit tight panel spaces while meeting safety and regulatory requirements. It features IP-20 finger-safe protection and scalable SCCR ratings, including 200 kAIC for #6-2 AWG and 100 kAIC for #14-2 AWG, with RoHS compliance. This combination enables safer, more compact panel layouts without compromising performance. For integrators and manufacturers, the PDBFS330 delivers reliable, compliant power distribution that reduces wiring complexity, speeds assembly, and lowers overall installation costs through standardized fittings and dependable connectors.
Product Information
Extended Description
PDBFS330 Eaton: Eaton Bussmann series PDBFS power distribution block, IP-20 Finger-safe, 600 Vac, 600 Vdc, 380 A, SCCR: 200 kA (6 To 2 AWG), 100 kA (14 To 2 AWG), Panel, Tin-plated aluminum connectors
Product Name
Eaton Bussmann series PDBFS power distribution block
Catalog Number
PDBFS330
UPC
051712659864
Product Length/Depth
4.63 in
Product Height
2.98 in
Product Width
1.58 in
Product Weight
0.53 lb
Warranty
Not Applicable
Compliances
Contact factory RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
380A
Short-circuit rating
SCCR: 200 kAIC (#6-2 AWG), 100 kAIC (#14-2 AWG)
Voltage rating
600 Vac, 600 Vdc
Material
Tin plated aluminum connectors
Type
Power distribution block
Mounting
Panel
Special features
IP-20 Finger-safe
PDBFS330~PDB FINGER SAFE ASSEMBLY
PDBFS330~PDB FINGER SAFE ASSEMBLY
PDBFS330~PDB FINGER SAFE ASSEMBLY
Bussmann series Fuseology
Eaton Specification Sheet - PDBFS330
Bussmann series UL Listed finger-safe power distribution blocks data sheet no. 10536
Feature → Business Impact → Application: Panel-mounted design simplifies installation in control cabinets and machine enclosures, reducing mounting time and minimizing space requirements in tight panels. This power distribution block delivers 380 A continuous rating with a 600 Vac/600 Vdc capability, providing a wide operating window for mixed AC/DC systems in industrial automation and process control. The IP-20 finger-safe construction improves operator safety and aligns with common panel safety practices, lowering risk during maintenance and rework. The tin-plated aluminum connectors offer robust, corrosion-resistant terminations for long service life in harsh factory environments, decreasing maintenance cycles and costs. With RoHS compliance and a documented SCCR of up to 200 kAIC (#6-2 AWG) and 100 kAIC (#14-2 AWG), the PDBFS330 helps you meet regulatory and safety standards while maintaining high reliability in vertical and horizontal bus configurations. Compatibility with standard Bussmann series accessories simplifies stocking, reduces spare parts inventory, and accelerates procurement. Industry context indicates that eliminating bulky, non-compliant blocks can improve panel density by up to several percent, lowering installed weight and improving thermal management in cabinets.
Get a Quick Quote for a Eaton PDBFS330
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PDBFS330?
Enquire Now
FAQs
The PDBFS330 is designed for panel mounting inside standard control enclosures. It accommodates tin-plated aluminum connectors and supports wiring ranges up to #6-2 AWG for the high-current path and #14-2 AWG for smaller circuits, aligning with its 380 A rating and SCCR up to 200 kAIC. Ensure proper clearance, secure mounting, and compliant cable routing. Use RoHS-compliant components and follow your cabinet manufacturer's torque and termination practices as outlined in the Eaton datasheet.
The block carries a 380 A amperage rating with a voltage rating of 600 Vac and 600 Vdc. Its short-circuit rating (SCCR) is 200 kAIC for #6-2 AWG and 100 kAIC for #14-2 AWG. These specifications provide substantial safety margins for high-current, mixed-voltage panels, enabling design engineers to allocate protective devices with confidence and maintain compliance in demanding industrial environments.
Yes. With a 380 A rating, 600 Vac/600 Vdc capability, IP-20 finger-safe protection, and robust SCCR values, the PDBFS330 is well-suited for control panels in machinery and process industries. Its panel-mount form factor and tin-plated aluminum connectors support reliable, long-term operation in harsh factory environments while simplifying installation and maintenance.
The PDBFS330 is RoHS compliant, supporting environmental and regulatory requirements for modern industrial designs. Specific certifications (such as CE/UL) should be confirmed with the manufacturer, as the data indicates verification is performed with the supplier. IP-20 finger-safe protection further informs safety compliance for panel-mounted devices in general industrial applications.
The ROI comes from safer, more reliable power distribution, reduced maintenance intervals thanks to corrosion-resistant tin-plated connectors, and faster installation due to a compact, panel-friendly form factor. By meeting stringent SCCR ratings and providing RoHS compliance, the part helps minimize downtime, improve uptime in critical lines, and lower total cost of ownership over the life of the equipment.
