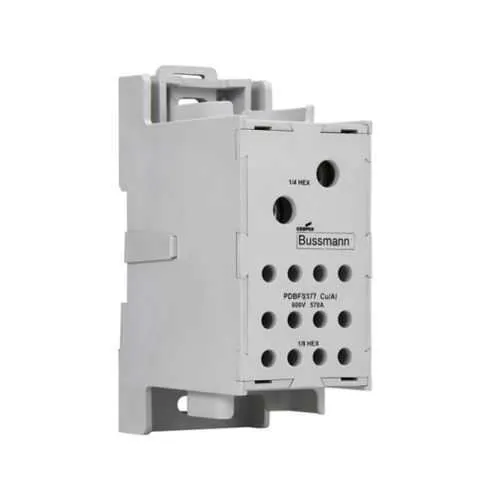

Eaton PDBFS377 Power Distribution Block - IP-20 Finger-safe
Part Number: PDBFS377
Quick Summary
PDBFS377 power distribution block delivers safe, high-current power distribution for control panels. It addresses common panel design challenges by providing reliable connections in tight spaces while maintaining finger-safe operation. The IP-20 finger-safe enclosure, 600 Vac and 600 Vdc rating, and up to 570 A support robust, compliant power distribution in demanding environments. With SCCR ratings up to 200 kAIC for larger conductors and 100 kAIC for smaller runs, it enhances fault tolerance and reduces risk in critical machinery. RoHS compliance supports global manufacturing, while DIN rail and panel mounting streamline installation. This combination delivers tangible business value through safer wiring, faster assembly, and improved uptime in automation cabinets.
Product Information
Extended Description
PDBFS377 Eaton: Eaton Bussmann series PDBFS power distribution block, IP-20 Finger-safe, 600 Vac, 600 Vdc, 570 A, SCCR: 200 kA (8 To 4 AWG), 100 kA (14 To 4 AWG), DIN rail, panel, Tin-plated aluminum connectors
Product Name
Eaton Bussmann series PDBFS power distribution block
Catalog Number
PDBFS377
UPC
051712659901
Product Length/Depth
4.6 in
Product Height
2.94 in
Product Width
1.86 in
Product Weight
0.74 lb
Warranty
Not Applicable
Compliances
Contact factory RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
570A
Short-circuit rating
SCCR: 200 kAIC (#6-2 AWG), 100 kAIC (#14-2 AWG)
Voltage rating
600 Vac, 600 Vdc
Material
Tin plated aluminum connectors
Type
Power distribution block
Mounting
DIN rail, panel
Special features
IP-20 Finger-safe
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - PDBFS377
Bussmann series UL Listed finger-safe power distribution blocks data sheet no. 10536
Feature: IP-20 finger-safe design provides enhanced user protection in crowded control panels. Business Impact: reduces unwanted contact injuries and supports safer maintenance routines. Application: suitable for industrial automation cabinets and machine housings where accessible live parts must be restricted. Feature: Compact footprint for DIN rail and panel mounting. Business Impact: enables denser panel layouts and easier retrofits without expanding enclosure size. Application: retrofit projects, small-footprint control panels, and modular automation architectures. Feature: High current rating of 570 A with 600 Vac and 600 Vdc voltage capability. Business Impact: supports powerful drives and multi-channel distribution with minimal voltage drop. Application: motor control, power distribution for drives, and large I/O blocks. Feature: SCR short-circuit rating up to 200 kAIC (#6-2 AWG) and 100 kAIC (#14-2 AWG). Business Impact: superior fault handling improves system safety and reduces downtime. Application: large-panel manufacturing lines and high-surge environments. Feature: Tin-plated aluminum connectors offer durability and corrosion resistance. Business Impact: longer service life in harsh environments reduces maintenance costs. Application: outdoor-rated or rugged industrial installations. Feature: RoHS compliant with straightforward compliance expectations. Business Impact: supports global sourcing and regulatory alignment. Application: multinational manufacturing, ISO certified facilities, and cross-border projects.
Get a Quick Quote for a Eaton PDBFS377
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PDBFS377?
Enquire Now
FAQs
Yes. PDBFS377 is designed for both DIN rail and panel mounting, offering a compact footprint (4.6 in L, 2.94 in H, 1.86 in W) and tin-plated aluminum connectors for reliable, space-efficient installation in standard control panels.
PDBFS377 provides a 570 A amperage rating with 600 Vac and 600 Vdc voltage ratings. Its short-circuit current rating (SCCR) is 200 kAIC for #6-2 AWG conductors and 100 kAIC for #14-2 AWG conductors, enabling safe fault withstand in demanding panel applications.
The IP-20 finger-safe design limits exposed live parts, reducing injury risk during maintenance. Tin-plated aluminum connectors improve corrosion resistance, supporting long service life in industrial environments while maintaining reliable conductivity and easy field termination.
Yes, the PDBFS377 is RoHS compliant, aligning with restricted substance regulations. Certifications are listed as manufacturer-specific, so confirm with Eaton for any additional regulatory documentation or regional approvals required for your facility.
Typical applications include industrial control panels, motor drive power distribution, and DIN rail-mounted distribution in automation cabinets. Benefits include safer wiring, reduced installation time, higher fault tolerance, and extended component life, contributing to lower maintenance costs and improved uptime in manufacturing environments.
