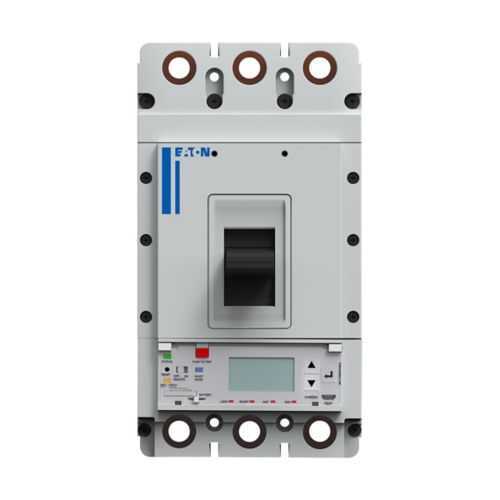

Eaton PDC53K1600D2WR Molded Case Circuit Breaker - 50kA/415V
Part Number: PDC53K1600D2WR
Quick Summary
Eaton Power Defense molded case circuit breaker protects power distribution panels by interrupting fault currents in industrial equipment. Maintenance teams face downtime when nuisance trips or slow fault isolation disrupt production. Certifications such as CE, UL, and IEC standards are common in this class, with exact approvals confirmed by the manufacturer. The PDC53K1600D2WR delivers high-current protection with Modbus RTU monitoring and rear-terminal installation, aligning with standardized control architectures. This combination supports uptime, safer switching, and scalable protection for modern automation systems.
Product Information
Extended Description
PDC53K1600D2WR Eaton: Power Defense IEC/CCC, Frame 5, Three Pole, 1600A, 50kA/415V, PXR20D LSI w/ Modbus RTU, ZSI & Relays, Rear Terminals-Included
Product Name
Eaton Power Defense molded case circuit breaker
Catalog Number
PDC53K1600D2WR
UPC
786689400279
Product Length/Depth
629 mm
Product Height
365 mm
Product Width
387 mm
Product Weight
34927 g
Compliances
Contact Manufacturer
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Power Defense Frame 6 Trip Unit How-To Video
Power Defense Frame 6 Trip Unit How-To Video
Power Defense Frame 6 Trip Unit How-To Video
Power Defense Frame 6 Trip Unit How-To Video
Power Defense Frame 6 Trip Unit How-To Video
Power Defense Frame 6 Trip Unit How-To Video
Power Defense Frame 6 Trip Unit How-To Video
Eaton Specification Sheet - PDC53K1600D2WR
Feature: Frame 5, three-pole, 1600A, 50kA/415V interrupt capability. Business Impact: High fault current protection minimizes equipment damage and unplanned downtime in demanding process lines. Application: Large-panel motor control centers and critical load feeders in manufacturing plants. Feature: PXR20D Local Sensing Interface (LSI) with Modbus RTU, ZSI and relays. Business Impact: Enables remote monitoring, diagnostics, and coordinated trip signaling for centralized SCADA integration. Application: Automated facilities with remote supervision and predictive maintenance needs. Feature: Rear terminals included for wiring convenience. Business Impact: Streamlines panel assembly, reduces installation time, and lowers field wiring errors. Application: New installations and retrofit projects in constrained or dense cabinet spaces. Feature: Power Defense IEC/CCC frame design. Business Impact: Supports regional deployment with consistent protection architecture across sites, improving engineering standardization. Application: Global manufacturing footprints and multi-site automation strategies. Feature: Dimensions and weight (629 mm L x 365 mm H x 387 mm W; ~34.9 kg). Business Impact: Clear panel planning and stable physical mounting reduce service interruptions during maintenance. Application: Enclosures and switchgear assemblies requiring precise fit and robust enclosure protection.These capabilities collectively enable installation agility, measurable uptime gains, and scalable protection for industrial automation environments.
Get a Quick Quote for a Eaton PDC53K1600D2WR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PDC53K1600D2WR?
Enquire Now
FAQs
For installation, ensure proper panel clearance and mounting space to accommodate the 629 mm length and 387 mm width. Use the rear terminals for simplified wiring runs and plan for Modbus RTU communication wiring to the trip unit. Verify enclosure rating and provide adequate heat dissipation around the device to maintain performance.
The unit features a 1600A rating with a 50kA interrupt capacity at 415V, three-pole configuration, and Frame 5 construction. This combination supports reliable interruption of high fault currents, minimizing conductor damage and equipment downtime in demanding applications such as large motors and process lines.
Modbus RTU via the PXR20D LSI enables remote monitoring, fault diagnosis, and coordinated tripping with SCADA or PLCs. This improves visibility into protective events, supports predictive maintenance, and reduces mean time to repair by accelerating fault isolation in automated facilities.
To ensure compliance, request the formal certification documentation from Eaton and cross-check with your internal procurement and regulatory teams before final acceptance.
Expected ROI stems from enhanced protection reducing unplanned downtime, faster commissioning via rear-terminal wiring, and improved visibility through Modbus RTU integration. The device’s high interrupt rating supports larger loads with fewer protection events, contributing to lower maintenance costs and longer equipment life over the system’s lifetime.
