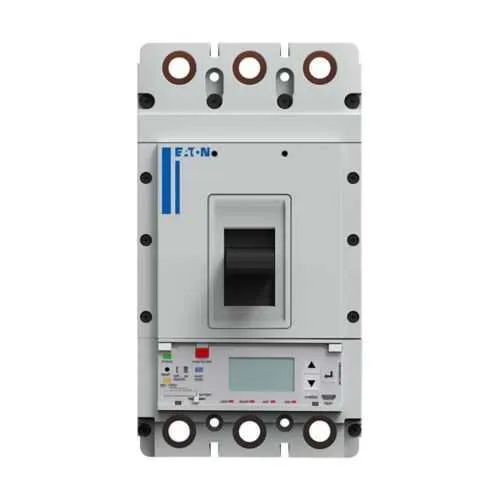

Eaton PDC53K1600E2MM Molded Case Circuit Breaker - 50kA/415V
Part Number: PDC53K1600E2MM
Quick Summary
Power Defense molded case circuit breaker from Eaton protects industrial electrical systems by interrupting fault currents in power distribution panels. Engineers often struggle to balance robust protection with seamless integration into modern control schemes and remote monitoring. Compliances: Contact Manufacturer; in practice, buyers review CE markings, IP ratings, and SIL concepts, with exact details confirmed in Eaton datasheets. By combining a Frame 5 design with a Modbus RTU capable trip unit and relays, this breaker supports scalable protection across panels. Coupled with metric conductor extensions and documented installation guidance, it delivers faster commissioning and predictable lifecycle cost reductions.
Product Information
Extended Description
PDC53K1600E2MM Eaton: Power Defense IEC/CCC, Frame 5, Three Pole, 1600A, 50kA/415V, PXR20 LSI w/ Modbus RTU & Relays, Conductor Extensions-Metric
Product Name
Eaton Power Defense molded case circuit breaker
Catalog Number
PDC53K1600E2MM
UPC
786689399122
Product Length/Depth
470 mm
Product Height
274 mm
Product Width
305 mm
Product Weight
29937 g
Compliances
Contact Manufacturer
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Power Defense Frame 5 Trip Unit How-To Video
Power Defense Frame 5 Trip Unit How-To Video
Power Defense Frame 5 Trip Unit How-To Video
Power Defense Frame 5 Trip Unit How-To Video
Power Defense Frame 5 Trip Unit How-To Video
Power Defense Frame 5 Trip Unit How-To Video
Power Defense Frame 5 Trip Unit How-To Video
Eaton Specification Sheet - PDC53K1600E2MM
Frame 5 three-pole design provides robust high-current protection for heavy motor loads and large distribution panels, enabling a single device to manage substantial fault currents without frequent replacement. The Power Defense platform with 50kA/415V capability delivers reliable short-circuit interruption, supporting safer startup sequences and reduced downtime in demanding industrial environments. The LS I trip unit with Modbus RTU and relays enables remote monitoring, data logging, and easy integration with DCS or SCADA systems, cutting maintenance visits and improving asset visibility. Conductor extensions with metric compatibility simplify field wiring, speeding panel fabrication and reducing wiring errors during installation. Comprehensive documentation and the availability of installation videos further shorten commissioning time, while the device’s sizable frame and weight inform accurate enclosure budgeting and safe handling. This combination yields measurable efficiency gains and improved lifecycle cost management for heavy industry, data centers, and manufacturing lines.
Get a Quick Quote for a Eaton PDC53K1600E2MM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PDC53K1600E2MM?
Enquire Now
FAQs
Plan for a three-pole arrangement with the Frame 5 footprint and ensure proper mounting clearance for the 470 mm length, 305 mm width, and 274 mm height. Use metric conductor extensions as required to match enclosure spacing, and reference the Eaton datasheet and the MCCB installation videos for torque, wiring schemes, and relay configuration steps.
This unit is a 1600A, three-pole molded case circuit breaker with a 50kA short-circuit rating at 415V. It features an LSI trip unit with Modbus RTU and relays, enabling remote monitoring and control integration. It is designed for high-current protection in demanding industrial applications such as motors and process lines.
Yes. The Frame 5, 1600A rating and 50kA/415V capability are appropriate for large motor feeders. The integrated Modbus RTU and relays facilitate remote protection coordination, diagnostics, and instant signaling to control systems, which helps minimize motor-related downtime and supports predictive maintenance strategies.
Compliances for this model are listed as Contact Manufacturer. In practice, verify CE markings, IP considerations, and SIL concepts per your regional requirements by consulting Eaton’s datasheets and the installation manuals to ensure alignment with your project standards.
Modbus RTU with relays enables remote diagnostics, trending, and event logging, reducing on-site visits and accelerating fault diagnosis. This leads to lower maintenance costs, shorter mean time to repair (MTTR), and improved asset utilization, especially in centralized monitoring environments and high-availability facilities.
