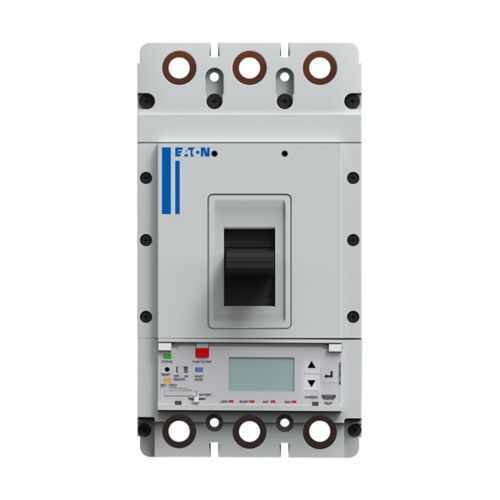

Eaton PDC53K1600E2NR Molded Case Breaker - 50kA/415V
Part Number: PDC53K1600E2NR
Quick Summary
Power Defense molded case circuit breaker protects electrical distribution in industrial facilities. Nuisance trips and arc flash risk often drive costly downtime, but this MCCB helps keep systems online with reliable, robust protection. Compliance and safety details are documented in Eaton's specification sheet—consult the official doc for exact certifications and ratings. Designed for high-current panel protection, it supports rear-terminal installations and fits scalable enclosure footprints, simplifying retrofit and expansion. By integrating with the Power Defense family, you gain improved uptime, safer operations, and lower maintenance costs across manufacturing lines.
Product Information
Extended Description
PDC53K1600E2NR Eaton: Power Defense IEC/CCC, Frame 5, Three Pole, 1600A, 50kA/415V, PXR20 LSI TU, Rear Terminals-Included
Product Name
Eaton Power Defense molded case circuit breaker
Catalog Number
PDC53K1600E2NR
UPC
786689397944
Product Length/Depth
629 mm
Product Height
365 mm
Product Width
387 mm
Product Weight
34927 g
Compliances
Contact Manufacturer
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Eaton Power Defense for superior arc flash safety
Eaton Power Defense for superior arc flash safety
Eaton Power Defense for superior arc flash safety
Eaton Power Defense for superior arc flash safety
Eaton Power Defense for superior arc flash safety
Eaton Power Defense for superior arc flash safety
Eaton Power Defense for superior arc flash safety
Eaton Specification Sheet - PDC53K1600E2NR
Feature: Power Defense molded case circuit breaker with Frame 5, Three Pole, 1600A, and 50kA/415V rating. Business Impact: Delivers high-current protection with a broad short-circuit interrupting capacity, reducing the risk of equipment damage and downtime. Application: Ideal for industrial control panels and power distribution in manufacturing and processing facilities. Feature: Rear terminals included. Business Impact: Eases field wiring and reduces cabinet depth constraints, cutting installation time and labor costs. Application: Retrofit projects and new panel builds where quick, clean connections are essential. Feature: IEC/CCC design intent. Business Impact: Supports cross-regional electrical protection requirements, aiding export readiness and regional compliance. Application: International installations and multi-site facilities. Feature: Large physical footprint with documented dimensions (629 mm depth, 365 mm height, 387 mm width). Business Impact: Enables precise enclosure planning and layout optimization, minimizing footprint surprises. Application: New builds and upgrades in constrained control rooms. Feature: Arc flash safety positioning in the Power Defense lineup. Business Impact: Enhances protective performance and operator safety, contributing to reduced incident costs. Application: Safety-critical motor control and process lines across automation environments.
Get a Quick Quote for a Eaton PDC53K1600E2NR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PDC53K1600E2NR?
Enquire Now
FAQs
The PDC53K1600E2NR is a three-pole, 1600 A MCCB with rear terminals included, designed for straightforward installation in industrial panels. When planning, verify enclosure depth (629 mm) and footprint (387 mm width, 365 mm height) to ensure proper clearances and wiring access. Use the rear-terminal configuration to simplify wiring harness routing and minimize cabinet space changes during retrofit.
This Eaton Power Defense MCCB offers a 50 kA interrupting capacity at 415 V AC, suitable for high-short-circuit environments. The Frame 5, three-pole configuration supports heavy current protection in demanding industrial applications, helping limit fault current and protect downstream equipment.
Yes. With a 1600 A frame and 50 kA at 415 V, the PDC53K1600E2NR provides robust motor and distribution line protection. Its rear-terminal installation and IEC/CCC design intent support integration into rugged control panels commonly found in manufacturing and processing facilities, helping manage inrush and fault conditions effectively.
Certification details are provided in Eaton’s official specification materials. The product references IEC/CCC standards, and the full list of applicable certifications and ratings is available on the Eaton spec sheet for PDC53K1600E2NR. For exact ratings and regional compliance, consult the datasheet or contact Eaton directly.
Power Defense MCCBs are designed for reliable protection with high interrupt capacity and arc flash safety emphasis, reducing unplanned downtime and maintenance costs. The included rear terminals and straightforward wiring speed up installation, while the robust enclosure footprint supports long service life in busy automation environments, delivering a favorable total cost of ownership over time.
