Eaton PF4Q10MPF Quick-Lok Square Outlet Box - NEC/CEC
Part Number: PF4Q10MPF
Quick Summary
Eaton Crouse-Hinds Quick-Lok square outlet box safely houses wiring for switchgear and enclosures in industrial control panels. When installation spaces are tight and knockouts are plentiful, traditional boxes can misalign or leak; this PF4Q10MPF delivers robust mounting and reliable knockouts for consistent, code-compliant wiring. It is designed to meet NEC/CEC standards, rated for Ordinary/Non-Hazardous locations, and carries Canadian certification for expanded regulatory coverage. With 30.3 cubic inches of capacity, welded steel construction, and a bulk pack of 100 that includes a pigtail, this box helps reduce field fittings, speeds installations, and lowers total cost of ownership. Its compatibility with M brackets and Quick-Lok assemblies supports scalable panel builds and future expansions.
Product Information
Extended Description

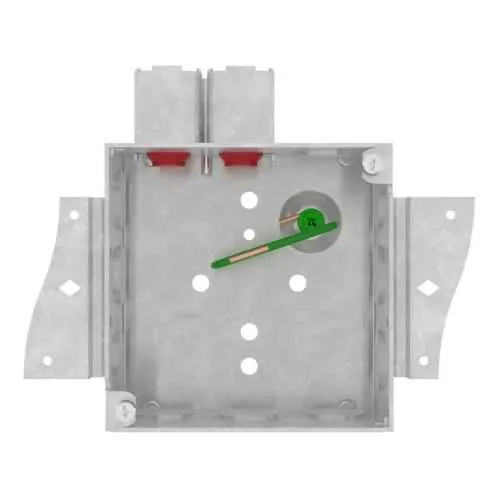

PF4Q10MPF Eaton: Eaton Crouse-Hinds series Quick-Lok 4" square box, (2) 1/2", (2) 1/2"+ 3/4" E bottom KOs, Solid wire, M bkt, 2 cable KOs, Double sided bkt, Welded, 2-1/8" depth, Steel, (6) 1/2", (4) 1/2" + 3/4" E side KOs, Pack of 100, pigtail, 30.3 cu in
Product Name
Eaton Crouse-Hinds series Quick-Lok square outlet box
Catalog Number
PF4Q10MPF
UPC
662277114998
Product Length/Depth
5 in
Product Height
3 in
Product Width
6 in
Product Weight
1.06 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Box size
4"
Capacity
30.3 cubic inch capacity
Depth
2-1/8"
Conduit/cable
AC/MC clamps
Bracket style
M
Construction
Welded
Box ground wire
Solid
Side knockouts
(6) 1/2", (4) 1/2" + 3/4" E side KOs
Bottom Knockouts
(2) 1/2", (2) 1/2"+ 3/4" E bottom KOs
Cable knockouts
2
Configuration
Double sided bracket
Material
Steel
Special features
Bulk pack of 100, includes pigtail
Crouse-Hinds series Quick-Lok Outlet Boxes and Assemblies brochure
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings Canadian certification
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings Canadian certification
Steel Outlet Boxes for Electrical Systems
Steel Outlet Boxes for Electrical Systems
Feature: 4-inch square box with 30.3 cu in capacity and welded steel construction. Impact: Maximizes wiring density while maintaining ground integrity, reducing rework and ensuring long-term reliability. Application: Ideal for control panels and industrial enclosures in non-hazardous environments. Feature: Multiple knockouts including six side knockouts and two bottom knockouts plus E openings. Impact: Enables flexible wiring layouts for AC/MC cables and simplifies field modifications. Application: Common in machine controllers and junction boxes where layout changes occur. Feature: M bracket, double-sided bracket, and welded construction. Impact: Quick alignment and secure mounting cut installation time and drift, improving repeatability. Application: Repeated panel builds across OEM automation lines. Feature: Grounding provisions with solid box ground wire. Impact: Improves safety compliance and reduces grounding issues in harsh environments. Application: All metal enclosures requiring reliable grounding. Feature: Bulk pack of 100 with included pigtail. Impact: Lowers procurement costs, reduces packaging waste, and streamlines stocking for high-volume builds. Application: Large-scale panel fabrication and assembly lines. Feature: NEC/CEC compliance with Ordinary/Non-Hazardous Location rating and Canadian certification. Impact: Minimizes regulatory risk across regions and speeds international projects. Application: Global automation projects and cross-border manufacturing operations.
Get a Quick Quote for a Eaton PF4Q10MPF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PF4Q10MPF?
Enquire Now
FAQs
PF4Q10MPF offers six side knockouts and two bottom knockouts plus E openings, plus two cable knockouts, enabling flexible wiring layouts for AC/MC cables. The M bracket and double-sided bracket support quick alignment and secure mounting, reducing field adjustments and misalignment during panel assembly.
The PF4Q10MPF is designed to comply with NEC/CEC standards and is rated for Ordinary/Non-Hazardous locations. Canadian certification is listed among its regulatory references, supporting cross-border installation by maintaining code compliance in multiple jurisdictions.
Yes. PF4Q10MPF features a double-sided M bracket designed for the Quick-Lok system, enabling fast, repeatable mounting in industrial panels. This compatibility supports scalable installations and reduces alignment variance across multiple boxes in a panel build sequence.
The box is a 4-inch square unit with a 30.3 cubic inch capacity, 2-1/8 inch depth, constructed from welded steel, and includes a solid ground wire. Conduit/cable clamps are compatible with AC/MC cables, and the unit weighs about 1.06 lb, offering durable performance in non-hazardous environments.
Bulk packing (100 units) with an included pigtail reduces procurement and packaging costs, lowers stocking complexity, and speeds large-scale panel builds. This approach minimizes downtime on production lines and improves total cost of ownership for OEMs and contract manufacturers.
