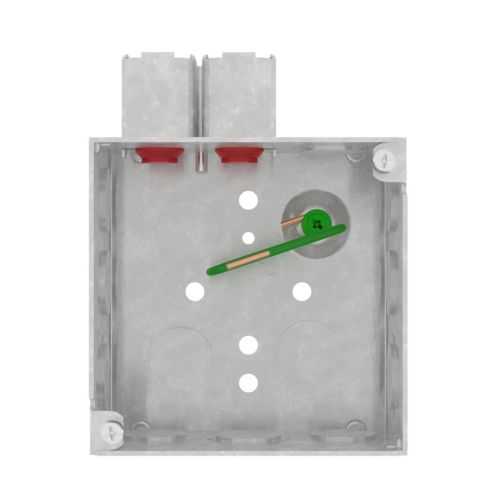

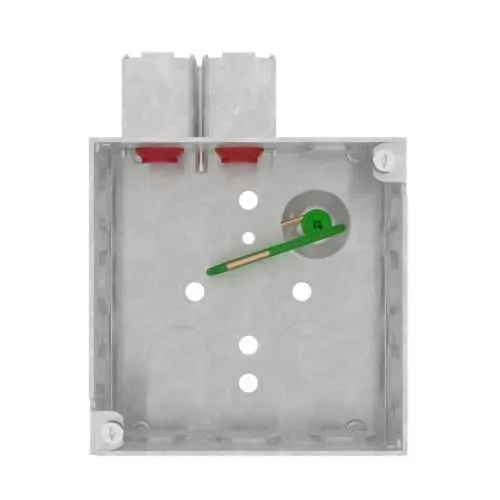

Eaton PF4Q10PF Quick-Lok Square Outlet Box - NEC/CEC
Part Number: PF4Q10PF
Quick Summary
Eaton PF4Q10PF Quick-Lok square outlet box enables rugged, reliable wiring in industrial control panels. Installers often face limited knockout options, grounding reliability concerns, and slow field wiring, which can drive up labor costs. This 4" steel, welded enclosure supports NEC/CEC compliance and UL listings for ordinary locations, with multiple knockouts and a robust ground path. Its bulk-pack Ready-to-use configuration speeds procurement on large projects while maintaining strict safety standards. By combining durable construction with flexible wiring options, the PF4Q10PF delivers dependable performance and a lower total cost of ownership for panel builders and maintenance teams alike.
Product Information
Extended Description
PF4Q10PF Eaton: Eaton Crouse-Hinds series Quick-Lok 4" square outlet box, (2) 1/2", (2) 1/2"+ 3/4" E bottom KOs, Solid wire, 2 cable KOs, Welded, 2-1/8" depth, Steel, (6) 1/2", (4) 1/2" + 3/4" E side KOs, Bulk pack of 100, pigtail, 30.3 cu in
Product Name
Eaton Crouse-Hinds series Quick-Lok square outlet box
Catalog Number
PF4Q10PF
UPC
662277114967
Product Length/Depth
5 in
Product Height
3 in
Product Width
4 in
Product Weight
0.98 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Box size
4"
Capacity
30.3 cubic inch capacity
Depth
2-1/8"
Conduit/cable
AC/MC clamps
Construction
Welded
Box ground wire
Solid
Side knockouts
(6) 1/2", (4) 1/2" + 3/4" E side KOs
Bottom Knockouts
(2) 1/2", (2) 1/2"+ 3/4" E bottom KOs
Cable knockouts
2
Material
Steel
Special features
Bulk pack of 100, includes pigtail
Crouse-Hinds series Quick-Lok Outlet Boxes and Assemblies brochure
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings UL certification
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings UL certification
Steel Outlet Boxes for Electrical Systems
Steel Outlet Boxes for Electrical Systems
Feature: Welded steel construction and 2-1/8" depth provide a rugged enclosure that resists impact and maintains enclosure integrity in busy industrial environments. Business Impact: Reduced field damage and longer service life translate into lower maintenance costs and less downtime. Application: Control panels in manufacturing, packaging lines, and automation racks benefit from a durable 4" square box with reliable grounding. Feature: 30.3 cubic inch capacity supports dense wiring and multiple conductors without compromising organization. Business Impact: Higher wiring density saves panel space and reduces cabinet footprint. Application: High-conductor-count installations for motor starters and I/O modules. Feature: (6) side knockouts and (2) bottom knockouts plus (2) 1/2" and (2) 1/2"+3/4" knockouts at the bottom provide flexible cable management. Business Impact: Faster, versatile wiring layout reduces field modification time and errors. Application: AC/DC power feeds, sensor networks, and PLC wiring. Feature: Conduit/cable clamps and solid box ground wire enable secure, code-compliant terminations. Business Impact: Improved safety and grounding reliability minimize risk of fault currents and electromagnetic interference. Application: Area classifications in ordinary locations; NEC/CEC compliance ensures installation integrity. Feature: Bulk pack of 100 with included pigtail simplifies large-project procurement. Business Impact: Lower unit cost, easier stocking, and faster deployment on multi-panel installations. Application: OEMs and system integrators deploying dozens to hundreds of enclosures.
Get a Quick Quote for a Eaton PF4Q10PF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PF4Q10PF?
Enquire Now
FAQs
PF4Q10PF is designed with multiple knockouts and AC/MC clamps, allowing flexible wiring configurations in control panels. For best results, plan knockout locations to minimize conductor bending and use the included pigtail for a solid ground. The welded steel body supports secure mounting with standard enclosure hardware, reducing rework and speeding commissioning on multi-panel projects.
Yes. PF4Q10PF is a NEC/CEC compliant 4" square outlet box intended for ordinary/non-hazardous locations. Its solid ground wire, welded construction, and standard knockouts support reliable, code-compliant terminations. Always verify local amendments, but this model aligns with common industrial electrical standards for panel wiring and enclosure design.
PF4Q10PF includes AC/MC clamps as the intended conduit entries, ensuring secure, Code-compliant connections. When selecting fittings, match clamp size to conductor count and cable diameter, and ensure knockouts align with your panel layout. The 2-1/8" depth and 30.3 cu in capacity accommodate typical field installs without crowding conductors.
The bulk pack of 100 with an included pigtail reduces procurement logistics and per-unit material costs, while the 4" square footprint and multiple knockouts speed wiring layouts. Welded steel provides durability to minimize rework, and NEC/CEC compliance reduces regulatory risk. Together, these features shorten installation cycles and lower long-term maintenance expenses.
Official documentation includes UL certification pages for 4-Inch Steel Square Outlet Boxes and the Steel Outlet Boxes specification guide from Eaton. The product datasheet PF4Q10PF (PDF) provides dimensions, knockout layouts, and material details. Always consult the latest datasheet and UL/NEC/CEC references to ensure compliance for your application.
