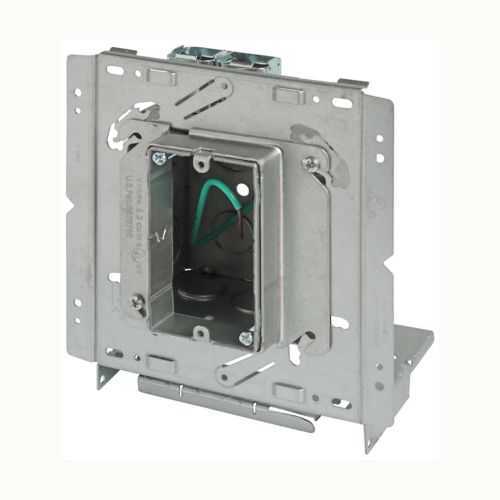

Eaton PFTA4 4Q10AR58 Ruff-IN Assembly - NEC/CEC
Part Number: PFTA4 4Q10AR58
Quick Summary
The Eaton PFTA4 4Q10AR58 Ruff-IN assembly delivers rugged enclosure integration for industrial control panels. Engineers often struggle with coordinating mounting, knockouts, and grounding in tight, code-driven spaces. This Ruff-IN assembly simplifies installation while delivering durable, code-compliant performance. It carries NEC/CEC standards and a NEMA 1 rating, suitable for ordinary/non-hazardous locations, and a welded construction that withstands harsh environments. The 4" box with raised mud ring and built-in clamps reduces field modifications and wiring steps, while the backside support accommodates a wide range of stud configurations. UL certification documentation is available to support your compliance package, helping you reduce contractor risk and improve project timelines.
Product Information
Extended Description
PFTA4 4Q10AR58 Eaton: Eaton Crouse-Hinds series Ruff-IN assembly, 3 bottom KOs, 4" box, Dbl side bkt comp w/ BBT-HF, w/ backside supp for 2-1/2" though 6" studs, 2 clamps, 2 cable KOs, Single-gang 5/8" raised mud ring, Welded, 2-1/8" depth, 3 end KOs, 3 side KOs
Product Name
Eaton Crouse-Hinds series Ruff-IN assembly
Catalog Number
PFTA4 4Q10AR58
UPC
662279192246
Product Length/Depth
7 in
Product Height
7.25 in
Product Width
6.5 in
Product Weight
1.89 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
1
Bracket style
Double sided compatible with BBT-HF, with backside support for 2-1/2" - 6" studs
Stud spacing
16"-24"
Box size
4"
Depth
2-1/8"
Box ground wire
Solid
Configuration
Single-gang 5/8" raised mud ring
Number of gangs
Single-gang
Construction
Welded
Conduit/cable
Integral MC connector
Bracket or nails
Face bracket (1/2" offset)
Built-in clamps
2
Bottom Knockouts
3
Cable knockouts
2
End Knockouts
3
Side knockouts
3
Number of cable pryouts
2
Material
Stamped steel
Crouse-Hinds series Ruff-IN pre-fabricated solutions overview brochure
Ruff-IN Made-to-stock Assemblies UL certification
Ruff-IN Made-to-stock Assemblies UL certification
IF 1591 - Ruff-IN made-to-stock and made-to-order assemblies
Ruff-IN prefabricated assemblies - spec guide form
Feature: Welded stamped steel construction provides enduring durability in demanding environments. Business Impact: Reduces field repairs and maintenance costs while extending panel life. Application: Suitable for rugged industrial control panels where vibration and exposure are concerns. Feature: Integral MC connector and two built-in clamps enable quick, secure mounting. Business Impact: Shortens installation time and improves ground reliability, lowering labor costs. Application: Ideal for new builds and retrofits using MC cables in compact enclosures. Feature: Comprehensive knockout pattern—3 bottom, 3 end, 3 side knockouts plus 2 cable pryouts. Business Impact: Flexible wiring routes and fewer field modifications, accelerating commissioning. Application: Supports diverse conduit configurations and future expandability. Feature: Double-sided bracket with backside support for 2-1/2" to 6" studs and 16"–24" stud spacing. Business Impact: Simplifies alignment and mounting across varied installations, reducing rework. Application: Retrofit projects and multi-panel installations demanding versatility. Feature: Raised mud ring (1/2" offset) and face bracket design. Business Impact: Flush mounting accuracy and improved gasket sealing, reducing ingress and wear. Application: Enclosures in environments where seal integrity matters. Feature: Compliance-ready design with NEC/CEC alignment and NEMA 1 rating. Business Impact: Streamlines regulatory approvals and reduces risk during audits. Application: Panels in ordinary/non-hazardous locations requiring reliable enclosures. These features collectively support faster deployment, lower lifecycle costs, and robust performance in standard industrial settings.
Get a Quick Quote for a Eaton PFTA4 4Q10AR58
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PFTA4 4Q10AR58?
Enquire Now
FAQs
Yes. This Ruff-IN assembly is designed for 16–24 in stud spacing with a double-sided bracket and backside support to accommodate 2-1/2 in to 6 in studs. It features an integral MC connector and built-in clamps for secure mounting, plus 3 bottom, 3 end, and 3 side knockouts for flexible conduit and MC cable routing.
The enclosure is a 4 in box with overall dimensions of approximately 7 in length, 7.25 in height, and 6.5 in width, with a 2-1/8 in depth. Knockouts include 3 bottom, 3 end, and 3 side, plus 2 cable pryouts. It uses a single-gang 5/8 in raised mud ring and welded construction with a solid ground wire.
The PFTA4 4Q10AR58 aligns with NEC/CEC standards and carries a NEMA 1 rating for use in ordinary/non-hazardous locations. UL certification documentation is available to support compliance packages, aiding regulatory approvals for panel installations.
Welded construction provides durability in harsh environments, while the integral MC connector and built-in clamps speed mounting and grounding. The raised mud ring simplifies flush mounting, and the KO pattern supports flexible routing, reducing field modifications and maintenance time over the life of the enclosure.
Refer to Eaton’s Ruff-IN literature and instruction sheets: IF 1591 Ruff-IN instruction sheet, Ruff-IN spec guide form, and the Crouse-Hinds overview brochure. UL certification reports are accessible via the provided links in the product downloads, along with datasheets detailing dimensions and KO configurations.
