Eaton PFTWFA 4Q1075 Ruff-IN Assembly - NEC/CEC
Part Number: PFTWFA 4Q1075
Quick Summary
Eaton Crouse-Hinds Ruff-IN assembly is a rugged, pre-fabricated electrical enclosure system designed for reliable outlet-box mounting in industrial facilities. Engineers often struggle with compatibility across stud spacing, knockout configurations, and mounting alignment in challenging environments. It aligns with NEC/CEC standards, carries a NEMA Rating of 1 for ordinary locations, and is UL-listed for Ruff-IN assemblies. For clients seeking faster installation and consistent performance, the wide-flange telescoping bracket and integrated MC connector streamline field setup. The design also accommodates 3- and 4-gang configurations and supports raised mud rings for better sealing and cable management. This translates to reduced field rework, faster turnarounds, and measurable cost savings over the project lifecycle.
Product Information
Extended Description

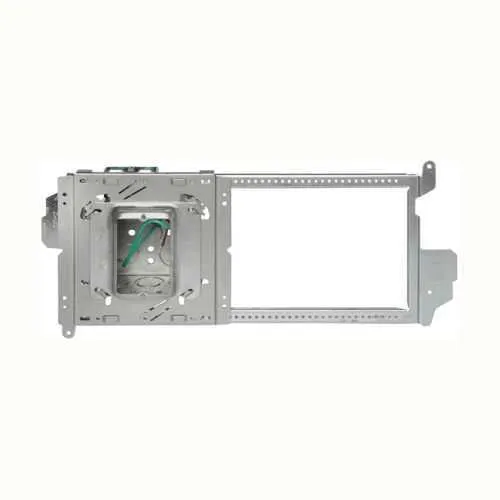

PFTWFA 4Q1075 Eaton: Eaton Crouse-Hinds series Ruff-IN assembly, 3 bottom KOs, 4" box, Wide flange telescoping bkt for 14-1/2" - 25" stud w/ box mtg plate, 2 clamps, 2 cable KOs, Single-gang 3/4" raised mud ring, Welded, 2-1/8" depth, 3 end KOs, 3 side KOs
Product Name
Eaton Crouse-Hinds series Ruff-IN assembly
Catalog Number
PFTWFA 4Q1075
UPC
662279192154
Product Length/Depth
7 in
Product Height
7.25 in
Product Width
17 in
Product Weight
2.43 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
1
Bracket style
Wide flange telescoping open for 14-1/2" - 25" stud spacing with mounting plate
Stud spacing
14-1/2" - 25"
Box size
4"
Depth
2-1/8"
Box ground wire
Solid
Configuration
Single-gang 3/4" raised mud ring
Number of gangs
Single-gang
Construction
Welded
Conduit/cable
Integral MC connector
Bracket or nails
Face bracket (1/2" offset)
Built-in clamps
2
Bottom Knockouts
3
Cable knockouts
2
End Knockouts
3
Side knockouts
3
Number of cable pryouts
2
Material
Stamped steel
Crouse-Hinds series Ruff-IN pre-fabricated solutions overview brochure
Ruff-IN Made-to-stock Assemblies UL certification
Ruff-IN Made-to-stock Assemblies UL certification
IF 1591 - Ruff-IN made-to-stock and made-to-order assemblies
Ruff-IN prefabricated assemblies - spec guide form
Feature → Wide flange telescoping bracket supports 14-1/2" to 25" stud spacing, enabling flexible mounting across varied wall constructions. Business Impact → Reduces the need for multiple box sizes and adapters, cutting installation time and inventory costs. Application → Ideal for retrofit projects and new builds where stud spacing varies by bay or wall assembly. The result is faster commissioning without compromising alignment or code compliance. Feature → 4" box with 3 bottom, 3 end, and 3 side knockouts plus 2 cable pryouts and 2 built-in clamps, plus a single-gang 3/4" raised mud ring. Business Impact → Expands wiring options while maintaining enclosure integrity and protection. Application → Supports MC connector or conduit wiring with clean, organized terminations, reducing field modification time. Feature → Welded stamped steel construction with 2-1/8" depth and face bracket offset for precise mounting. Business Impact → Delivers rugged protection against impact and vibration, improving long-term reliability in harsh environments. Application → Suitable for industrial control panels and rugged electrical installations where durability matters. Feature → Built-in compatibility with NEC/CEC standards and NEMA Rating 1 for Ordinary/Non-Hazardous locations, UL-certified for Ruff-IN assemblies. Business Impact → Ensures regulatory compliance and simplifies audit trails, lowering risk and rework. Application → Ideal for general-purpose indoor facilities, data centers, and machinery rooms requiring proven, safe enclosures. Feature → Overall dimensions 7 in length, 7.25 in height, and 17 in width with a 2.43 lb weight, plus MC connector integration and mounting plate. Business Impact → Lightweight yet sturdy design accelerates handling and installation while preserving rigidity. Application → Fits standard workspaces and reduces shipping and crane/handling costs on site.
Get a Quick Quote for a Eaton PFTWFA 4Q1075
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PFTWFA 4Q1075?
Enquire Now
FAQs
The PFTWFA 4Q1075 uses a wide flange telescoping bracket designed to cover 14-1/2 in through 25 in stud spacing. This flexibility minimizes the need for different box sizes on a single project, speeding installation and reducing inventory. It is ideal for retrofit and new construction where wall framing varies between bays.
The enclosure includes 3 bottom, 3 end, and 3 side knockouts, plus 2 cable pryouts and 2 built-in clamps, along with an integral MC connector and a single-gang raised mud ring. This combination offers versatile wiring routes, easier terminations, and supports both conduit and MC wiring while maintaining a tidy, compliant enclosure.
Yes. The assembly aligns with NEC/CEC standards and carries a NEMA Rating 1 for ordinary/non-hazardous locations. UL listing for Ruff-IN assemblies is provided in Eaton’s certification resources, ensuring compliance for general indoor use in standard industrial environments.
Ruff-IN’s welded, stamped steel construction provides durability while the 2 built-in clamps and raised mud ring enable quicker, secure terminations. The 7 in depth and 7.25 in height with a 17 in width support compact, robust enclosures that install with fewer field adjustments, reducing labor costs and rework.
Choosing Ruff-IN assemblies like PFTWFA 4Q1075 reduces field modifications, speeds wiring and mounting, and lowers commissioning risk. The combined benefits of flexible stud spacing, versatile knockouts, and durable construction translate to faster project completion, lower labor hours, and long-term reliability in non-hazardous indoor environments.
