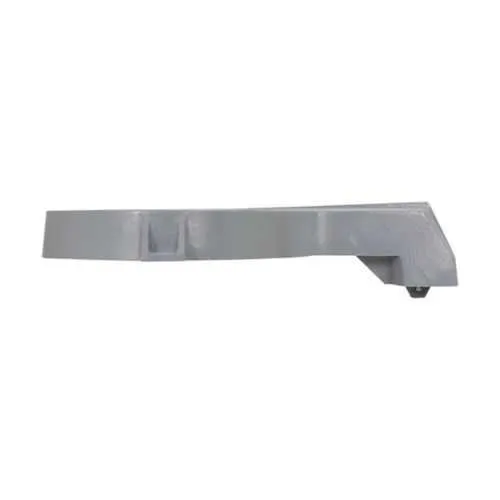

Eaton PM5 Mounting Module - Copper-free Aluminum
Part Number: PM5
Quick Summary
PM5 mounting module by Eaton provides a rugged stanchion straight-mount for Champ VMV luminaires. Engineers often struggle with mounting rigidity and corrosion resistance in demanding environments. The unit supports area classification for Ordinary/Non-Hazardous Locations and pairs with VMV high wattage luminaires, delivering reliable service in harsh industrial spaces. With copper-free aluminum construction, it minimizes maintenance and weight while maximizing durability, improving installation efficiency and total cost of ownership. Designed for practical field use and backed by Eaton documentation, it aligns with common installation practices and ensures compatibility with Champ VMV lighting systems.
Product Information
Extended Description
PM5 Eaton: Eaton Crouse-Hinds series Champ mounting module, Copper-free aluminum, Stanchion straight mount, 1-1/2" trade size, Used with VMV and VMV high wattage series luminaires
Product Name
Eaton Crouse-Hinds series Champ mounting module
Catalog Number
PM5
UPC
782274328324
Product Length/Depth
14.25 in
Product Height
4.87 in
Product Width
13.25 in
Product Weight
4.6 lb
Area classification
Ordinary/Non-Hazardous Locations
Used with
VMV and VMV high wattage series luminaires
Mounting Method
Stanchion straight
Material
Copper-free aluminum
Trade size
1-1/2"
Crouse-Hinds series Champ VMV HID catalog page - 50W-175W
Crouse-Hinds series Champ VMV HID catalog page - 50W-175W
Eaton Specification Sheet - PM5
Feature: Copper-free aluminum construction reduces weight and corrosion risk. Business Impact: Easier handling during installation and lower long-term maintenance costs. Application: Suitable for rugged industrial mounting contexts where corrosion resistance matters. The PM5 supports faster field service and a longer service life for Champ VMV HID setups. Feature: Stanchion straight mounting and 1-1/2" trade size ensure compatibility with Champ VMV HID luminaires. Business Impact: Streamlined procurement and reduced need for adapters or custom hardware. Application: Ideal for overhead or gantry mounting in warehouses and production floors. Feature: Dimensions and weight (14.25 in L, 13.25 in W, 4.87 in H, 4.6 lb) enable accurate space planning. Business Impact: Improves shipping, handling, and mounting precision, lowering installation time. Application: Quick-fit planning for new builds or retrofits with existing VMV luminaires. Feature: Area classification Ordinary/Non-Hazardous Locations. Business Impact: Aligns with typical industrial safety requirements, reducing compliance risk. Application: Widely suitable for non-hazardous industrial spaces and general lighting installs. Feature: Compatibility with VMV and VMV high wattage luminaires. Business Impact: Eliminates the need for multiple mounting solutions, consolidating inventory. Application: Streamlines design and commissioning for HID lighting projects in industrial facilities.
Get a Quick Quote for a Eaton PM5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PM5?
Enquire Now
FAQs
PM5 is designed for use with Eaton's VMV and VMV high wattage luminaires, employing a straight stanchion mount and a 1-1/2" trade size to ensure secure, compatible installations in typical industrial settings.
PM5 uses copper-free aluminum to resist corrosion and reduce weight, improving long-term durability and ease of handling. It is intended for Ordinary/Non-Hazardous Locations, aligning with common industrial safety and performance expectations.
PM5 measures 14.25 inches in length, 13.25 inches in width, and 4.87 inches in height, with an approximate weight of 4.6 pounds, facilitating accurate planning and shipping calculations.
PM5 is specified for Ordinary/Non-Hazardous Locations. The data does not list SIL, CE, or IP ratings for this model; verify project requirements or consult Eaton for any location-specific certifications if needed.
You can access the PM5 specification sheet and Crouse-Hinds Champ VMV catalog pages from Eaton's site, including the PM5 datasheet (PM5.pdf) and VMV HID catalog pages for 50W–175W and high-wattage variants.
