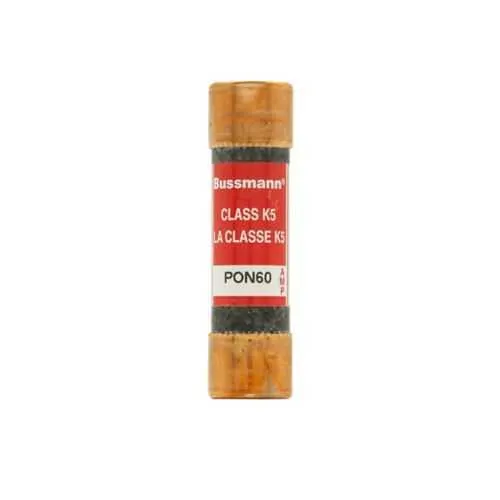

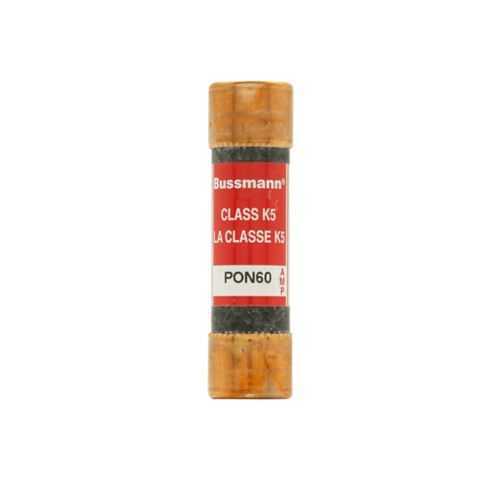

Eaton PON60 Fuse - One-time CSA P, 60 A, 250 V, 10 kAIC
Part Number: PON60
Quick Summary
Eaton PON60 Fuse is a one-time CSA P fuse designed to protect electrical circuits in industrial panels. Engineers often struggle to balance quick fault clearance with easy, reliable replacement in tight panel spaces. This device carries CSA certification and provides a 60 A, 250 V rating with a 10 kAIC interrupt capacity, while its ferrule-end connections simplify field mounting. The compact form factor and standard packaging support scalable deployment across multiple panels, reducing part-number complexity. As part of the Bussmann series, PON60 offers predictable performance with straightforward stocking and cross-reference in your spare-part strategy. Where space and protection reliability matter, PON60 delivers consistent, maintainable results.
Product Information
Extended Description
PON60 Eaton: Eaton Bussmann series one-time CSA type P fuse, One time fuse, 250V, 60A, 10 kAIC at 250 Vac, Non Indicating, Standard code, type P, Ferrule end X ferrule end
Product Name
Eaton Bussmann series PON fuse
Catalog Number
PON60
UPC
051712840477
Product Length/Depth
0.81 in
Product Height
3 in
Product Width
0.81 in
Product Weight
1.2 lb
Warranty
Not Applicable
Compliances
Not Applicable
Amperage Rating
60 A
Interrupt rating
10 kAIC at 250 Vac
Voltage rating
250 V
Packaging type
Standard
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Quantity
10
Special features
One time fuse
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - PON60
Feature → Business Impact → Application: The PON60 is a one-time fuse, which provides clear, definitive protection once a fault occurs and eliminates nuisance re-energization cycles, reducing downtime in critical lines. This directly translates to lower maintenance costs and faster recovery in manufacturing cells and packaging lines. Application: use in industrial control panels where rapid fault isolation is essential and spare parts must be readily available for quick replacement. Feature → Business Impact → Application: With a 60 A, 250 V rating, the fuse protects circuits within common automation loads while avoiding nuisance blows on normal surges, improving overall equipment efficiency and reducing false trips in power-distribution blocks. Application: ideal for motor starters and control circuits that require dependable overload protection. Feature → Business Impact → Application: The 10 kAIC at 250 VAC interrupt capacity ensures high fault-current tolerance, safeguarding upstream transformers and feeders. Application: suitable for dense industrial architectures with elevated fault currents. Feature → Business Impact → Application: Ferrule-end x ferrule-end connections enable straightforward, tool-free insertion into standard Bussmann holders, speeding installation and reducing commissioning time. Application: retrofit and new-panel builds where standard hardware is prevalent. Feature → Business Impact → Application: The compact footprint (0.81 in W, 0.81 in D, 3 in H) and standard packaging (10 pieces) maximize panel density and simplify procurement. Application: high-density control panels and stocking programs. Feature → Business Impact → Application: Non-indicating fuse design minimizes cost while relying on system fault indicators to signal events; compatible with existing maintenance workflows and cross-reference catalogs in industrial environments. Application: routine preventive maintenance and spare-part management. Feature → Business Impact → Application: CSA-type P certification aligns with regional safety requirements; cross-reference with Bussmann catalogs enables easy sourcing and lifecycle planning. Application: regulated facilities and industrial automation deployments.
Get a Quick Quote for a Eaton PON60
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PON60?
Enquire Now
FAQs
Ensure the power is off and the panel is de-energized. Confirm your fuse holder accepts ferrule-end devices and that there is sufficient space for a 0.81 in width by 0.81 in depth and 3 in height device. Insert the ferrule ends into the holder, secure with the existing hardware, and replace any subassemblies. The PON60 is non-indicating and designed for straightforward replacement after a fault.
The PON60 is rated for 60 A at 250 V with an interrupt capacity of 10 kAIC at 250 VAC. This combination provides robust protection in typical industrial panels and aligns with standard Bussmann series holders. Remember, it is a one-time fuse, so select the correct rating for your load to ensure proper overcurrent protection.
Yes, the PON60 is appropriate for many motor control and distribution panel applications that require reliable overcurrent protection up to 60 A. Its compact ferrule-end design, high interrupt rating, and compatibility with standard holders make it a practical choice for dense panels and modular installations in automation environments.
No, the PON60 is a non-indicating fuse. Visual confirmation after a fault requires inspecting the panel or relying on system fault indicators. It ships in standard packaging of ten units, aiding stocking and replacement planning in maintenance operations.
The PON60 carries CSA certification as a one-time CSA P fuse. Documentation includes Eaton/Bussmann catalogs and the specification sheet for PON60, which provides dimensions, terminal type, and packaging details. Always verify regional approvals in the datasheet and cross-reference the Bussmann catalog for compatibility with existing hardware.
