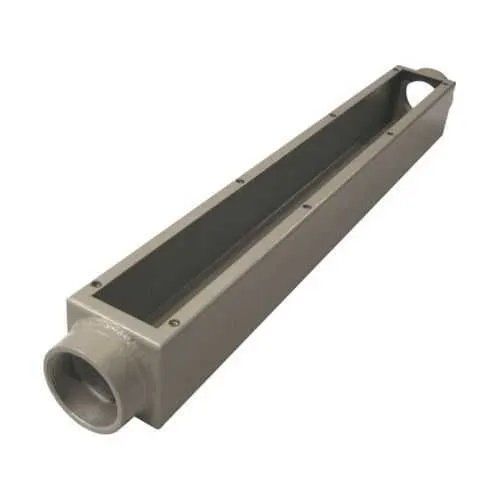

Eaton PPBPS12100TC PTC Pull Box - Ordinary/Non-Hazardous
Part Number: PPBPS12100TC
Quick Summary
The Eaton PPBPS12100TC PTC pull box protects wiring runs in industrial enclosures. Engineers often face tight spaces, corrosion risks, and difficult maintenance when routing cables in control panels. It carries an Ordinary/Non-Hazardous Locations area classification and aligns with standard enclosure practices, with Eaton’s Crouse-Hinds documentation validating its use in general purpose facilities. The 12-inch painted steel, straight pull box supports a 1-inch trade size, enabling straightforward installation and clean cable management. By combining rugged construction with proven Eaton packaging, this solution reduces downtime and total cost of ownership for plant engineers, panel builders, and maintenance teams while fitting neatly into existing enclosures and electrical infrastructure workflows.
Product Information
Extended Description
PPBPS12100TC Eaton: Eaton Crouse-Hinds series PTC pull box, 12" length, Painted steel, Straight, 1" trade size
Product Name
Eaton Crouse-Hinds series PTC pull box
Catalog Number
PPBPS12100TC
EAN
4251510761004
Area classification
Ordinary/Non-Hazardous Locations
Shape
Straight
Material
Painted steel
Enclosure size
12"
Trade size
1"
Feature: The 12 inch enclosure length provides greater cabling capacity and a neater routing path, reducing the need for additional enclosures and speeding up panel assembly. Business Impact: Shorter installation times and lower labor costs during panel builds. Application: Ideal for long cable runs in machine control panels, motor starter cabinets, and general electrical infrastructure. Feature: Painted steel construction delivers robust corrosion resistance and long-term durability in typical industrial environments. Business Impact: Lower replacement frequency and maintenance expenses, supporting predictable capital expenditure. Application: Suitable for manufacturing floors, assembly lines, and interior spaces exposed to moisture or oils. Feature: Straight pull shape simplifies cable entry and exit, minimizing route complexity. Business Impact: Fewer installation errors and faster commissioning, reducing downtime per panel. Application: Common in control cabinets and junction boxes where neat wire organization matters. Feature: 1 inch trade size ensures compatibility with standard conduit fittings and fittings. Business Impact: Improves interoperability with existing electrical infrastructure and simplifies retrofits. Application: Aligns with typical field wiring schemes for machines, conveyors, and automation panels. Feature: Area classification Ordinary/Non-Hazardous Locations aligns with general industrial safety standards. Business Impact: Clear classification supports regulatory compliance without specialized protection for non-hazardous settings. Application: Widely used in non-hazardous floors of manufacturing facilities and process lines. Feature: Documentation and catalog support (Crouse-Hinds series, spec sheets) improves procurement and installation planning. Business Impact: Reduces risk of mis-specification and accelerates supplier handoffs. Application: Procurement teams rely on the catalog page and datasheet for PPBPS12100TC to validate fit and compatibility with existing components.
Get a Quick Quote for a Eaton PPBPS12100TC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PPBPS12100TC?
Enquire Now
FAQs
The PPBPS12100TC is part of Eaton's Crouse-Hinds pull box line, designed to house and protect conductors as they pass through enclosures in control panels. It features a 12-inch length, painted steel body, straight shape, and a 1-inch trade size, making it suitable for non-hazardous areas. It enables tidy cable management, reduces wiring mistakes, and accelerates panel assembly.
Key specifications include catalog number PPBPS12100TC, enclosure size 12 inches, straight configuration, painted steel material, and a 1 inch trade size. It is classified for Ordinary/Non-Hazardous Locations and carries EAN 4251510761004. These details support straightforward selection for standard panel builds and reliable wiring paths.
PPBPS12100TC is designated for Ordinary/Non-Hazardous Locations. There is no listed CE, IP, or hazardous-location certification in the provided data. For environments requiring such ratings, consult Eaton’s datasheet or contact technical support to confirm compatibility or explore alternative models with the needed certifications.
As part of the Crouse-Hinds pull box family, PPBPS12100TC is designed to be compatible with standard Crouse-Hinds accessories and fittings. This ensures seamless integration into existing panel builds, simplifies procurement, and allows reuse of familiar mounting provisions and components across projects.
The 12-inch length and 1-inch trade size enable scalable, tidy wiring routes with fewer boxes and easier retrofits. Painted steel offers durable protection against typical industrial exposure, while the straight pull design accelerates commissioning. Combined with the Ordinary/Non-Hazardous classification and available datasheets, these features support lower downtime, predictable maintenance schedules, and reduced total cost of ownership.
