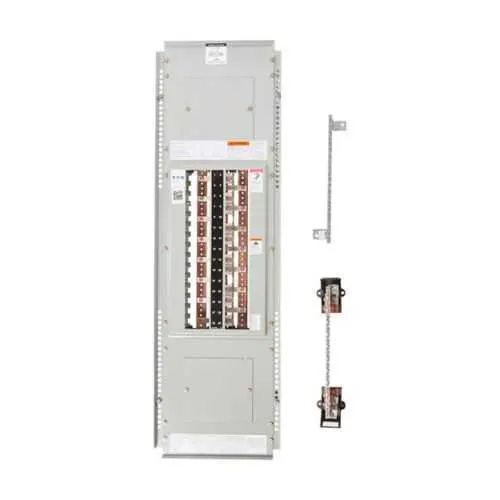

Eaton PRL1X1225X30A Pow-R-Xpress Panelboard - UL 67
Part Number: PRL1X1225X30A
Quick Summary
Pow-R-Xpress Panelboard is a compact, reliable 120/240V distribution solution for industrial control panels. Manufacturers often grapple with space constraints, wiring complexity, and downtime during installation. This panelboard carries UL 67 listing and NEMA compliance, with an aluminum bus, delivering robust safety and long-term performance. With a 225 A rating and 30 circuits in an interior 37 in L x 15 in W x 6 in H footprint, it supports scalable, code-compliant power distribution while enabling faster design and procurement through Eaton's Pow-R-Xpress ecosystem.
Product Information
Extended Description
PRL1X1225X30A Eaton: Eaton PRL1X INTERIOR 120/240V 1P 3W 225A 30 CKT AL BUS
Product Name
Eaton Pow-R-Xpress PRL1X panelboard
Catalog Number
PRL1X1225X30A
UPC
786689362942
Product Length/Depth
37 in
Product Height
6 in
Product Width
15 in
Product Weight
96 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Aluminum
Number of circuits
30
Type
PRL1X INTERIOR
Amperage Rating
225 A
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Line Xpert family overview
Eaton Specification Sheet - PRL1X1225X30A
Feature: Interior panelboard configuration for 120/240V single-phase with 30 circuits and 225 A rating. Business Impact: Enables compact yet scalable distribution that reduces enclosure footprint and supports future expansion without wholesale rewiring. Application: Machine builders and packaging lines seeking reliable, space-efficient power distribution. Feature: Aluminum bus material. Business Impact: Improves thermal performance and corrosion resistance while keeping weight manageable for installers. Application: OEM equipment and factory automation where durability matters. Feature: UL 67 certification and NEMA compliance. Business Impact: Simplifies regulatory approvals and enhances safety margins, reducing risk during audits and commissioning. Application: Industrial facilities and systems with strict safety regimes. Feature: Dimensions and weight (37 in L, 15 in W, 6 in H, 96 lb). Business Impact: Balanced footprint and transportability for field installs and controlled environments. Application: On-site panel upgrades and retrofit projects. Feature: Compatibility with Pow-R-Xpress stocking program and Eaton spec resources. Business Impact: Faster procurement, standardized installations, and access to official data sheets for accurate quoting. Application: Design-build projects and maintenance teams pursuing predictable lead times.
Get a Quick Quote for a Eaton PRL1X1225X30A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL1X1225X30A?
Enquire Now
FAQs
Yes. The PRL1X1225X30A is designed as an interior panelboard in the Eaton Pow-R-Xpress lineup, featuring 120/240V single-phase service, 30 circuits, and a 225 A rating. It aligns with standard mounting footprints and wiring practices within the Pow-R-Xpress ecosystem, enabling faster integration into existing control panel assemblies without major rework.
Key specifications include 120/240V operation, 1P 3W configuration, 225 A amperage rating, and 30 circuit capacity. The panelboard uses aluminum bus material and is UL 67 listed with NEMA compliance. These factors translate to reliable distribution for machines and processes, with clear headroom for future circuit additions and simplified fault isolation.
Ideal for machine-builders, packaging lines, and light industrial applications requiring compact, code-compliant interior panelboards. The combination of a 37 in depth, 15 in width, and 6 in height footprint with 30 circuits supports equipment enclosures in tight spaces while meeting safety standards, making it suitable for OEMs and facilities pursuing standardized, scalable electrical distribution.
The PRL1X1225X30A carries UL 67 certification and is NEMA compliant, providing assurance of electrical integrity, enclosure protection, and wiring safety. Compliance simplifies audits, streamlines procurement for regulated facilities, and supports safer commissioning across industrial environments that require proven, certified power-distribution solutions.
Access to Eaton’s specification sheets and the Pow-R-Xpress stocking program accelerates design, quoting, and procurement, reducing project lead times. The robust certifications, durable aluminum bus, and scalable 30-circuit capacity help minimize retrofit costs, improve maintenance predictability, and optimize life-cycle value for OEMs and maintenance teams.
