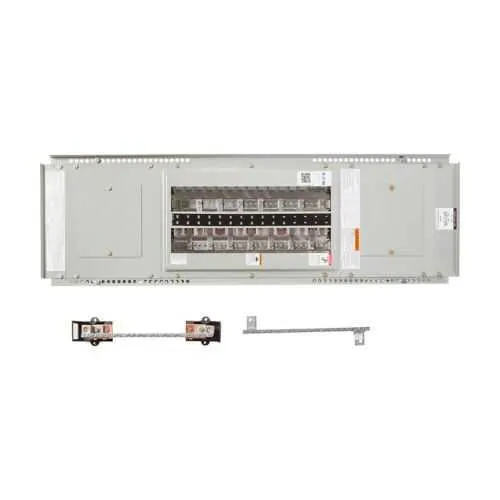

Eaton PRL1X1225X30AS Panelboard - UL 67, 255 A Bus
Part Number: PRL1X1225X30AS
Quick Summary
PRL1X1225X30AS panelboard is a compact interior distribution solution for 120/240 V systems. For engineers, space constraints, rigorous code compliance, and installation time are ongoing challenges, and this unit is designed to address them head-on. It carries UL 67 certification and is NEMA compliant, providing safety and regional conformity for diverse facilities. Built to support reliable, scalable power in manufacturing floors, commercial spaces, and data centers, it also aligns with the Pow-R-Xpress ecosystem to streamline sourcing and integration. In addition to its core specs, this panelboard delivers strong value through its aluminum bus and 225 A rating, helping reduce enclosure crowding while maintaining performance.
Product Information
Extended Description
PRL1X1225X30AS Eaton: EATON POW-R-XPRESS PRL1X INTERIOR 120/240 1P 3W 225A 30 CKT AL BUS NO SFD
Product Name
Eaton Pow-R-Xpress PRL1X panelboard
Catalog Number
PRL1X1225X30AS
UPC
786689877118
Product Length/Depth
31 in
Product Height
5.75 in
Product Width
8 in
Product Weight
59 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Aluminum
Number of circuits
30
Phase
Single-phase
Type
PRL1X INTERIOR
Bus Rating
255 A
Voltage - max
240 V
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Pow-R-Line Xpert family overview
Feature → Business Impact → Application: The PRL1X1225X30AS uses a 255 A aluminum bus and a 240 V maximum, enabling higher load distribution within a compact footprint. This reduces the number of required sections and panels, lowering total system cost while preserving reliability for high-demand applications such as machine control and process panels. Feature → Business Impact → Application: UL 67 certifications and NEMA compliance provide regulatory assurance, reducing risk during audits and facilitating easier approval in facilities with strict safety standards. This suits panel installations in manufacturing lines, hospitals, and data centers that demand strict adherence to electrical codes. Feature → Business Impact → Application: Thirty circuits in a single interior panelboard increase wiring density without sacrificing accessibility, enabling faster installation and easier future expansion in space-constrained environments. It is ideal for small- to mid-size control cabinets and distribution enclosures. Feature → Business Impact → Application: An interior design tailored to 120/240 V single-phase service simplifies integration with existing electrical rooms, enabling rapid commissioning and minimized field modifications. This supports retrofit projects and new builds aiming for predictable lead times. Feature → Business Impact → Application: The Pow-R-Xpress compatibility helps procurement teams standardize on a proven, stockable panelboard family, reducing part variety and inventory costs while ensuring consistent performance across facilities.
Get a Quick Quote for a Eaton PRL1X1225X30AS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL1X1225X30AS?
Enquire Now
FAQs
PRL1X1225X30AS is designed as an interior panelboard for 120/240 V single-phase service, with dimensions of 31 in L x 8 in W x 5.75 in H and a 59 lb weight. It fits standard interior panel enclosures used in commercial and light industrial settings and supports a 30-circuit configuration with a 225 A aluminum bus, enabling retrofit into many existing power-distribution layouts.
The 255 A bus rating provides headroom for concentrated loads typical of machine controls and feeders, while the 240 V max defines the system voltage. For panel design, this combination supports up to 30 circuits within a single interior unit, reducing the need for multiple sub-panels and enabling simpler protection coordination and more efficient wire sizing.
Yes. The PRL1X1225X30AS is explicitly a single-phase interior panelboard, rated for 120/240 V service. With 30 circuits and a robust aluminum bus, it is well-suited for control panels, process skids, and facility distribution where compact footprint and straightforward gangable installation are priorities.
This panelboard carries UL 67 certification and is NEMA compliant, aligning with typical North American electrical safety and installation standards. These certifications simplify approvals during inspections, reduce regulatory risk, and help facilities meet local and national electrical-code requirements across industrial, commercial, and institutional sites.
ROI factors include faster sourcing through the Pow-R-Xpress stocking program, reduced field labor due to faster installations, and lower total parts count by standardizing on a single interior panelboard family. The 30-circuit, 225 A aluminum-bus design supports scalable distribution with predictable lead times and lower maintenance overhead over the panel’s life cycle.
