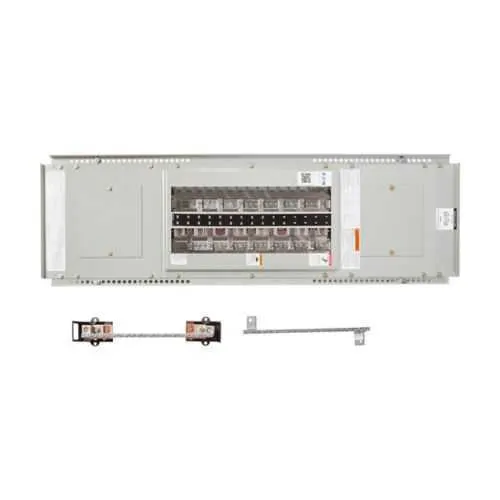

Eaton PRL1X1225X42AS Panelboard - UL 67
Part Number: PRL1X1225X42AS
Quick Summary
Eaton PRL1X1225X42AS panelboard delivers reliable interior distribution for 120/240 V single‑phase systems in compact 42‑circuit form. For engineers and procurement teams, the challenge is balancing space, safety, and future expandability in a crowded electrical room. This solution offers UL 67 certification and NEMA compliance, reinforcing safety and performance while leveraging an aluminum bus for dependable, long-term service. The 225 A rating aligns with mid‑size load centers, and the 37 in long footprint fits tight wall spaces. As part of the Pow-R‑Xpress family, it pairs with Eaton installation accessories to streamline ordering, stocking, and on‑site deployment—reducing lead times and total cost of ownership.
Product Information
Extended Description
PRL1X1225X42AS Eaton: Eaton PRL1X INTERIOR NO TFL 120/240 1P 3W 225A 42 CKT AL BUS
Product Name
Eaton Pow-R-Xpress PRL1X panelboard
Catalog Number
PRL1X1225X42AS
UPC
786689362966
Product Length/Depth
37 in
Product Height
6 in
Product Width
15 in
Product Weight
28 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Aluminum
Number of circuits
42
Type
PRL1X INTERIOR
Amperage Rating
225 A
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Line Xpert family overview
Eaton Specification Sheet - PRL1X1225X42AS
Selling Policy 25-000 - Distribution and Control Products and Services
Eaton Pow-R-Xpress PRL1X1225X42AS panelboard features an interior PRL1X configuration with 120/240 V single‑phase service and a 225 A amperage rating. This translates to a clear business impact: efficient, scalable power distribution that supports growing loads without replacing the entire panel. In practice, 42 circuits enable modular circuit planning for lighting, receptacle banks, and small motors, improving organization and fault isolation in commercial spaces. The aluminum bus is lightweight yet robust, offering corrosion resistance and easier field handling during install and maintenance. UL 67 certification and NEMA compliance provide essential regulatory peace of mind, helping meet industry standards and owner specifications. With a 37 in length, 15 in width, and 6 in height footprint, it fits compact electrical rooms while maintaining ample wiring space. Compatibility with the Pow-R‑Xpress stocking program accelerates procurement and reduces on-site labor, delivering faster commissioning and a lower total cost of ownership.
Get a Quick Quote for a Eaton PRL1X1225X42AS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL1X1225X42AS?
Enquire Now
FAQs
The PRL1X1225X42AS uses aluminum bus and is designed as an interior panelboard compatible with Eaton Pow-R-Xpress accessory families. Its 42‑circuit arrangement and 225 A rating support straightforward integration into existing electrical rooms, while the interior PRL1X configuration simplifies wiring access and front‑mounted terminations for faster commissioning.
Key specs include 120/240 V single‑phase service, 1P 3W configuration, 225 A amperage rating, 42 circuits, and an interior PRL1X design. It features aluminum bus, a 37 in depth, 15 in width, and 6 in height footprint, with a weight around 28 lb. It is UL 67 listed and NEMA compliant for safety and code compliance.
Yes. The PRL1X1225X42AS is UL 67 certified and NEMA compliant, providing essential safety, performance, and regulatory assurance for commercial and light industrial installations. These certifications support compliance with local codes and owner specifications during procurement and installation.
This interior panelboard is well suited for light to medium commercial spaces, offices, retail, and small facilities requiring reliable 120/240 V distribution. Its 225 A rating and 42 circuits accommodate typical lighting, receptacle, and small motor loads, while the compact 37 x 15 x 6 in footprint helps conserve electrical room real estate.
The aluminum bus reduces weight during handling and maintenance, while UL 67 and NEMA compliance minimize regulatory risk. The 42‑circuit arrangement supports modular expansion without full panel replacement. Coupled with Eaton’s Pow-R‑Xpress stocking program, procurement is faster, commissioning is quicker, and overall lifecycle costs are lowered through predictable, scalable performance.
