Eaton Pow-R-Xpress PRL1X1225X42C Panelboard - UL 67 Certified
Part Number: PRL1X1225X42C
Quick Summary
Pow-R-Xpress PRL1X1225X42C panelboard is a compact interior power distribution solution designed for industrial control panels. Engineers often wrestle with limited workspace, dense wiring, and strict safety requirements in high-cycle environments. This unit is UL 67 certified and NEMA compliant, offering 225 A with 42 copper bus circuits to deliver reliable, scalable distribution. By consolidating 120/240 V single-phase service in a single enclosure, it reduces footprint while simplifying wiring diagrams. With its rigid construction and clear labeling, maintenance becomes predictable, and future upgrades or expansion can be handled with minimal downtime. Complementary features on the PRL1X1225X42C reinforce efficiency and cost containment in modern control systems.
Product Information
Extended Description
PRL1X1225X42C Eaton: Eaton PRL1X INTERIOR 120/240 1P 3W 225A 42 CU BUS
Product Name

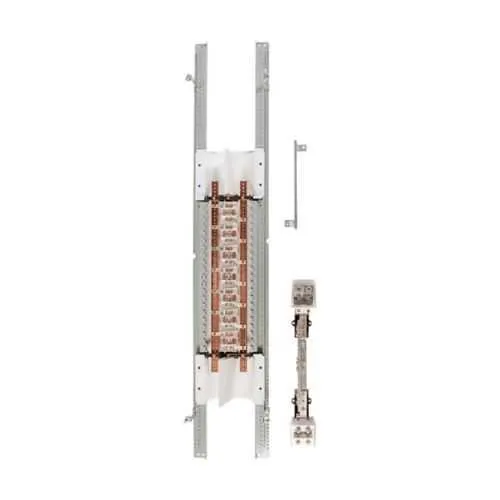

Eaton Pow-R-Xpress PRL1X panelboard
Catalog Number
PRL1X1225X42C
UPC
786689362997
Product Length/Depth
49 in
Product Height
6 in
Product Width
15 in
Product Weight
112 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Copper
Number of circuits
42
Type
PRL1X INTERIOR
Amperage Rating
225 A
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Line Xpert family overview
Eaton Specification Sheet - PRL1X1225X42C
Feature: Amperage rating and circuit density. The PRL1X1225X42C is rated for 225 A with 42 circuits, enabling substantial loads within a single interior panelboard. This high-density configuration reduces the number of enclosures required on a production line and streamlines wiring diagrams, resulting in faster commissioning and lower installation labor. Applications include industrial control panels, packaging lines, and automated manufacturing cells where space and reliability matter. Feature: Copper bus and low-resistance path. With copper bus material, the panelboard delivers superior conductivity and mechanical durability. The 42-circuit copper bus configuration minimizes voltage drop and improves thermal performance under heavy switching, supporting longer service life in demanding environments. This translates to fewer maintenance cycles and predictable performance for critical loads such as drives, motors, and PLC I/O cabinets. Feature: Physical footprint and enclosure dimensions. The unit measures 49 in L, 6 in H, and 15 in W, providing a compact footprint suitable for tight control rooms and cabinet spaces. The interior design supports straightforward mounting and field wiring, accelerating setup. When upgrading legacy panels, this size balance can simplify retrofits and reduce structural changes. Feature: Certifications and compliance. UL 67 certification and NEMA compliance ensure the PRL1X1225X42C meets essential safety and performance standards for power distribution in commercial and industrial settings. These certifications help speed regulatory approvals, reduce the risk of non-compliance fines, and provide a solid baseline for audits and maintenance planning. Feature: Installation compatibility and program support. As an interior PRL1X series panelboard, it aligns with Eaton's Pow-R-Xpress stocking program, supporting availability and rapid procurement for project deadlines. It integrates with standard 120/240 V single-phase service, 1-phase 3-wire configurations, enabling straightforward field wiring, plug-and-play compatibility with common feeders, and scalable upgrades as loads grow.
