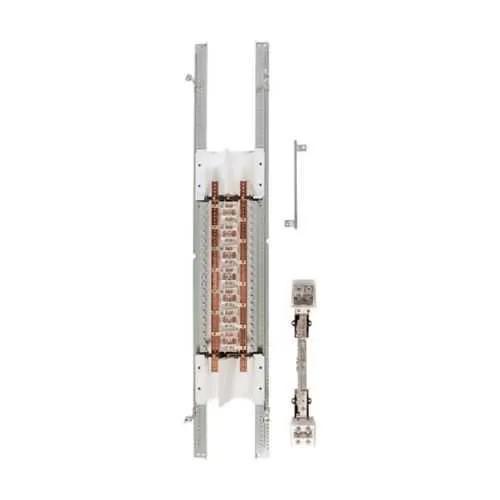

Eaton PRL1X1225X42CS Panelboard - UL 67 Certification
Part Number: PRL1X1225X42CS
Quick Summary
Eaton PRL1X1225X42CS panelboard is an interior power distribution solution for commercial and light-industrial facilities. When space, wiring management, and compliance drive a project, this unit helps cut installation time and reduce risk. It is UL 67 listed and NEMA compliant, with a copper bus designed for long-term durability. Featuring 42 circuits and a 225 A rating, it scales from feeders to main service panels while integrating with the Pow-R-Xpress ecosystem. Compact dimensions and a practical footprint support reliable, code-compliant power distribution without unnecessary enclosure changes or field modifications.
Product Information
Extended Description
PRL1X1225X42CS Eaton: Eaton PRL1X INTERIOR NO TFL 120/240 1P 3W 225A 42 CKT CU BUS
Product Name
Eaton Pow-R-Xpress PRL1X panelboard
Catalog Number
PRL1X1225X42CS
UPC
786689362973
Product Length/Depth
43.5 in
Product Height
6.25 in
Product Width
18.5 in
Product Weight
30 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Copper
Number of circuits
42
Type
PRL1X INTERIOR
Amperage Rating
225 A
Pow-R-Xpress quick selector reference guide
Pow-R-Xpress quick selector reference guide
Pow-R-Xpress quick selector reference guide
Pow-R-Line Xpert family overview
Eaton Specification Sheet - PRL1X1225X42CS
Feature: Interior Pow-R-Xpress design with copper bus → Business impact: Enhanced durability and lower contact resistance translate to improved reliability and reduced maintenance. Application: Ideal for commercial and light-industrial electrical rooms requiring dependable 42-circuit distribution. Feature: 225 A amperage rating → Business impact: Supports higher load demands in one enclosure, reducing the need for multiple subpanels and speeding up project timelines. Application: Main feeders and service panel configurations in mid-size facilities. Feature: 120/240 V single-phase 3-wire configuration → Business impact: Versatile power delivery for lighting, controls, and receptacle circuits with straightforward integration. Application: Control panels, HVAC integrations, and lighting distribution in offices and plants. Feature: UL 67 certification and NEMA compliance → Business impact: Regulatory acceptance reduces project risk and expedites approvals. Application: Environments requiring strict electrical safety and compatibility with national standards. Feature: 42 circuits in a 43.5 in x 18.5 in x 6.25 in footprint → Business impact: Large circuit capacity in a compact footprint enables efficient space planning and simpler enclosure interfaces. Application: Wall-mount or recessed interiors in mechanical rooms and electrical closets. Feature: Copper bus construction → Business impact: Improved conductivity and durability support longer service life and reduced downtime. Application: Critical power paths in manufacturing or data-center-adjacent panels.
Get a Quick Quote for a Eaton PRL1X1225X42CS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL1X1225X42CS?
Enquire Now
FAQs
The PRL1X1225X42CS is designed as an interior panelboard with a compact footprint suitable for standard electrical enclosures in commercial and light-industrial settings. Its 43.5 in depth, 18.5 in width, and 6.25 in height align with typical enclosure cutouts, enabling straightforward mounting, wiring access, and integration with Pow-R-Xpress accessories. When planning mounts, verify enclosure clearance, wiring gutters, and terminal access to simplify field connections and commissioning.
Key specs include 120/240 V operation, single-phase 3-wire arrangement, 225 A amperage rating, and 42 circuits. The panelboard uses copper bus material for reliable conductivity, is UL 67 listed, and is designed for interior power distribution in controlled environments. These details inform feeder sizing, protection coordination, and enclosure selection.
Yes. With 225 A capacity, 42 available circuits, and copper bus construction, this panelboard supports multiple control panels, lighting circuits, and small-to-mid-size feeders typical in commercial buildings and light-industrial facilities. Its interior design and compatibility with Pow-R-Xpress components help streamline layout planning, wire management, and future expansion.
The panelboard is UL 67 listed and NEMA compliant, indicating adherence to critical safety, performance, and wiring standards. These certifications reduce regulatory risk, facilitate project approvals, and ensure compatibility with other approved components in electrical installations.
Copper bus construction and a robust interior design contribute to lower contact resistance and longer service life, reducing downtime and maintenance costs. The 42-circuit capacity in a compact frame simplifies future expansion and replacement planning, delivering predictable lifecycle costs and faster return on investment for facility upgrades.
