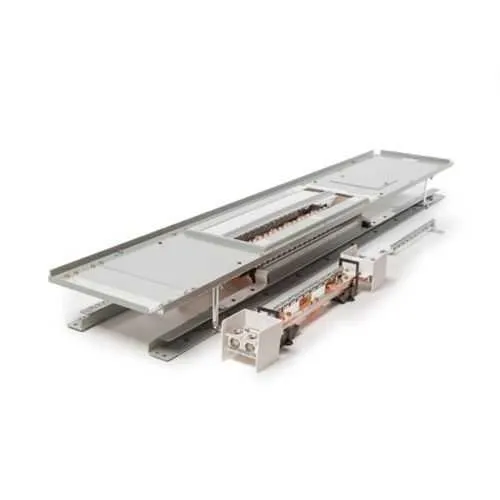

Eaton PRL1X1225X60AS Panelboard - NEMA Compliant UL 67
Part Number: PRL1X1225X60AS
Quick Summary
Eaton PRL1X1225X60AS panelboard provides reliable interior power distribution for commercial and light industrial electrical rooms. Facility managers often struggle with space constraints and long procurement cycles, delaying critical projects. UL 67 certification and NEMA compliance provide safety and code-compatibility benchmarks for interior installations. Designed for compatibility with Eaton's Pow-R-Xpress stocking program, this panelboard supports scalable layouts and straightforward upgrades, helping reduce lead times and total cost of ownership. With a 225 A rating and aluminum bus, it balances performance with installability for growing facilities.
Product Information
Extended Description
PRL1X1225X60AS Eaton: Eaton Pow-R-Xpress PRL1X INTERIOR, 120/240V, 1PH 3W, 225A, 60 CKT, AL BUS, SHORT INTERIOR
Product Name
Eaton Pow-R-Xpress PRL1X panelboard
Catalog Number
PRL1X1225X60AS
UPC
786689671655
Product Length/Depth
49 in
Product Height
6.5 in
Product Width
8.5 in
Product Weight
77 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Aluminum
Type
PRL1X INTERIOR
Amperage Rating
225 A
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Pow-R-Line Xpert family overview
Eaton Specification Sheet - PRL1X1225X60AS
Feature: 225 A amperage rating and 60-circuit capacity; Business Impact: enables centralized distribution for medium loads, reducing the need for multiple smaller panels and simplifying protection schemes; Application: ideal for office complexes, light manufacturing lines, and facility lighting control. Feature: 120/240 V, single-phase, 3-wire configuration; Business Impact: standard power delivery that matches common commercial and light industrial loads, supporting faster commissioning; Application: interior panelboard deployments in electrical rooms. Feature: aluminum bus material; Business Impact: lighter weight reduces shipping, handling, and field labor while maintaining mechanical durability; Application: easier retrofits and safer installation in constrained spaces. Feature: UL 67 certification and NEMA Compliant; Business Impact: ensures safety, reliability, and code compliance across installations; Application: essential for regulated environments and OEM integration. Feature: compact exterior dimensions (49 in L, 6.5 in H, 8.5 in W) and 77 lb weight; Business Impact: fits standard enclosures and minimizes structural changes; Application: retrofit projects and new builds where space is at a premium. Feature: Pow-R-Xpress stocking program compatibility; Business Impact: faster procurement and reduced downtime; Application: project schedules with tight deadlines and frequent component substitutions.
Get a Quick Quote for a Eaton PRL1X1225X60AS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL1X1225X60AS?
Enquire Now
FAQs
The PRL1X1225X60AS is designed as an interior panelboard compatible with Eaton's Pow-R-Xpress stocking program. Its 120/240V, single-phase, 3-wire configuration and 225 A rating align with common commercial installations. With 60 circuit capacity and aluminum bus, it integrates into existing layouts without requiring major rework, while UL 67 certification and NEMA compliance help ensure code-aligned, safe field deployment.
Key specs include 120/240V operation, single-phase 3-wire configuration, 225 A amperage rating, 60 circuits, aluminum bus, 49 inch length, 8.5 inch width, 6.5 inch height, and a weight of 77 lb. Certifications include UL 67 and NEMA compliance, making it suitable for interior power distribution in commercial and light industrial environments.
Yes. Classified under Lighting & Emergency Systems, this interior panelboard supports centralized distribution for lighting and small-motor loads. Its 225 A capacity and 60 circuits provide scalable protection and metered control, while UL 67 and NEMA compliance ensure safety and regulatory alignment for everyday operations in commercial buildings and light industrial spaces.
This panelboard is UL 67 listed and NEMA compliant, ensuring safety, reliability, and adherence to industry standards for interior electrical installations. These certifications simplify code approvals and support robust performance in demanding environments.
Using PRL1X1225X60AS with the Pow-R-Xpress stocking program reduces procurement lead times and minimizes downtime during upgrades or expansions. The aluminum bus lowers weight and simplifies handling, while 225 A capacity reduces the need for early upsizing. Together, these factors translate to faster project completion, fewer field rewires, and lower lifecycle maintenance costs.
