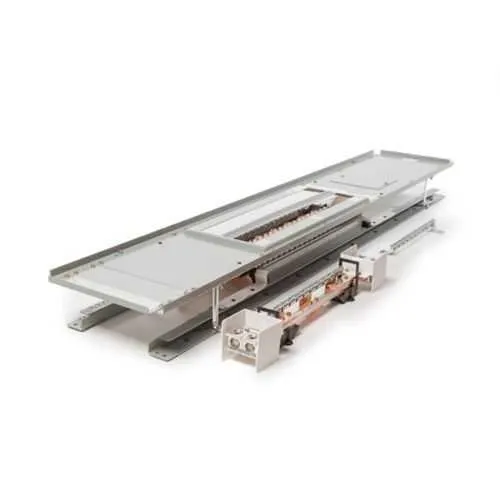

Eaton Pow-R-Xpress PRL1X1225X60C Panelboard - UL 67 Certification
Part Number: PRL1X1225X60C
Quick Summary
Pow-R-Xpress PRL1X1225X60C panelboard distributes 120/240V power for commercial and light industrial applications. In busy electrical rooms, space constraints and complex wiring can slow commissioning and increase maintenance risk; this unit's long interior design simplifies feeder planning and labeling. It carries UL 67 certification and is NEMA compliant, providing documented safety and interoperability in regulated environments. The copper bus and 225 A rating support reliable, scalable distribution while meeting code requirements. For engineers focused on efficiency and uptime, this panelboard pairs a robust footprint with easy installation and future expansion potential. Designed for lasting performance in industrial environments, it supports streamlined maintenance, faster circuit tracing, and compliant documentation for audits.
Product Information
Extended Description
PRL1X1225X60C Eaton: Eaton Pow-R-Xpress PRL1X INTERIOR, 120/240V, 1PH 3W, 225A, 60 CKT, CU BUS, LONG INTERIOR
Product Name
Eaton Pow-R-Xpress PRL1X panelboard
Catalog Number
PRL1X1225X60C
UPC
786689671648
Product Length/Depth
61 in
Product Height
6.5 in
Product Width
8.5 in
Product Weight
95 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Copper
Type
PRL1X INTERIOR
Amperage Rating
225 A
Pow-R-Xpress quick selector reference guide
Pow-R-Xpress quick selector reference guide
Pow-R-Xpress quick selector reference guide
Pow-R-Line Xpert family overview
Eaton Specification Sheet - PRL1X1225X60C
Feature: 225 A rating with 60 circuit capacity enables centralized feeder distribution and room for growth. Business Impact: Reduces the need for mid-project panel upsizing and minimizes downtime during expansion. Application: Ideal for facilities that anticipate load growth in commercial and light industrial settings. Feature: Long interior interior dimension of 61 in with a compact footprint (6.5 in high, 8.5 in wide) improves wiring density control. Business Impact: Easier conductor routing, labeling, and access for field service; accelerates commissioning. Application: Retrofit projects or new builds in restricted electrical rooms. Feature: Copper bus material delivers low resistance current paths and high reliability. Business Impact: Enhanced efficiency, reduced heat rise, and longer service life under steady or peak loads. Application: Critical feeder circuits for lighting and motors in 120/240V distribution schemes. Feature: UL 67 listing and NEMA compliance validate safety, performance, and code readiness. Business Impact: Streamlines regulator and inspector approvals, reducing risk of delays and non-compliance penalties. Application: Widely adopted for indoor panel installations in regulated facilities. Feature: Part of the Pow-R-Xpress family with accessible datasheets and quick selector guides. Business Impact: Shortens specification and procurement cycles, enabling faster project execution. Application: Engineering teams leveraging Eaton’s reference materials for accurate configuration and installation planning. Feature: Interior panelboard design supports straightforward maintenance and future expansion. Business Impact: Simplifies fault tracing and circuit additions without major rewiring. Application: Facilities pursuing straightforward upgrades and ongoing energy management.
Get a Quick Quote for a Eaton PRL1X1225X60C
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL1X1225X60C?
Enquire Now
FAQs
The PRL1X1225X60C is designed for indoor indoor installations with a copper bus and 225 A rating. When installing, ensure adequate clearance for front access, proper enclosure mounting, and compliance with UL 67 requirements. Plan wiring routes to accommodate the 61 in interior depth and label circuits clearly for future maintenance and audits.
A 225 A main rating supports centralized feeder distribution for up to 60 circuits, enabling you to allocate loads efficiently across lighting, control, and receptacle circuits. When designing feeders, size conductors for 225 A and account for simultaneous loading while maintaining adequate spare capacity for future expansion, all within the NEMA-compliant interior.
The PRL1X1225X60C is UL 67 listed and NEMA compliant for interior electrical distribution, which typically implies dry, indoor environments. It is not specified for hazardous or damp locations. For such environments, consult hazardous-location ratings and consider enclosure seismics or additional protection to meet code requirements.
This panelboard carries UL 67 certification and is NEMA compliant, which are the primary certifications authorities review for safety and performance in electrical distribution. These listings support acceptance by inspectors and accreditation bodies, reducing risk during audits and project handovers.
Maintenance benefits come from the long interior for easier wiring, labeling, and access to spares, along with a copper bus offering durable current paths and reduced heat. The 60-circuit capacity supports future expansion without enclosure replacement, delivering lower lifecycle costs and faster return on investment through improved uptime and streamlined service.
