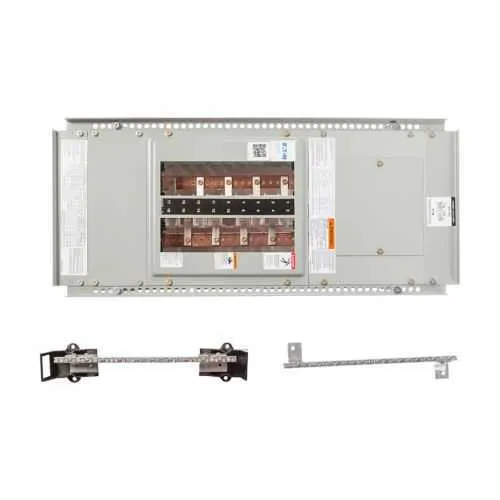

Eaton PRL1X3225X18CS Pow-R-Xpress Panelboard - UL 67
Part Number: PRL1X3225X18CS
Quick Summary
Pow-R-Xpress panelboards provide interior power distribution for 208/120V three-phase systems. For engineers facing crowded equipment rooms and tight installation schedules, this 18-circuit panelboard balances footprint with capacity. It carries UL 67 certification and is NEMA compliant, offering reliability in demanding electrical environments. With copper bus and a 225 A rating, it supports scalable distribution while keeping wiring organized. Compact dimensions and detailed technical resources simplify procurement and installation, delivering long-term operational efficiency.
Product Information
Extended Description
PRL1X3225X18CS Eaton: EATON POW-R-XPRESS PRL1X INTERIOR 208/120 3P 4W 225A 18 CKT CU BUS NO SFD
Product Name
Eaton Pow-R-Xpress PRL1X panelboard
Catalog Number
PRL1X3225X18CS
UPC
786689877064
Product Length/Depth
25 in
Product Height
5.75 in
Product Width
8 in
Product Weight
19 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Copper
Number of circuits
18
Phase
Three-phase
Type
PRL1X INTERIOR
Bus Rating
255 A
Voltage - max
240 V
Pow-R-Xpress quick selector reference guide
Pow-R-Xpress quick selector reference guide
Pow-R-Xpress quick selector reference guide
Pow-R-Line Xpert family overview
Compact interior footprint improves install versatility and reduces enclosure footprint in space-constrained facilities. The 25 in L x 8 in W x 5.75 in H enclosure enables easier retrofits and wall-mount configurations, lowering enclosure costs and accelerating deployment in commercial and light industrial spaces. The copper bus material provides low resistance and superior heat dissipation, translating to improved efficiency and reliability for high-load circuits and future expansion plans. With 18 available circuits and a three-phase 208/120V (max 240V) configuration, you can confidently distribute power to machines, controls, and feeders without oversizing equipment. A 255 A bus rating supports peak loads while preserving a compact form factor, reducing wiring complexity and space requirements. Compliance with UL 67 and NEMA standards reduces risk and streamlines procurement for regulated projects. At 19 lb, the unit is relatively easy to handle during installation and servicing, speeding up field work. Resource availability, including Pow-R-Xpress quick selector guides and program brochures, aids in rapid selection and accurate quoting.
Get a Quick Quote for a Eaton PRL1X3225X18CS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL1X3225X18CS?
Enquire Now
FAQs
To install the PRL1X3225X18CS interior panelboard, verify the enclosure supports 208/120V three-phase systems and fits an 18-circuit configuration. Ensure copper bus connections are tightened to spec, mount in a compliant enclosure, and follow UL 67/NEMA guidelines. Use the provided installation resources to simplify wire routing and maintain a tidy, accessible field wiring setup.
Key specs include 208/120V three-phase operation, 18 circuits, copper bus, 255 A bus rating, and a maximum voltage of 240 V. The panel is 25 in long, 8 in wide, and 5.75 in high with a weight of about 19 lb, designed for interior use and UL 67 safety certification.
Yes. The PRL1X3225X18CS is designed for interior electrical distribution in commercial and light-industrial environments, offering 18 circuit capacity in a compact footprint. Its three-phase 208/120V configuration and copper bus support reliable machine and control feeders, with UL 67 and NEMA compliance ensuring appropriate safety for regulated facilities.
The panelboard is UL 67 listed and NEMA compliant, indicating it meets recognized safety and performance standards for low-voltage panelboards and interior distribution equipment. These certifications support regulatory acceptance and reduce tenders’ compliance risk during procurement.
Maintenance is typically minimal due to solid-state and mechanical reliability, with copper bus reducing resistance and heat buildup over time. ROI is enhanced by compact installation, fewer wiring complications, and faster field service. Availability of quick selector guides and program brochures helps optimize procurement and post-sale support.
